BERNSTEIN Tools for Electronics 9-281 Vice base 9-281

Metal switch with a lever on the side and the inscription 'BERNSTEIN' on the front.

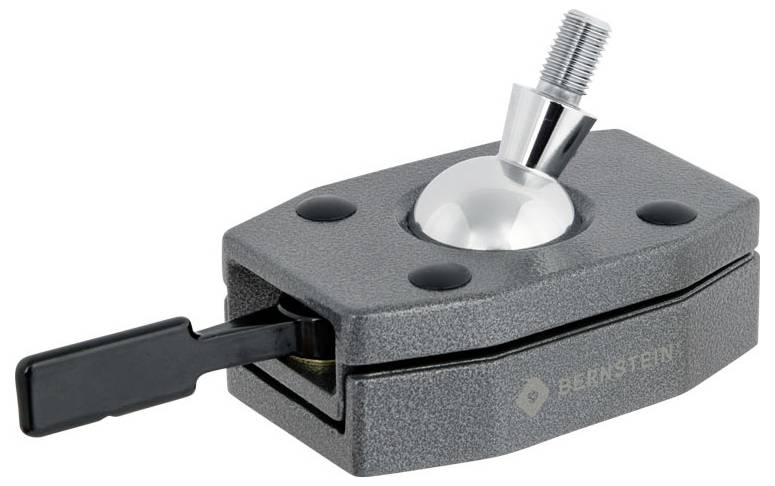

Metal ball joint clamp fixture with a threaded stud and side lever, shown in a product photo on a white background.

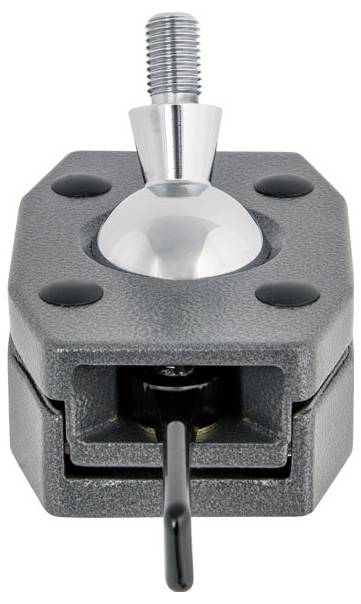

Metal clamp with threaded bolt and central cone, showing a front cable entry slot and four mounting holes on a gray block.

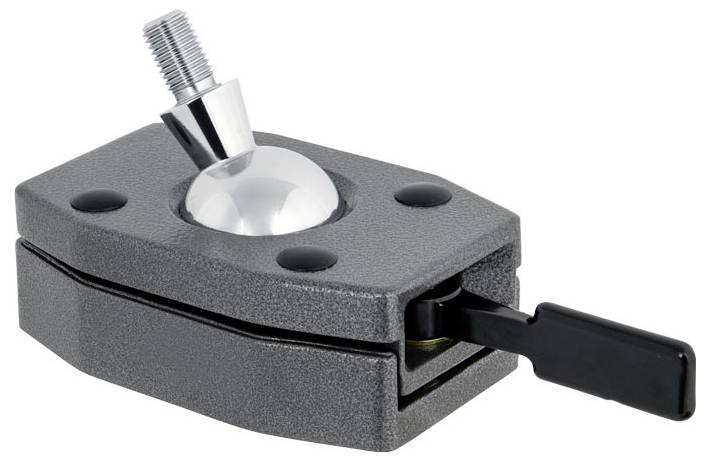

Metallic ball-and-socket clamp with a threaded bolt and black lever handle, used to tighten and hold equipment in place.

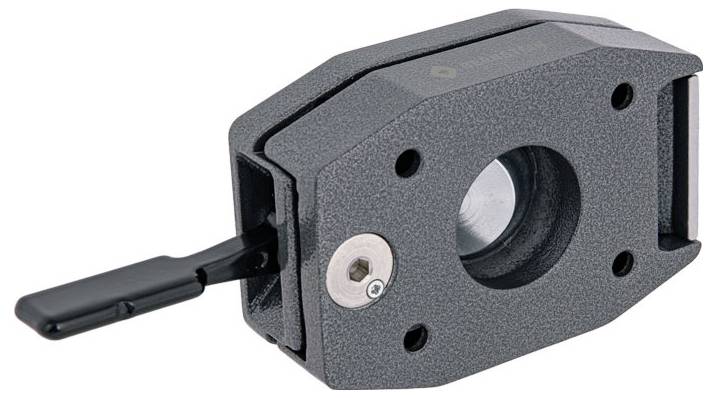

Gray mechanical clamp or camera mount with a black lever and central circular opening, shown on a white background.

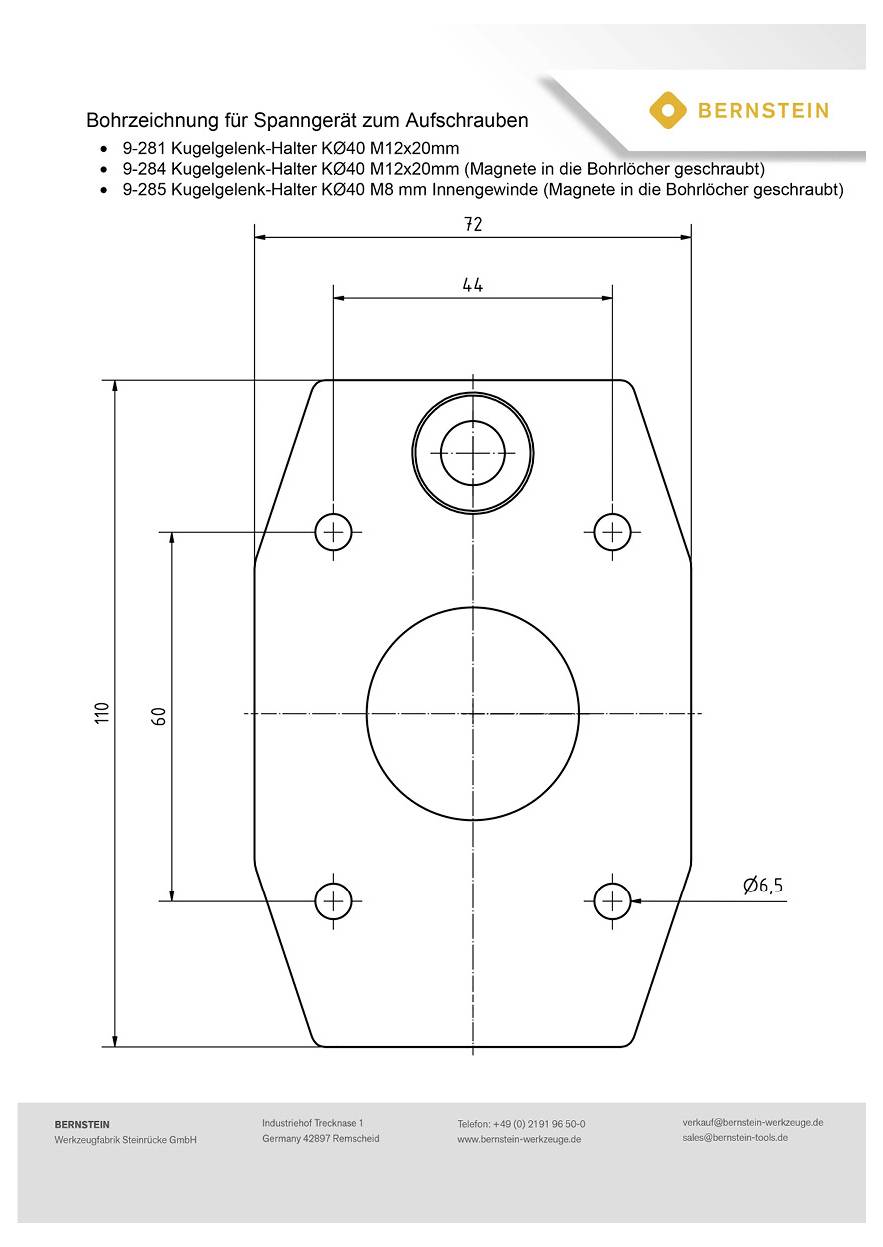

Technical drawing of a mounting plate for a door latch, showing drilling pattern and dimensions with four corner holes, a central large hole, and a smaller top hole.
1/6
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
3 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 124.99 / piece)
€ 124.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 3 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

SPANNFIX-base with ball joint

  • Ball joint
  • Thread pivot M12 x 1.5 for fixed screwing

Our service for you

  • Symbol image for BERNSTEIN Tools for Electronics 9-281 Vice base 9-281

Technical specifications

  • Size of the base plate: 110 x 72 mm
  • Four holes 6 mm Ø for inner screwing
Product type

Vice base

Features

Ball joint

Material

Aluminium (die-cast)

Steel

Length

110 mm

Width

72 mm

Dim

(L x W) 110 mm x 72 mm

Weight

0.8 kg

Documents & Downloads

Datasheet

Datasheet 824139 BERNSTEIN Tools for Electronics 9-281 Vice base 9-281

User & Safety Instructions

User & Safety Instructions 824139 BERNSTEIN Tools for Electronics 9-281 Vice base 9-281

Description

SPANNFIX-base with ball joint and threaded pins M 12 x 1.5 for permanent screwing. The variable Spannfix-base enables an exact and secure positioning in all directions e.g. opto-electronic mesaurement devices, monitors and monitoring cameras.

Features

  • Size of the base plate: 110 x 72 mm
  • Four holes 6 mm Ø for inner screwing
  • Stand consists of high-quality poweder-coated aluminium casting and the steel ball is at upper surface.
