Bicker Elektronik USB-C Medizin Steckernetzteil Mains PSU (adjustable voltage) 100 W 2x USB-C® Quick Charge 4.0, Power D
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 83.99 / piece)
€ 83.99
incl. VAT
14-day return policy included
Highlights & Details
Bicker Elektronik USB-C Medizin Steckernetzteil Mains PSU (adjustable voltage)
- IEC/EN/ANSI/AAMI ES60601-1 (ED 3.2)
- EMC IEC60601-1-2 (Ed. 4.1)
- IEC/EN/UL 62368-1 (ED.3)
- 2X MOP
- P.D. 3.0 / QC 4.0+ / QC 4.0
- Contact current: Up to 100 µA
- Regulated output with low ripple&noise
- US, EU and UK AC plug
- Housing color: White
Technical specifications
- Dielectric resistant 4000 VAC (Primary - Secondary)
- Hold-up time: 10 ms @ full load
- Topology: LLC
- Input current 1.3 A – 0.5 A
- Product type
Mains PSU (adjustable voltage)
100 W
- Inputs

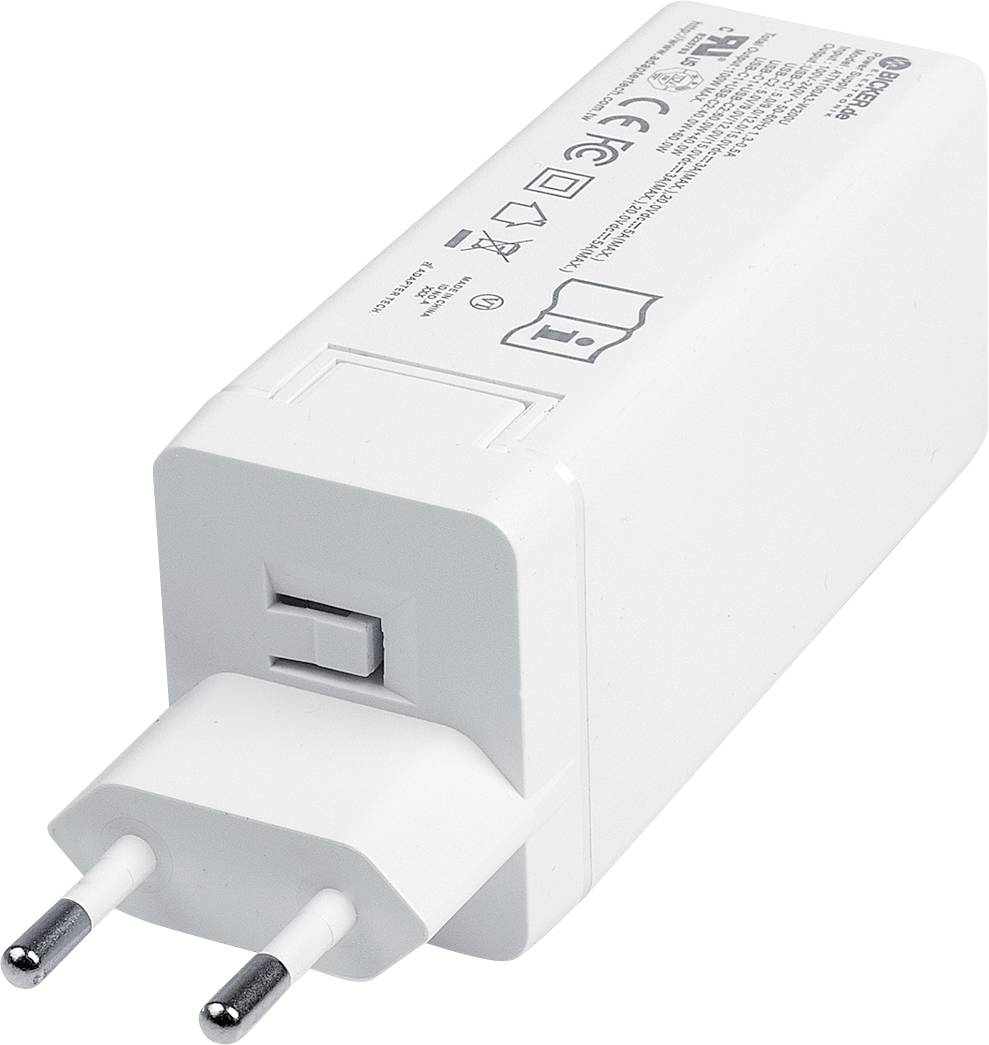

Europlug
USA plug
- Input voltage
240 V AC
- Input voltage
100-240 V AC
- No. of outputs
2 x
- Outputs

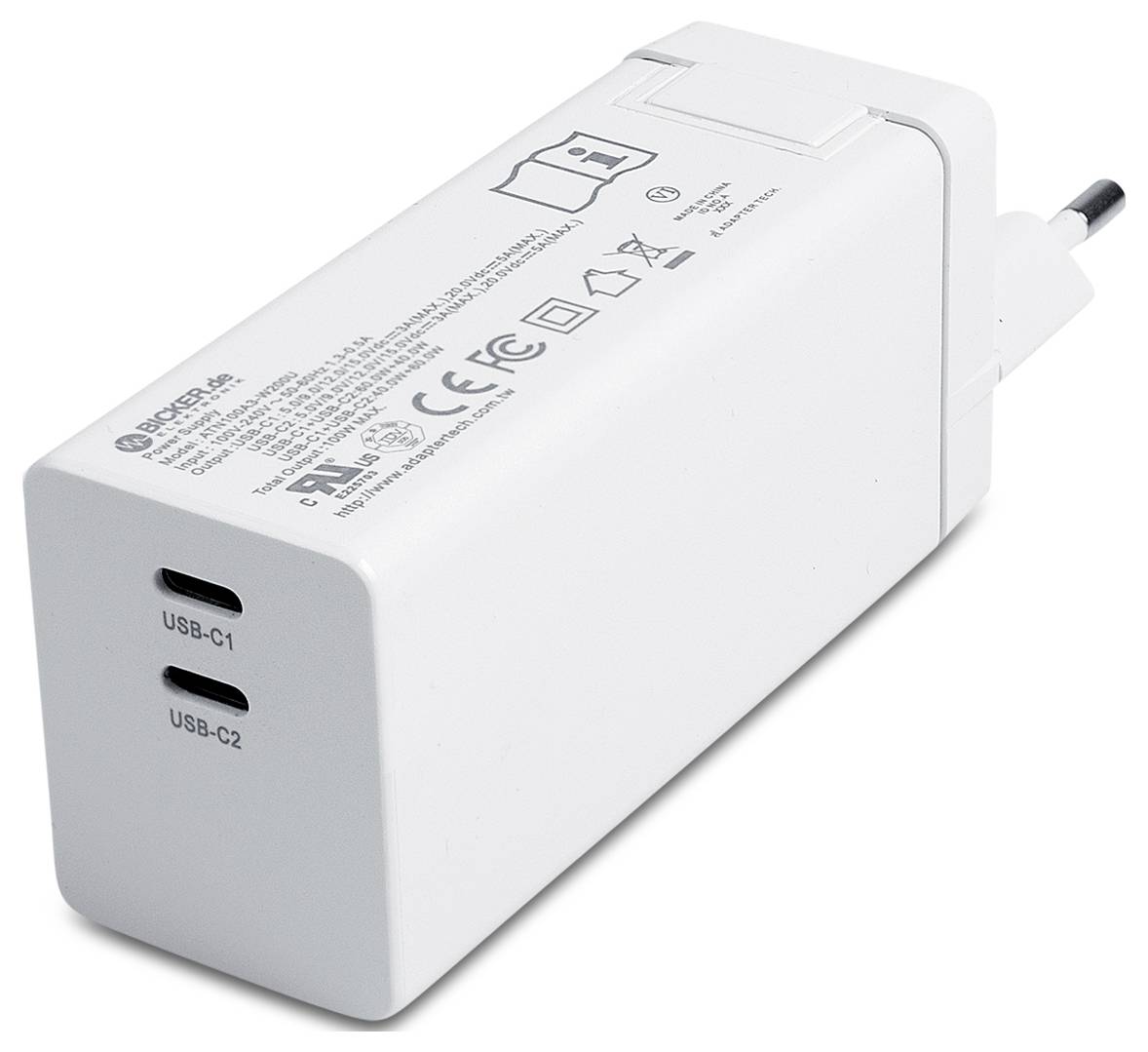

2x USB-C®
- Output voltage
5 V DC, 9 V DC, 12 V DC, 15 V DC, 20 V DC (dynamically controlled via USB Power delivery 3.0 / Quick Charge 4.0+)
- Output current (max.) - rounded
5 A
- Max. output current
5 A
- Max. output current per channel
5 A
- Type
USB-C Medizin Steckernetzteil
- Suitable for
Medizinische Geräte und Patientensysteme (2×MOPP), Tablets, Laptops und USB-C-gespeiste Endgeräte
- PSU features
incl. Europe adapter
incl. UK adapter
incl. US adapter
USB Power Delivery (USB-PD)
- Dim
(L x W x H) 44 x 35 x 87 mm
- Height
87 mm
- Length
44 mm
- Width
35 mm
- Weight
230 g
- Factory colour
White
- Type
Medical 100W GaN Plug power supply with Dual-USB-C-output
- EuP Status
Level VI
- Used at
Indoors
Mains socket
- Charging method
Quick Charge 4.0
Power Delivery 3.0
Documents & Downloads
Datasheet
Datasheet 3818335 Bicker Elektronik USB-C Medizin Steckernetzteil Mains PSU (adjustable voltage) 100 W 2x USB-C® Quick Charge 4.0, Power D
User & Safety Instructions
User & Safety Instructions 3818335 Bicker Elektronik USB-C Medizin Steckernetzteil Mains PSU (adjustable voltage) 100 W 2x USB-C® Quick Charge 4.0, Power D
Description
The compact medical AC/DC power supply with USB type-C is characterized by an excellent price-performance ratio, high energy efficiency according to the latest standards (CEC Level VI & ERP Stage 2) and extensive international MED/ITE approvals. The isolation voltage between input and output is 4000VAC. The power supply is suitable for Ideal for use in medical applications, laboratories, medical practices and hospitals.
This text is machine translated.
This text is machine translated.
Features
- Plug power supply ATN100A3-W200U

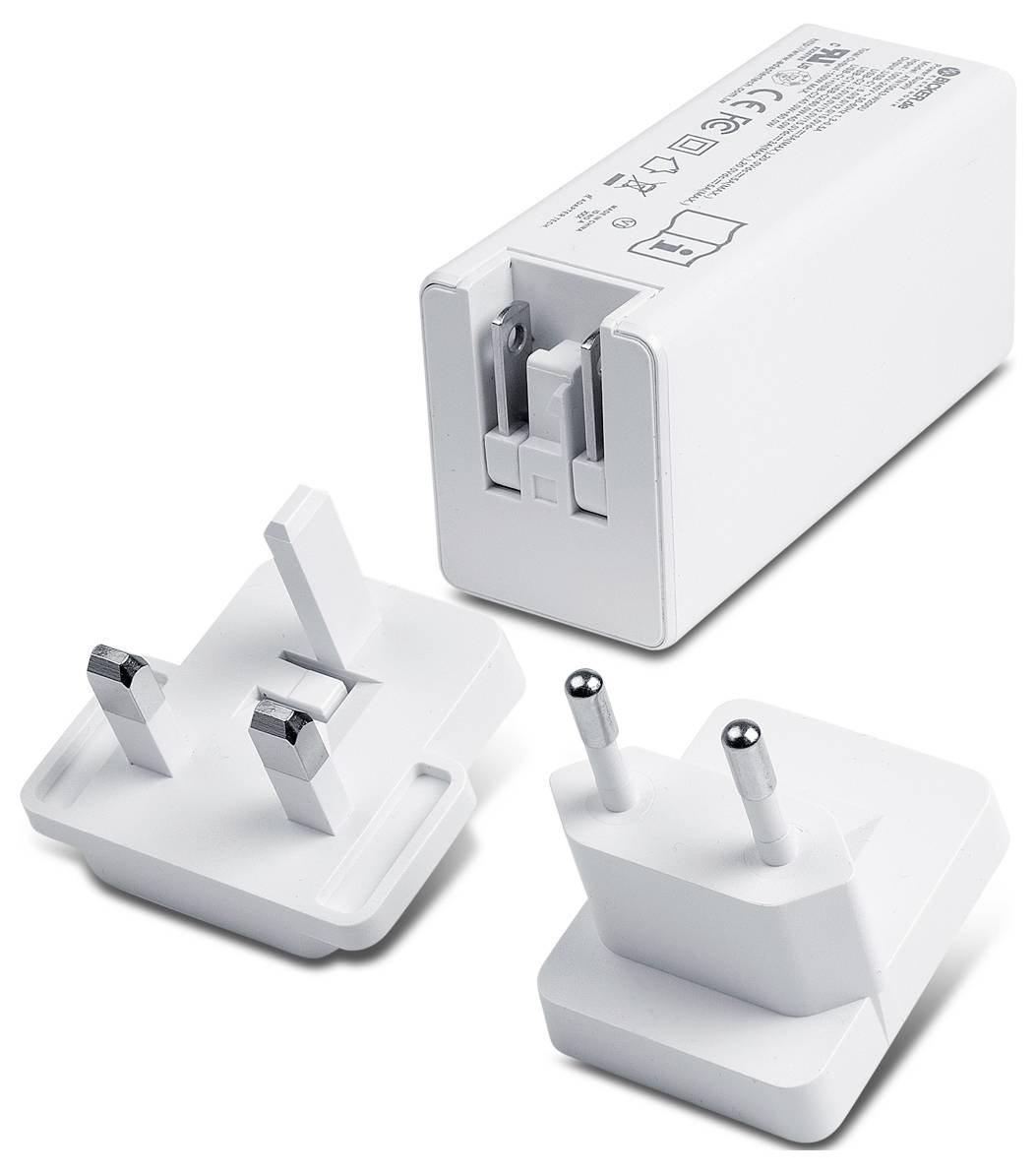

- Interchangeable AC plug attachments (EU, US, UK)
