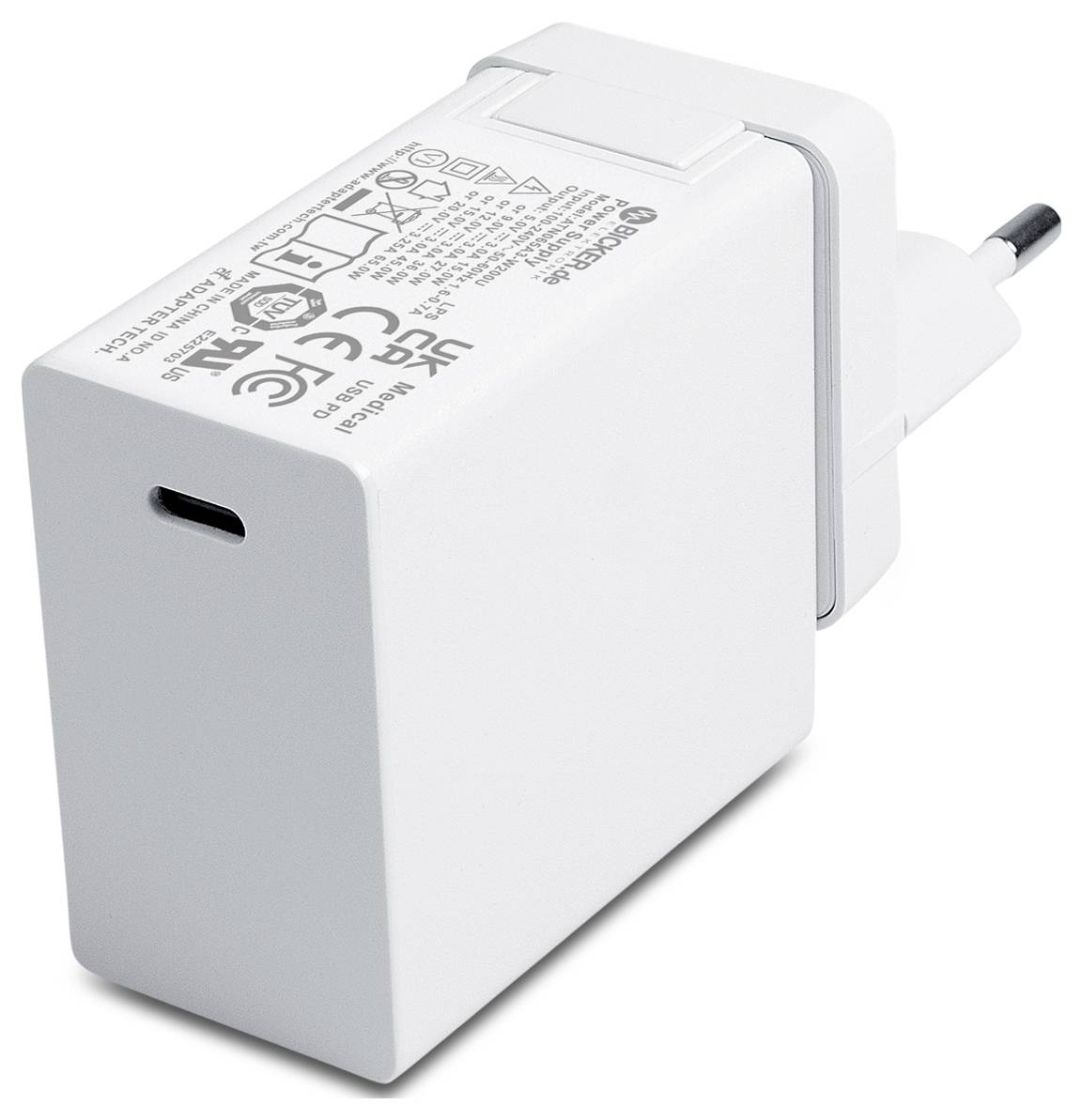

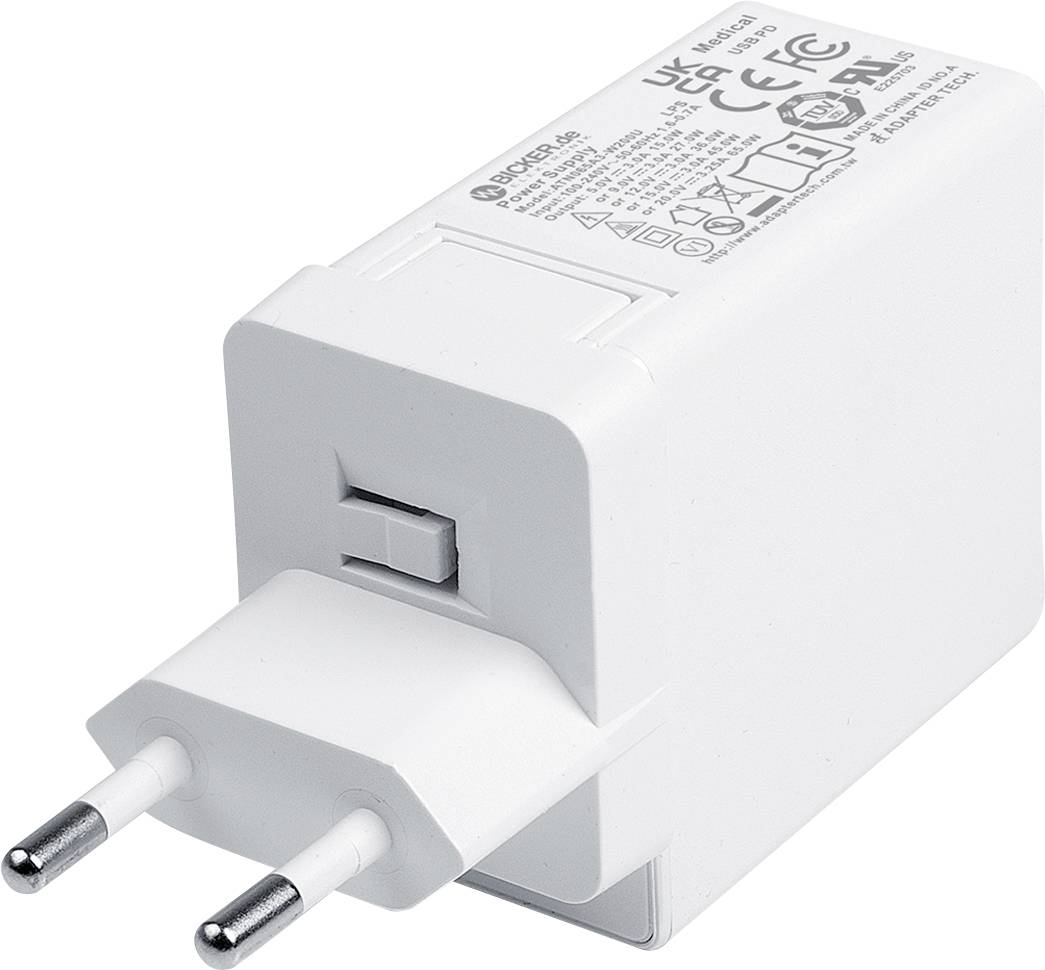

Bicker Elektronik USB-C Medizin Steckernetzteil Mains PSU (adjustable voltage) 65 W USB-C® socket Quick Charge 4.0, Powe
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 28.99 / piece)
€ 28.99
incl. VAT
14-day return policy included
Highlights & Details
Bicker Elektronik USB-C Medizin Steckernetzteil Mains PSU (adjustable voltage)
- IEC/EN/ANSI/AAMI ES60601-1 (ED 3.2)
- EMC IEC60601-1-2 (Ed. 4.1)
- IEC/EN/UL 62368-1 ED.3
- 2 X ROCKER
- P.D. 3.0 / QC 4.0+ / QC 4.0
- Contact current: Up to 100 µA
- Regulated output with low ripple&noise
- US, EU and UK AC plug
- Housing color: White
Technical specifications
- Insulation voltage 4000 V AC (primary - secondary)
- Operating temperature: -20°C to +40 °C
- Storage temperature -20 °C to +80 °C.
- MTBF: Over 300,000 hours at 25°C (Telcordia SR-332)
- Max. Operating height: Up to 5000 m
- Product type
Mains PSU (adjustable voltage)
65 W
- Inputs
Europlug
UK plug
USA plug
- Input voltage
240 V AC
100 V AC
- Input voltage
100-240 V AC
- No. of outputs
1 x
- Outputs
USB-C® socket
- Output voltage
AUTO SENSING VIA USB-PD: 5.0 V DC / 9.0 V DC / 12.0 V DC / 15.0 V DC / 20.0 V DC
- Output current (max.) - rounded
3.25 A
- Max. output current
3.25 A
- Max. output current per channel
3.25 A
- Type
USB-C Medizin Steckernetzteil
- Suitable for
Medizingeräte, Laborgeräte, Praxis- und Krankenhaus-Equipment, mobile medizinische Laptops/Tablets
- PSU features
incl. Europe adapter
incl. UK adapter
incl. US adapter
USB Power Delivery (USB-PD)
- Dim
(L x W x H) 53.5 x 31.5 x 58 mm
- Height
58 mm
- Length
53.5 mm
- Width
31.5 mm
- Weight
130 g
- Factory colour
White
- Type
USB-C medical power supply
- EuP Status
Level VI
- Used at
Indoors
Mains socket
- Charging method
Quick Charge 4.0
Power Delivery 3.0
Documents & Downloads
Datasheet
Datasheet 3818334 Bicker Elektronik USB-C Medizin Steckernetzteil Mains PSU (adjustable voltage) 65 W USB-C® socket Quick Charge 4.0, Powe
User & Safety Instructions
User & Safety Instructions 3818334 Bicker Elektronik USB-C Medizin Steckernetzteil Mains PSU (adjustable voltage) 65 W USB-C® socket Quick Charge 4.0, Powe
Description
The compact medical AC/DC power supply with USB type-C is characterized by an excellent price-performance ratio, high energy efficiency according to the latest standards (CEC Level VI & ERP Stage 2) and extensive international MED/ITE approvals. The isolation voltage between input and output is 4000VAC. The power supply is suitable for Ideal for use in medical applications, laboratories, medical practices and hospitals.
This text is machine translated.
This text is machine translated.
Scope of delivery

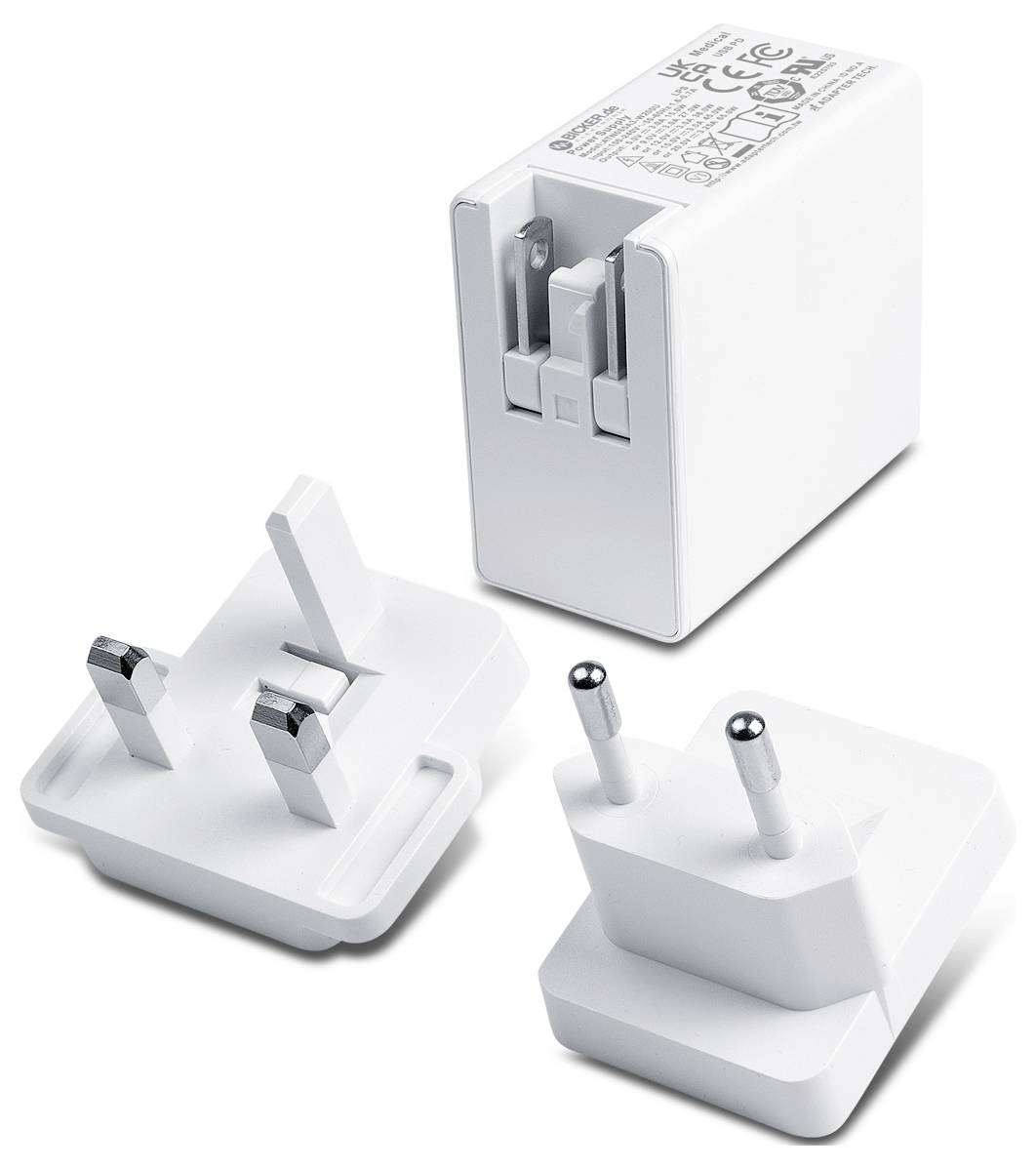

- Plug power supply ATN065A3-W200U,
- Changeover plug set (EU, UK, US)
