Name: Brennenstuhl 1132920325 Current Outdoor adapter Blue, Black, Orange, Grey 1.5 m H07RN-F 3G 2,5 mm²
Brand: Brennenstuhl
SKU: 3638530
Availability: InStock

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

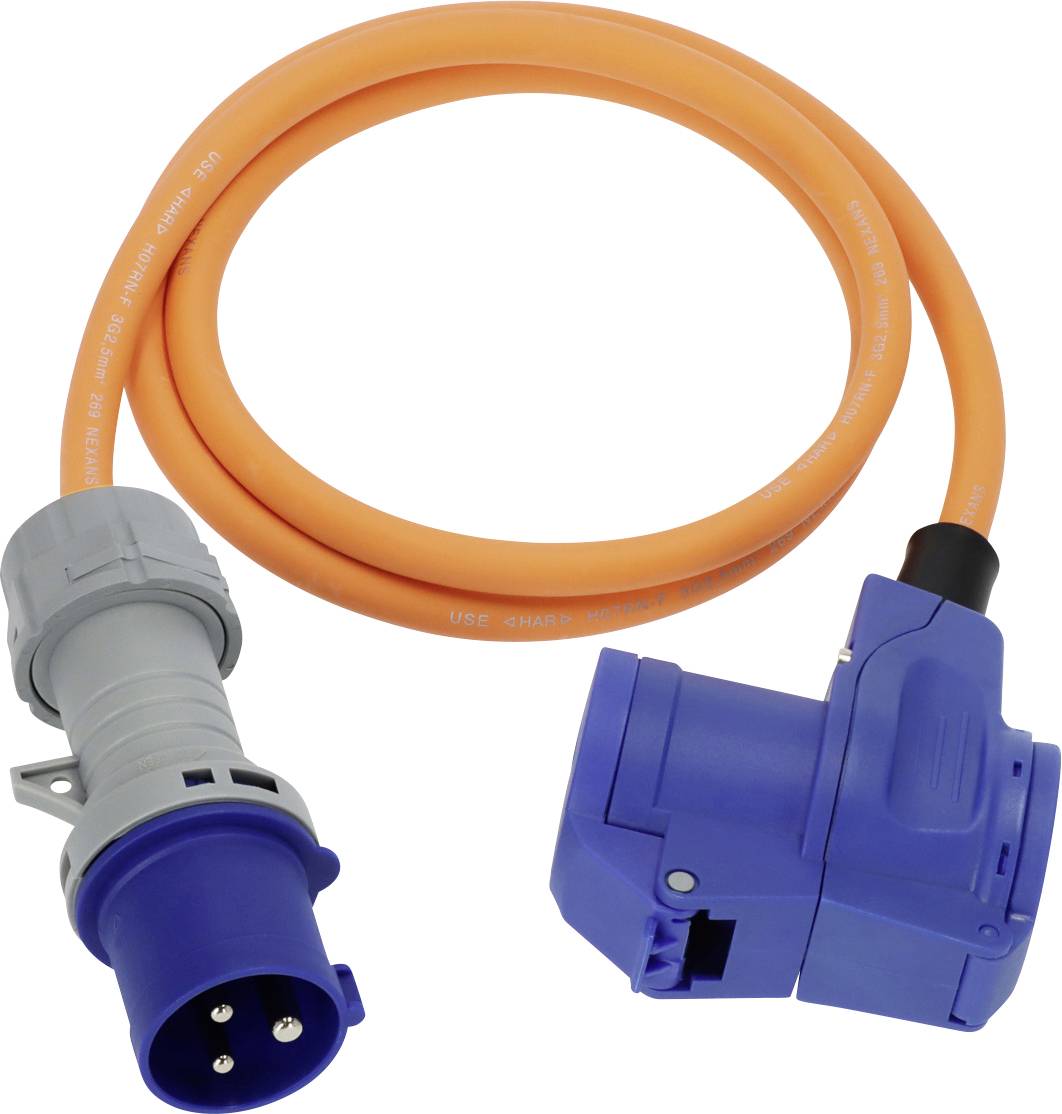

Orange electrical cable with blue industrial power connectors on both ends<br>

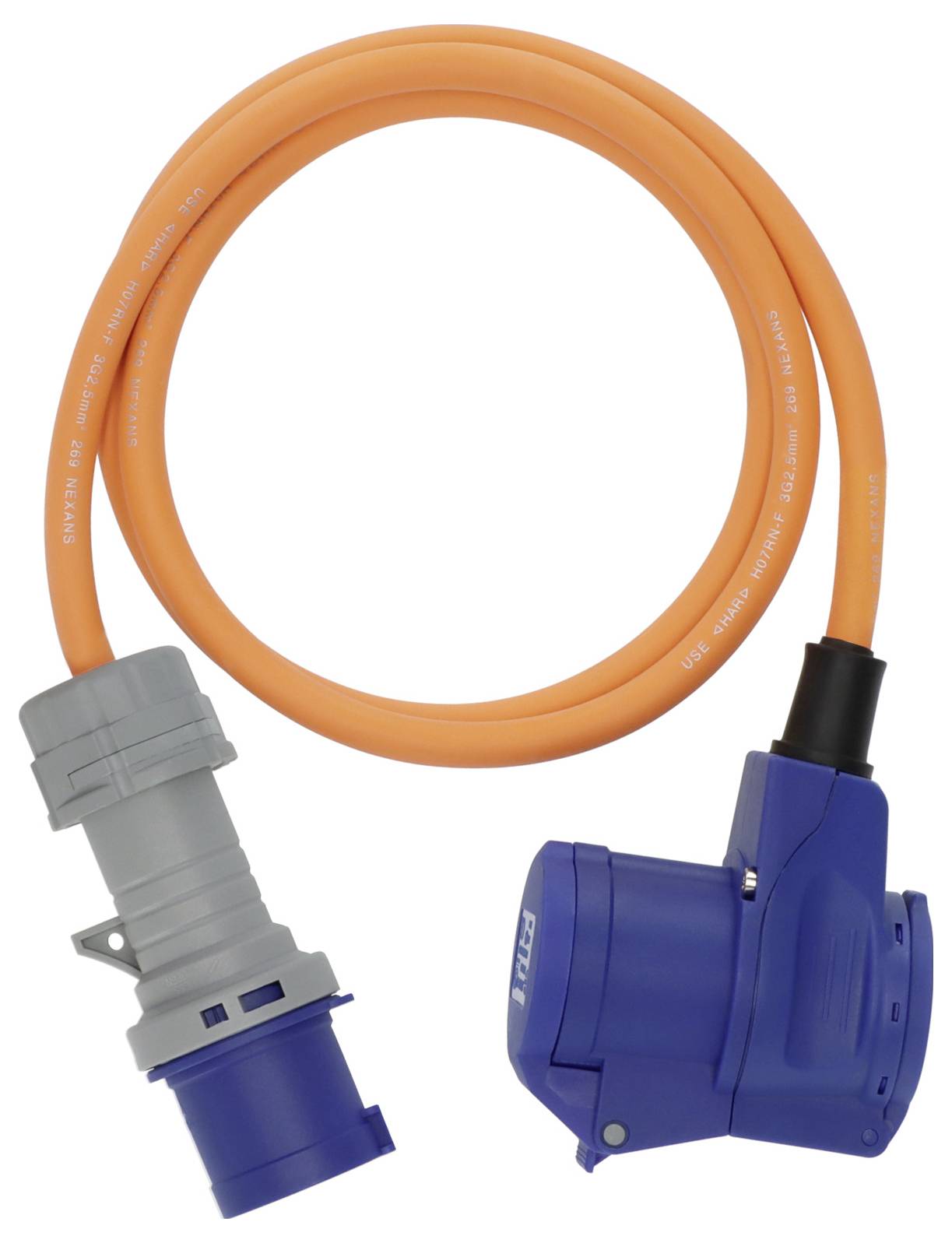

Orange power cable with industrial plug connectors, one blue and one gray, shown against a white background.

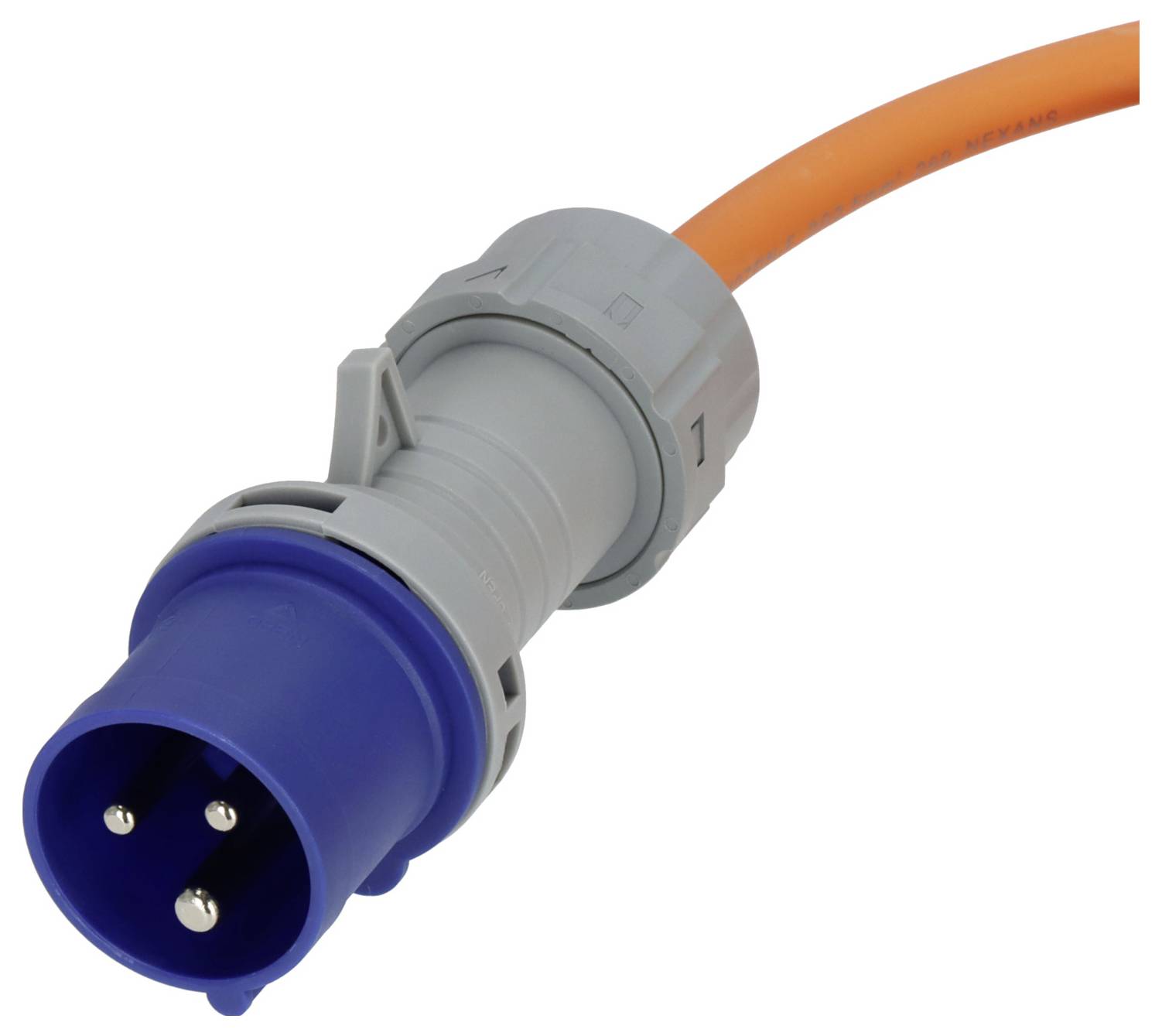

Blue industrial three-pin power plug connected to an orange cable on a white background.

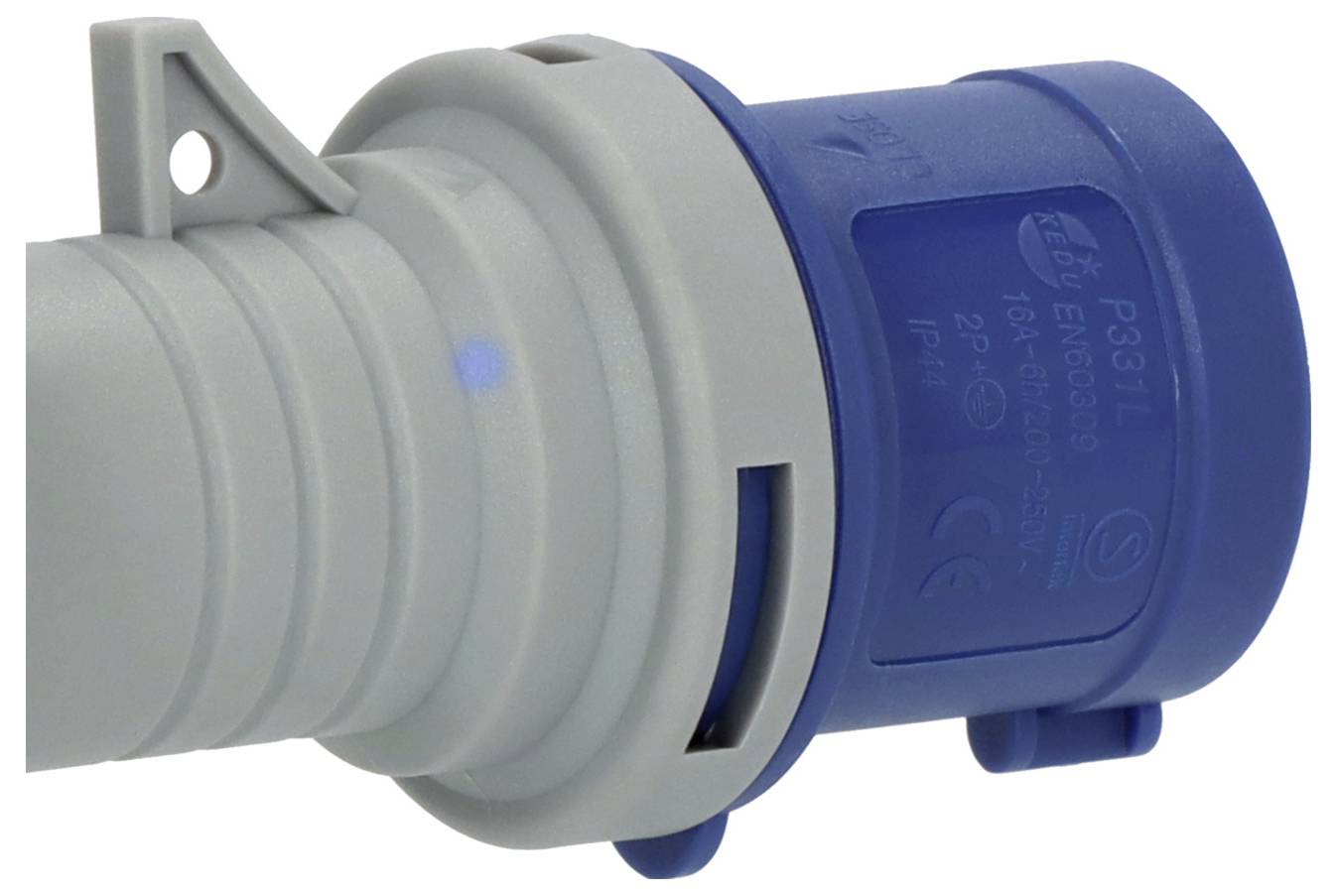

Blue and gray industrial electrical connector plug with mounting tab, shown in close-up on a white background.

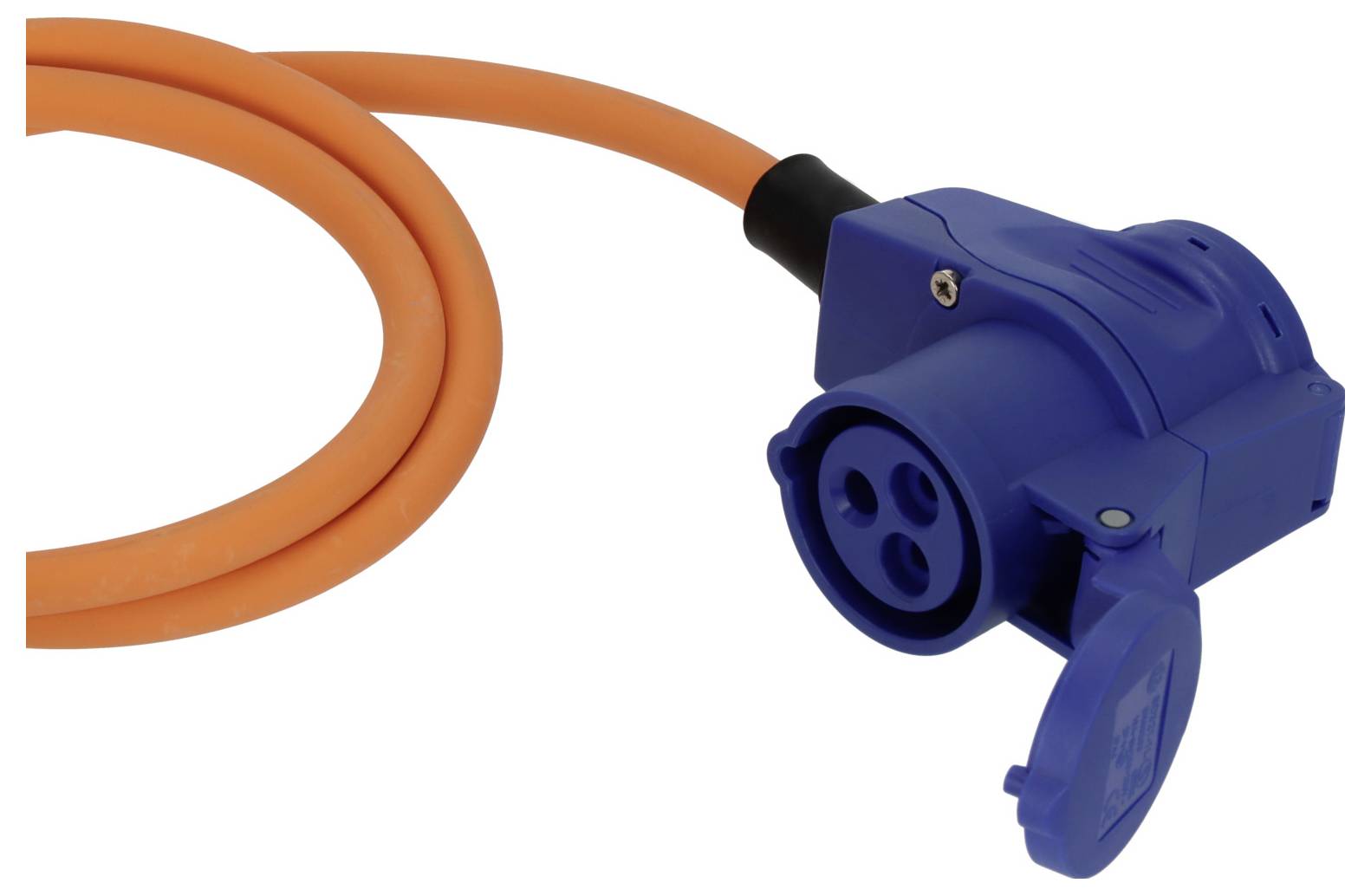

Blue industrial electrical plug attached to an orange power cable, shown on a white background.<br>

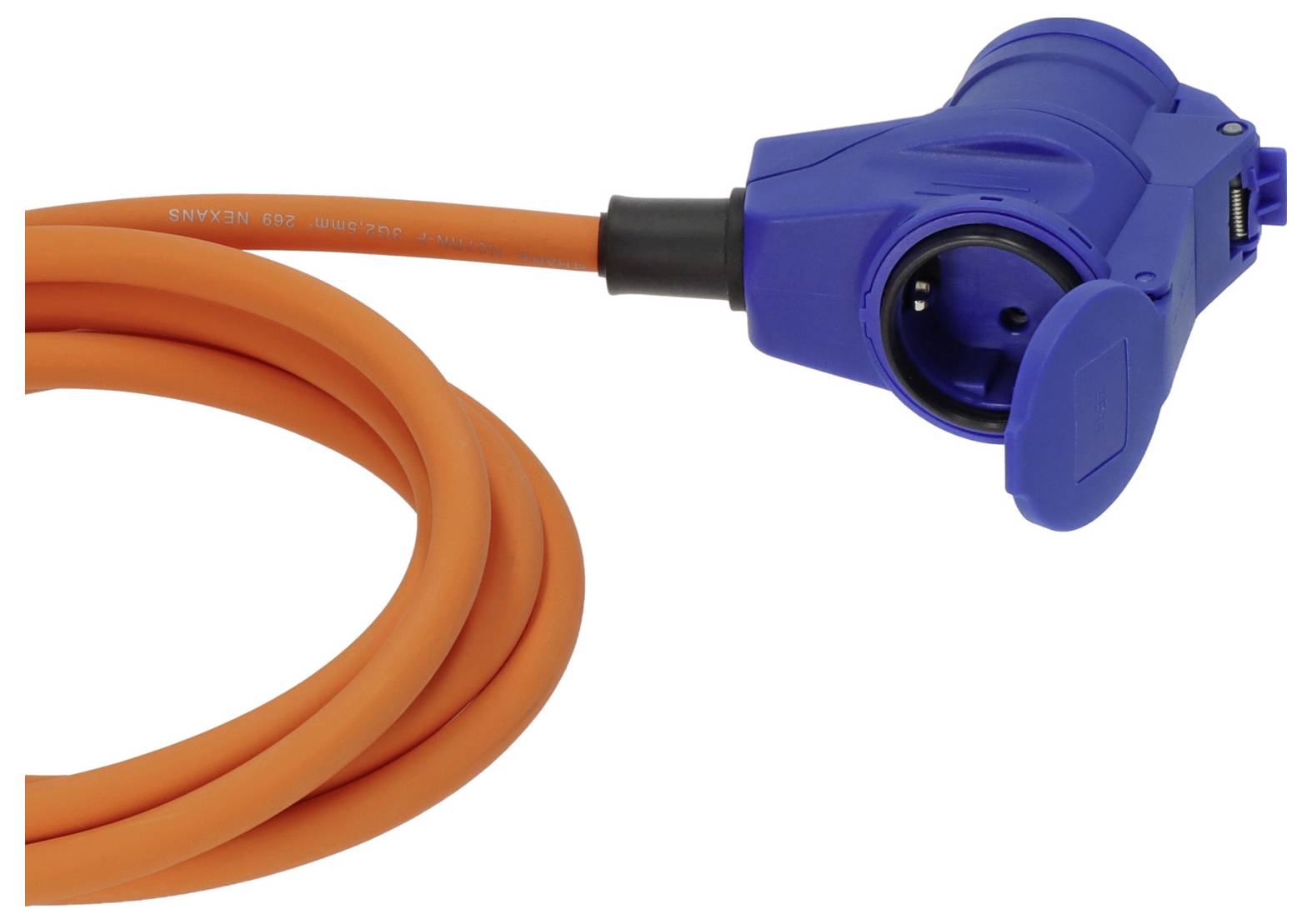

Blue industrial electrical connector attached to a coiled orange power cable on a white background.

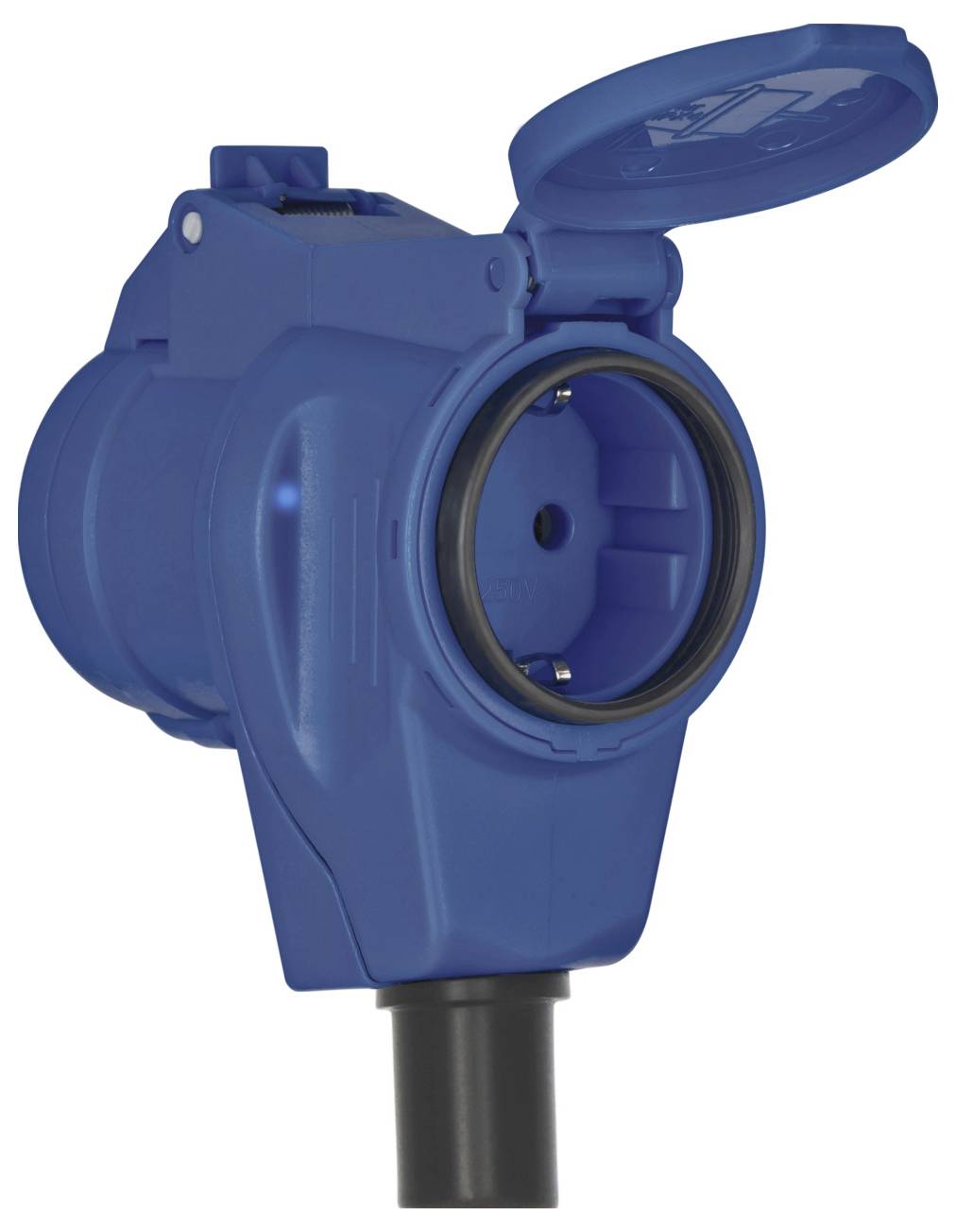

Blue industrial electrical socket with hinged protective cover and black cable entry, shown isolated on a white background.<br>

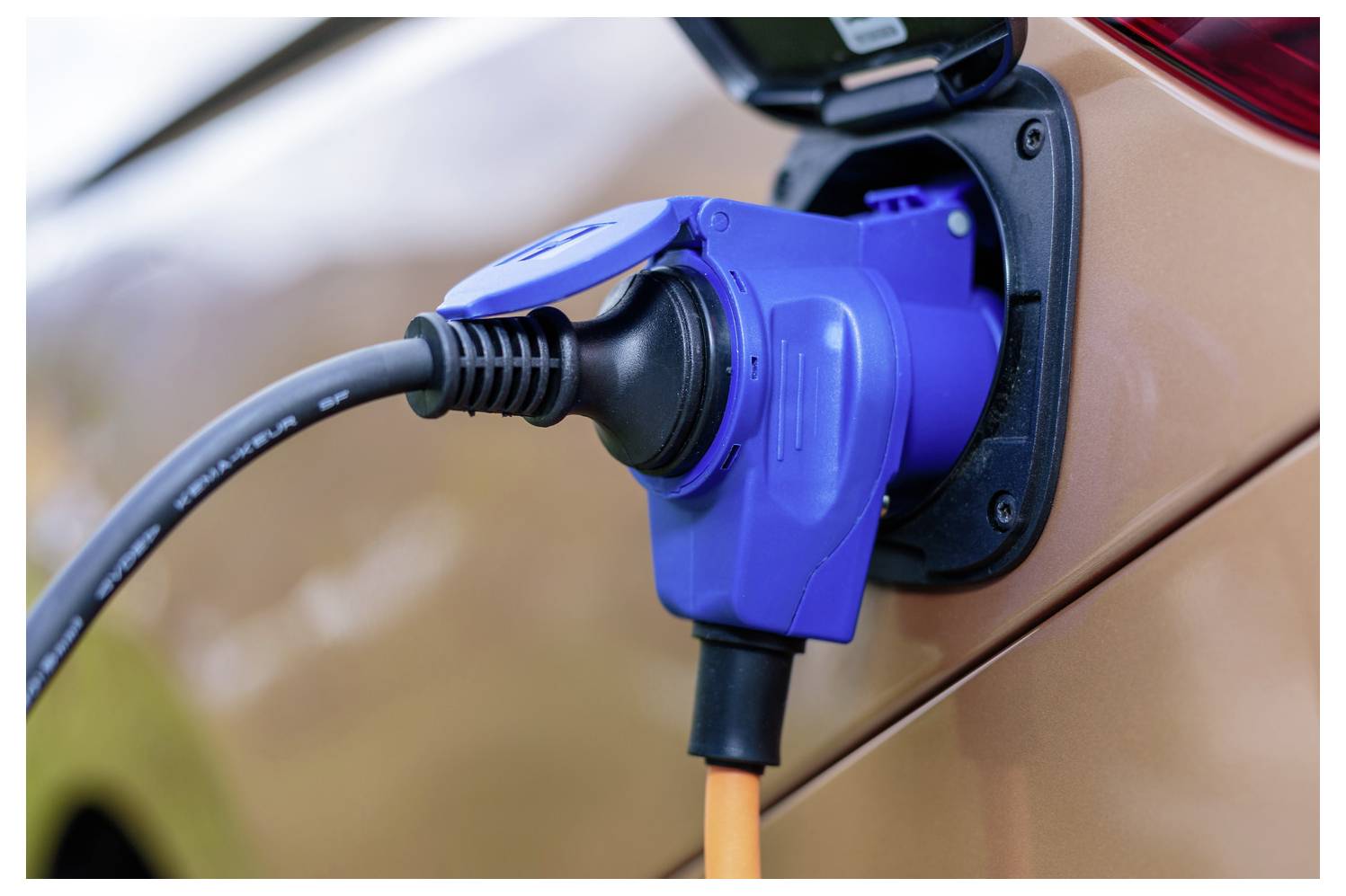

Close-up of a blue electric vehicle charging plug connected to a car’s charging port.

1/8

Datasheet (PDF)

Fast track dispatch on Tue 27 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 30.99 / piece)

€ 30.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Brennenstuhl Camping CEE adapter cable with CEE plug and angle coupler incl. ground contact multi-socket with LED voltage display, 1.5 m

Camping adapter cable with built-in LED voltage display, which shows at a glance whether voltage is present.
CEE-Angle coupling 230 V/16 A including ground contact combination socket 230 V with self-closing cover + 230 V/16 A CEE plug.
The RN cable is very robust, oil-resistant and particularly suitable for professional use.
Cable in signal color orange, helpful to prevent potential pitfalls.

Technical specifications

CEE plug/CEE angle connector
Plug system: CEE 16 A 2P+PE (3p) 230 V
Plug-in system CEE-socket/ CEE-coupling: CEE 1x 16 A 2P+PE (3p) 230 V

Product type: Current Outdoor adapter

Version: Outdoor adapter

Type A: CEE socket (3-pin, 16 A)

Connector version: straight

Type B: CEE connector (3-pin, 16 A)

Outlets: 1

Cable standard: H07RN-F 3G 2,5 mm²

Cable length: 1.5 m

Used at: Outdoors
Indoors

: IP44

Factory colour: Blue
Black
Orange
Grey

Cable use: Current

Connection type: Connector

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3638530 Brennenstuhl 1132920325 Current Outdoor adapter Blue, Black, Orange, Grey 1.5 m H07RN-F 3G 2,5 mm²

User & Safety Instructions

User & Safety Instructions 3638530 Brennenstuhl 1132920325 Current Outdoor adapter Blue, Black, Orange, Grey 1.5 m H07RN-F 3G 2,5 mm²

Description

The CEE adapter cable from Brennenstuhl is equipped with a CEE plug and a convenient angle coupler, which includes an integrated ground contact combination socket. Ideal is suitable for continuous outdoor use – for example, in caravans, mobile homes or while camping. The caravan adapter cable is not only extremely robust, but also convinces through the following features:

· Foreign substance and splash-protected, IP44
· Cable length: 1.5m
· CABLE NAME: H07RN-F 3G2.5
· Cable quality: Rubber neoprene
· Cable color: Orange
· Connection: CEE plug, CEE angle plug incl. ground contact socket
· Plug-in system socket/ coupling: 1x CEE 16A 2P+PE (3p) 230V incl. type F (protective contact) socket
· CEE plug and CEE angle coupler with LED voltage display
· Made in Germany

This text is machine translated.
