Name: Brennenstuhl 1167650303 Current CEE outdoor cable extension Blue, Black, Grey, Orange 3 m H07RN-F 3G 2,5 mm²
Brand: Brennenstuhl
SKU: 3638535
Availability: InStock

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

Orange electrical power cable coiled with blue industrial plug connectors on both ends.

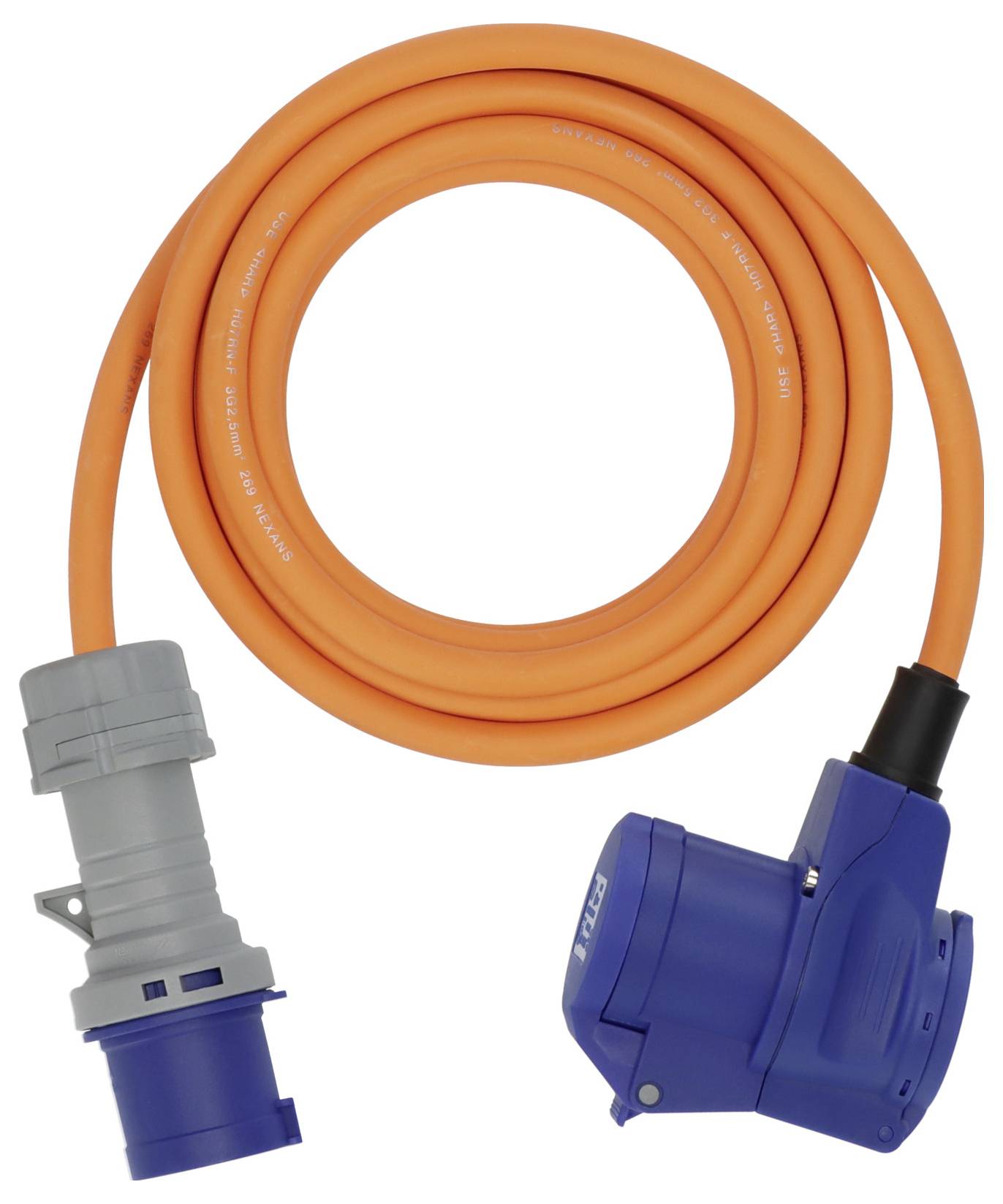

Orange heavy-duty power cable with blue and gray industrial connectors, coiled on a white background.

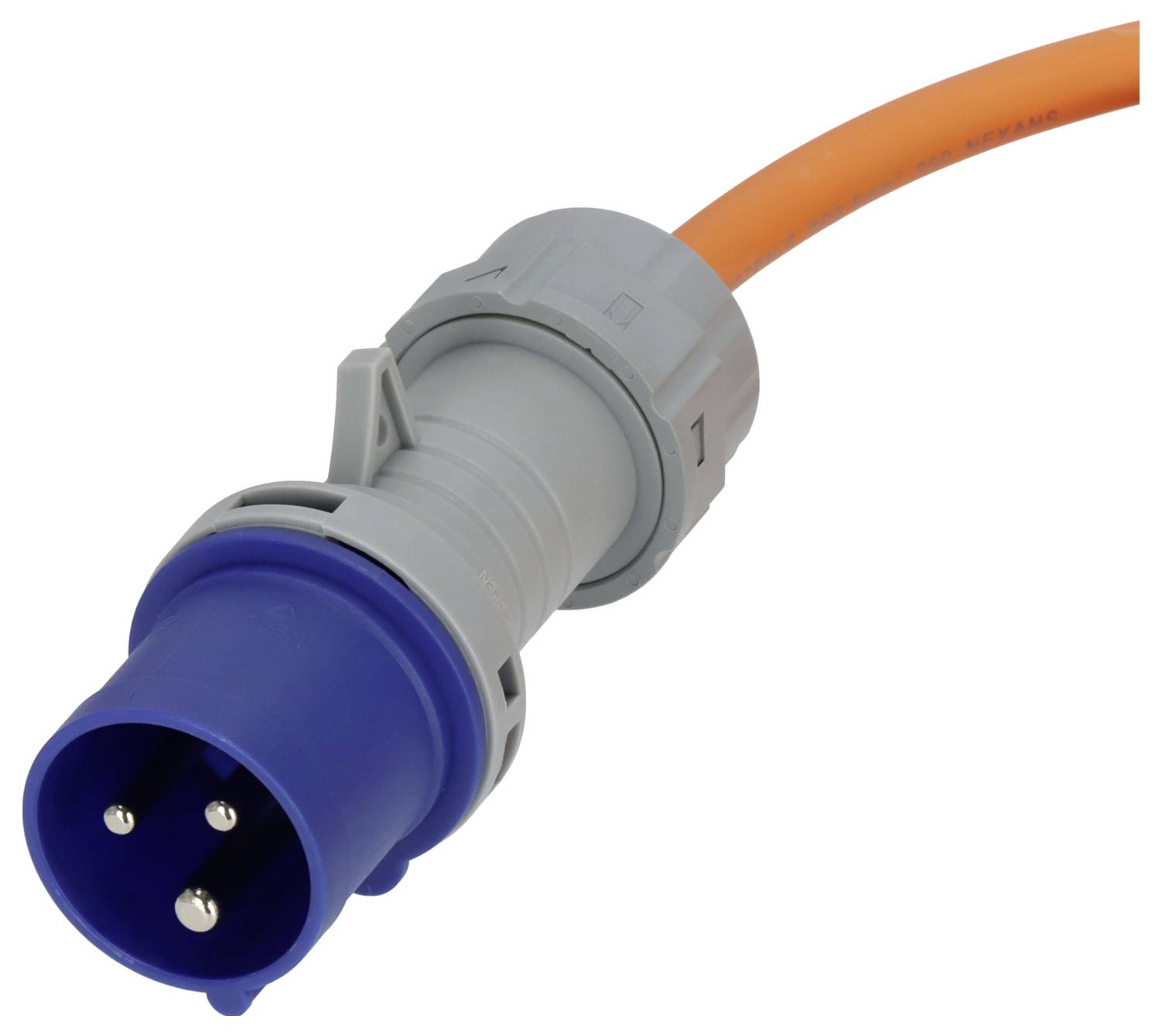

Blue industrial power plug attached to an orange cable, shown close-up on a white background.

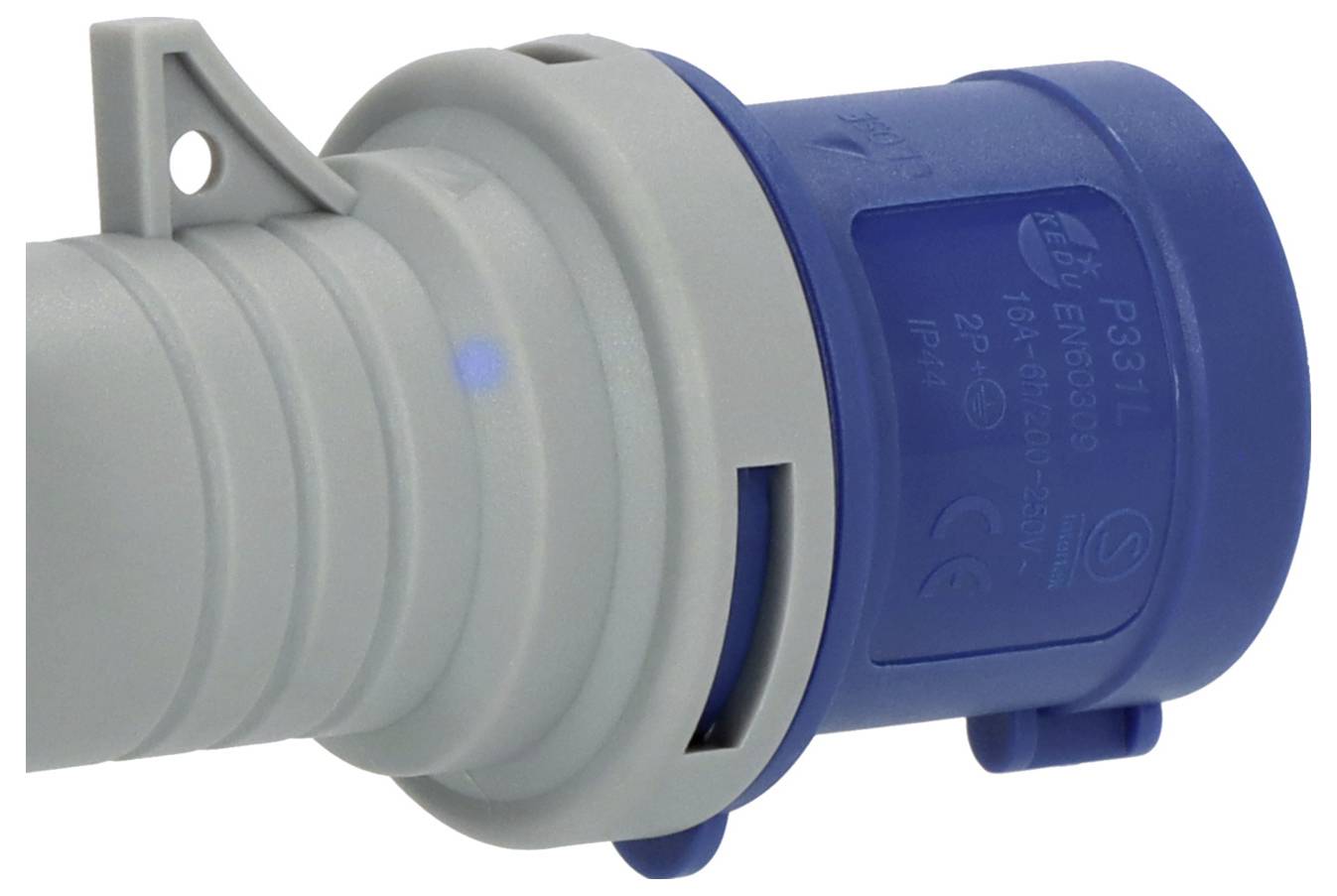

Blue and gray industrial electrical connector plug with locking tabs, shown on a white background.

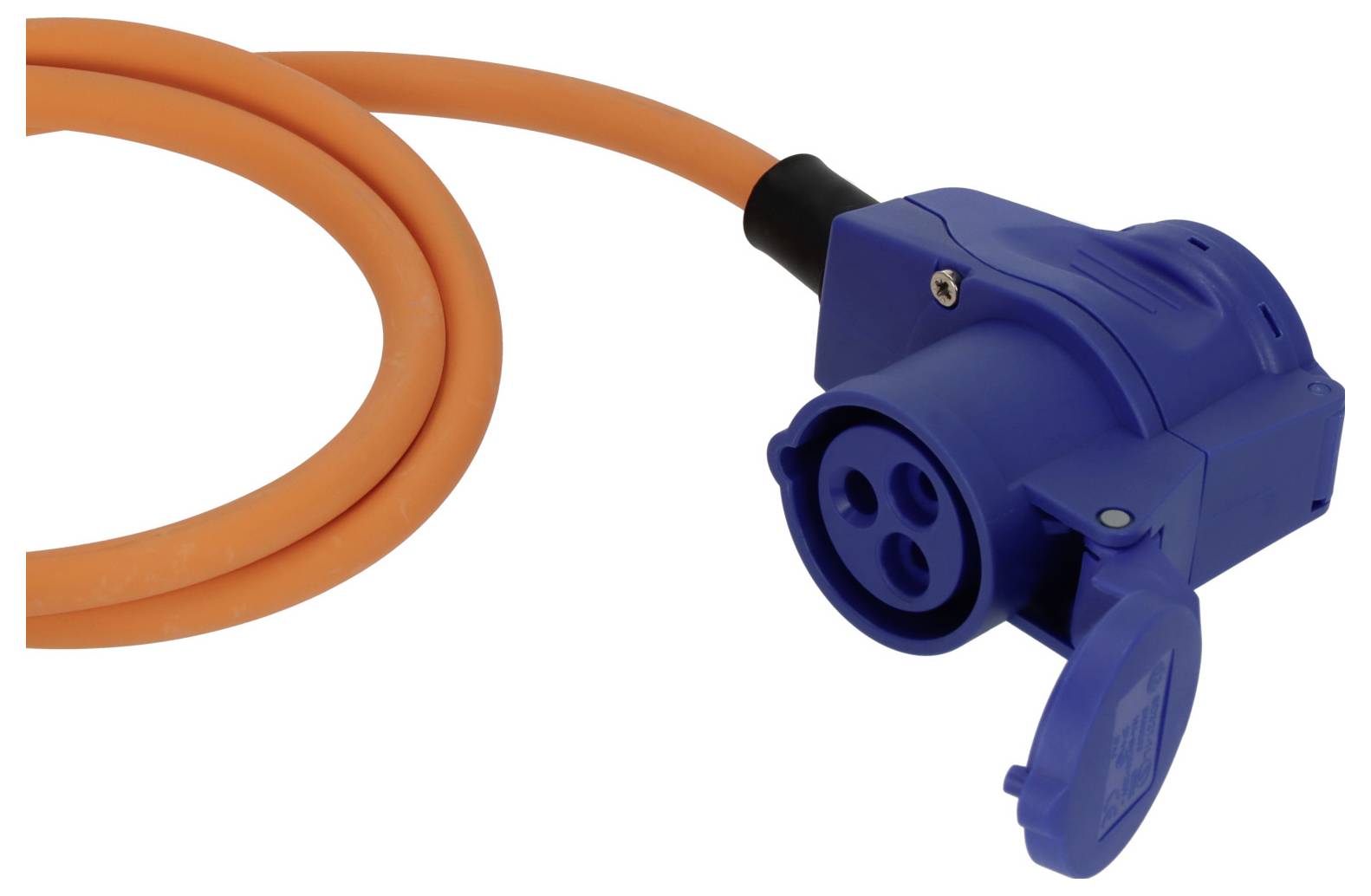

Blue industrial electrical plug attached to an orange power cable on a white background, with a hinged protective cover over the socket.

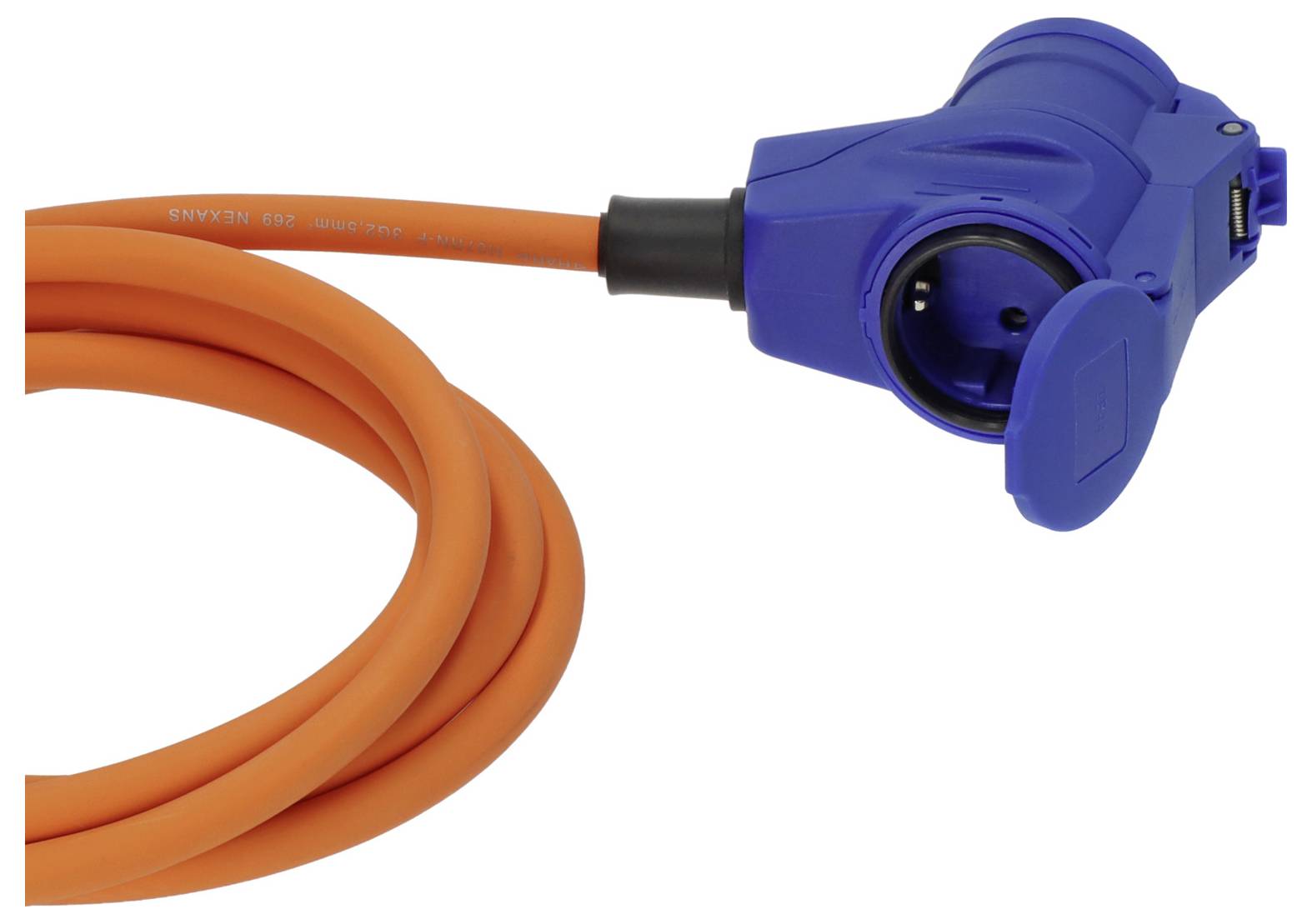

Blue industrial power connector attached to a coiled orange cable on a white background

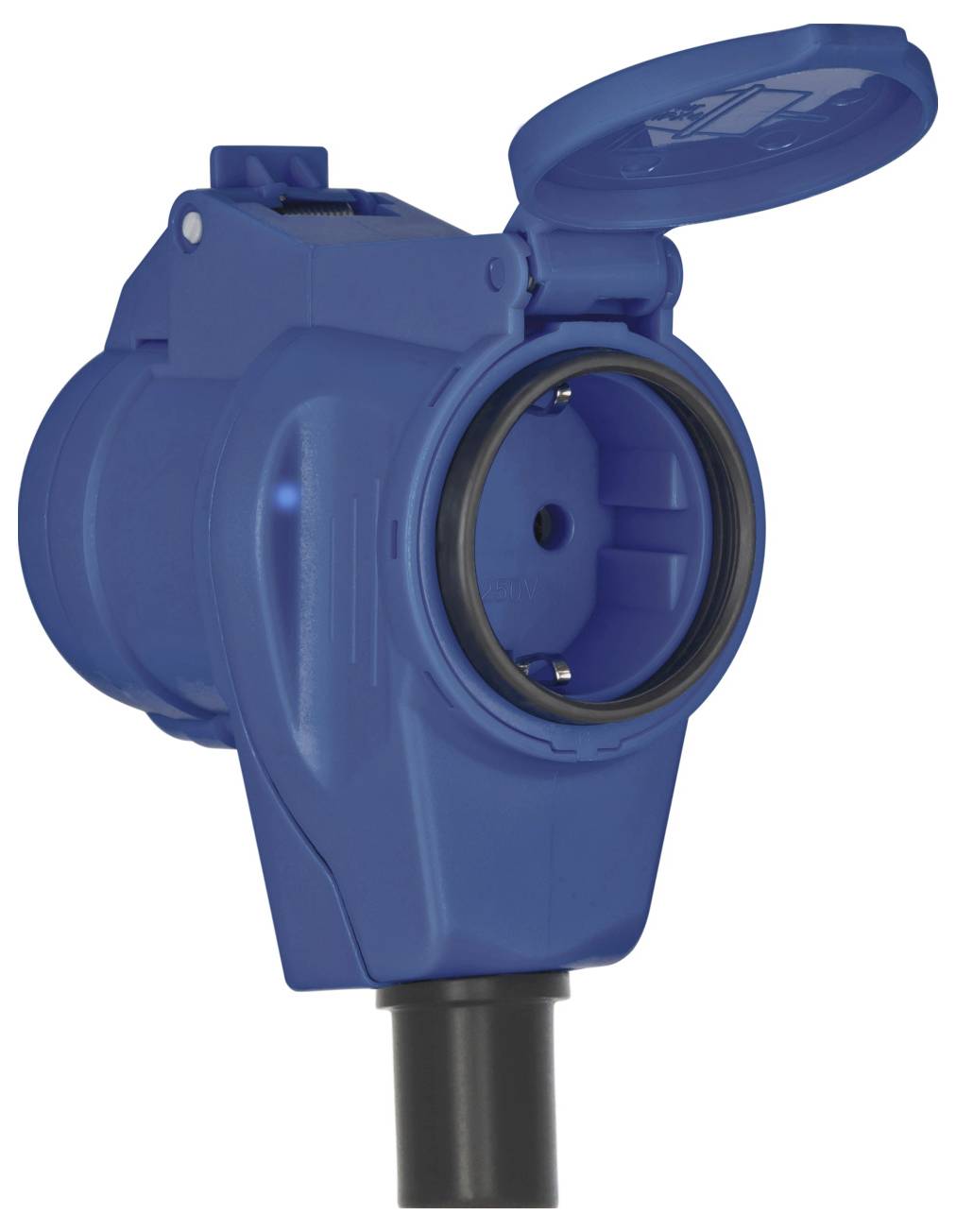

Blue industrial electrical socket with a hinged protective cover and black mounting base, shown on a white background.

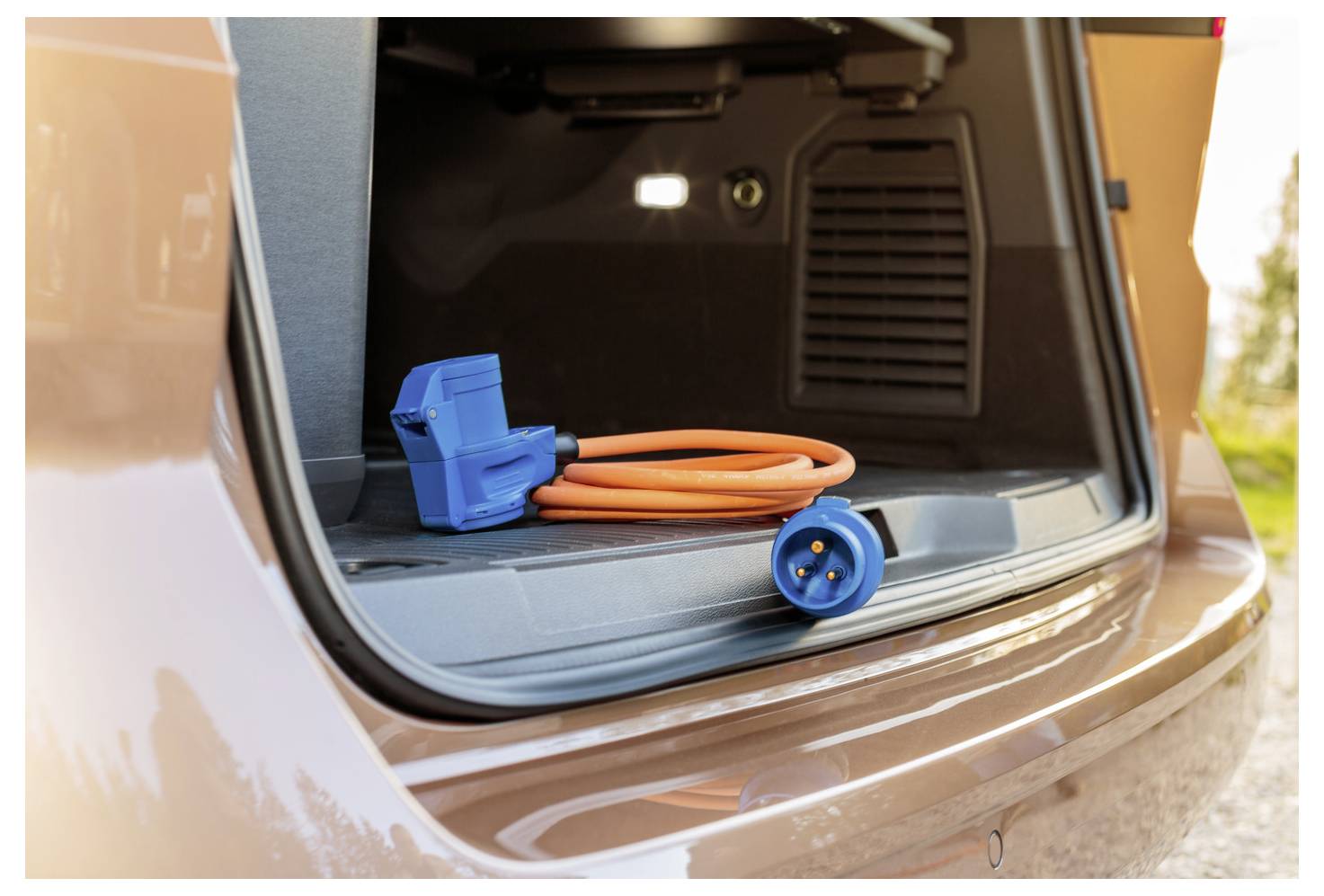

Close-up of an electric vehicle charging cable and connector stored in the open rear trunk of a car.

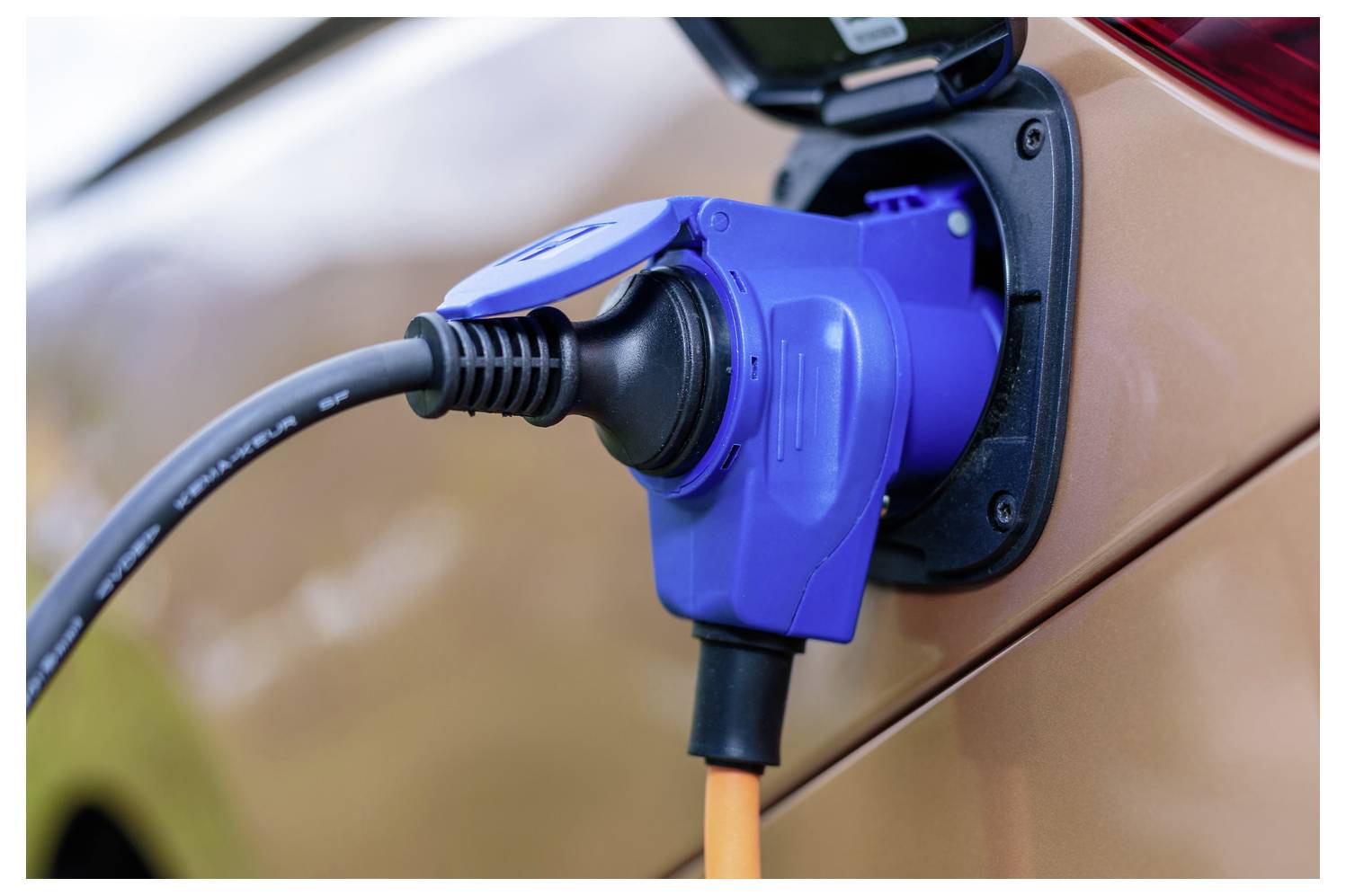

Blue electric vehicle charging plug connected to a car’s charging port<br>

1/9

Datasheet (PDF)

Fast track dispatch on Tue 27 Oct

7 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 39.99 / piece)

€ 39.99

incl. VAT

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Brennenstuhl camping CEE-extension cable with CEE-plug and angle coupling incl. protection contact multi-socket with LED voltage display, 3 m

Camping CEE cable with integrated LED voltage display, which enables a view to see whether voltage is present.
CEE-Angle coupling 230 V/16 A including ground contact combination socket 230 V with self-closing cover + 230 V/16 A CEE plug.
The RN cable is very robust, oil-resistant and particularly suitable for professional use.
Cable in signal color orange, helpful to prevent potential pitfalls.

Technical specifications

CEE plug/CEE angle connector
Plug system: CEE 16 A 2P+PE (3p) 230 V
Plug-in system CEE-socket/ CEE-coupling: CEE 1x 16 A 2P+PE (3p) 230 V

Product type: Current CEE outdoor cable extension

Version: CEE outdoor cable extension

Type A: CEE plug (3-pin, 16 A)

Connector version: straight

Type B: CEE connector (3-pin, 16 A)

Cable standard: H07RN-F 3G 2,5 mm²

Cable length: 3 m

Used at: Indoors
Outdoors

: IP44

Factory colour: Blue
Black
Grey
Orange

Cable use: Current

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3638535 Brennenstuhl 1167650303 Current CEE outdoor cable extension Blue, Black, Grey, Orange 3 m H07RN-F 3G 2,5 mm²

User & Safety Instructions

User & Safety Instructions 3638535 Brennenstuhl 1167650303 Current CEE outdoor cable extension Blue, Black, Grey, Orange 3 m H07RN-F 3G 2,5 mm²

Description

The CEE extension cable from Brennenstuhl possesses a CEE-plug and angle coupling including an earthing contact combination socket. The CEE cable is best suitable for the constant use in the outside area, such as for caravans, mobile homes or while camping. The caravan cable is not only extremely robust, but also convinces by the following features:

· Foreign substance and splash-protected, IP44
· Cable length 3m
· CABLE NAME: H07RN-F 3G2.5
· Cable quality: Rubber neoprene
· Cable color: Orange signal color
· Connection: CEE plug, CEE angle plug incl. ground contact socket
· Plug-in system socket/ coupling: 1x CEE 16A 2P+PE (3p) 230V incl. type F (protective contact) socket
· Plug system: CEE 16A 2P+PE (3p) 230V
· CEE plug and CEE angle coupler with LED voltage display
· Made in Germany
