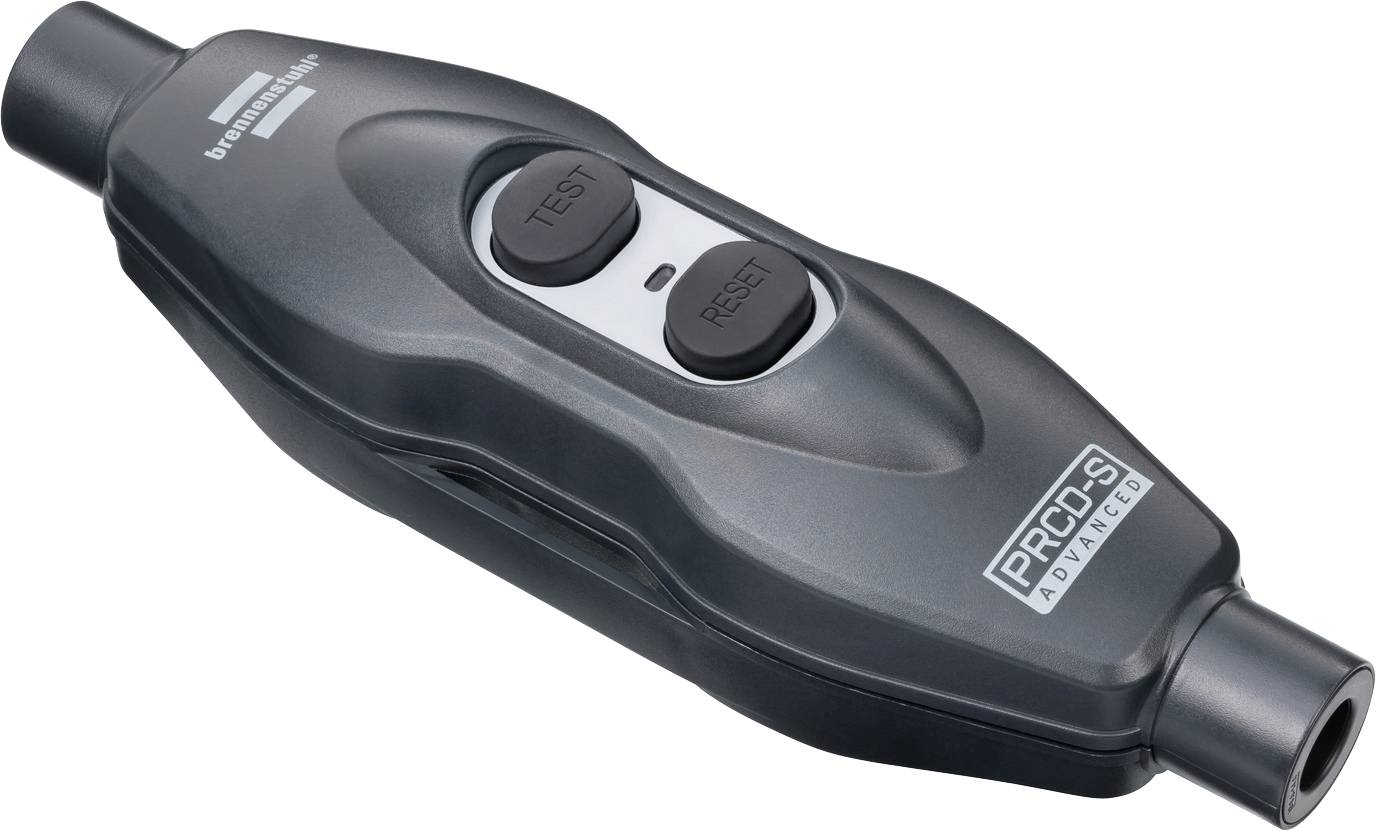

Brennenstuhl 1290680 RCCB in-line switch PRCD-S Black, Grey IP55

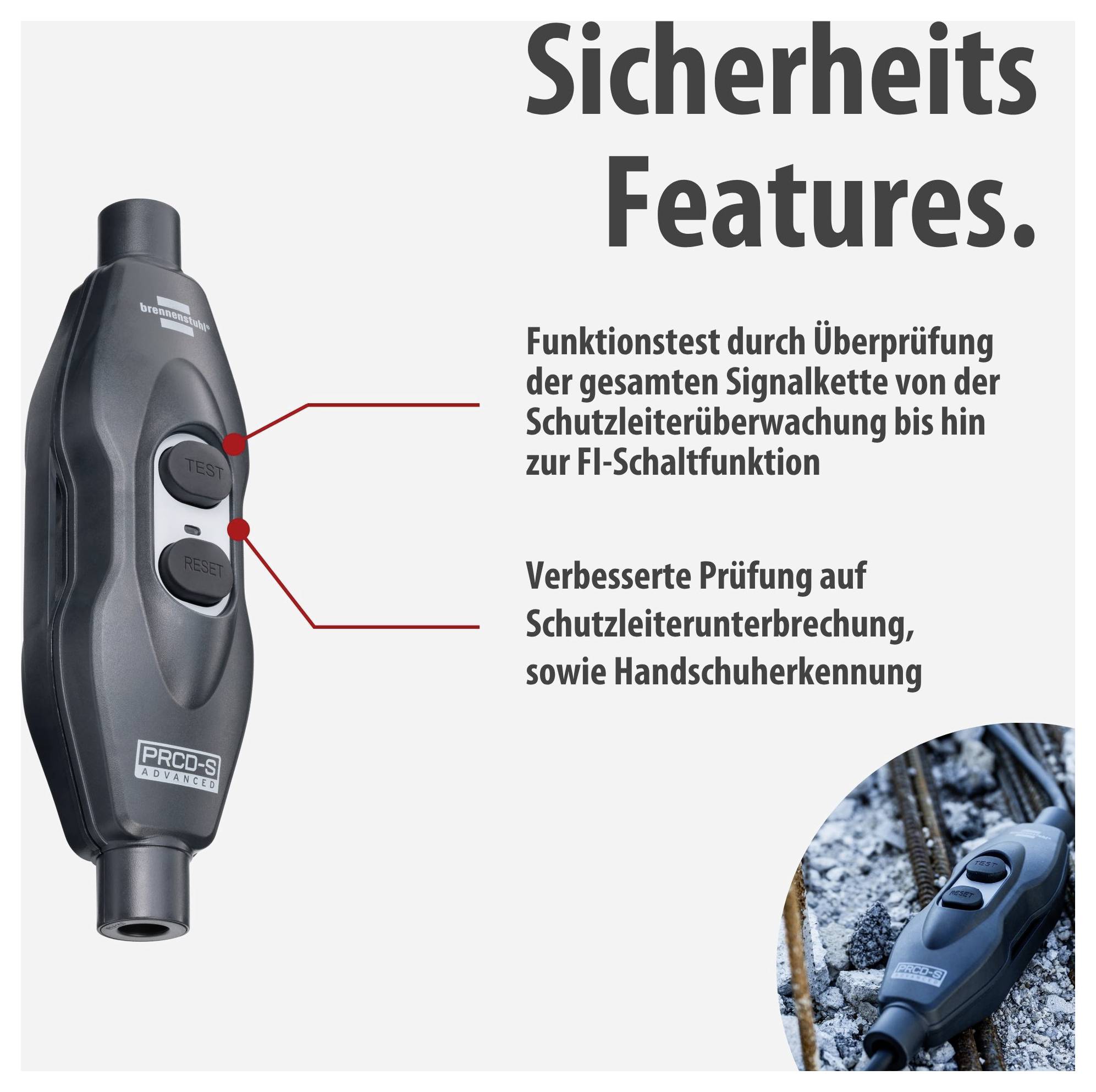

For professional use on construction sites and outdoors, the PRCD-S ADVANCED mobile Personal Protection intermediate switch from Brennenstuhl offers a reliable and robust solution for protecting the user when using electrical appliances with sockets, whose flawless function is not known. Cables with a connection cross-section of 1.5 mm² or 2.5 mm² and a cable diameter of 8-14mm can be connected. Thanks to improved testing for protective conductor interruptions already approx. 1kΩ, glove detection (device cannot be switched on even with an insulating glove in case of an error) and the comprehensive function test by checking the entire signal chain from the protective conductor monitoring up to the FI switching function, the safety is additionally increased. In addition, the mobile personal protection convinces by the following features:

* Protection class: IP55
* Rated voltage: 230V
* Rated current: 16A
* Rated power: 3680W
* Rated fault current: IΔn = 30mA
* All-pole (L/N/PE) switching residual current circuit breaker type A.
* Undervoltage release
* No automatic power-on after voltage recovery
* Do not switch on when the protective conductor is open or live
* As soon as voltage is present on the protective conductor during operation or the protective conductor is interrupted, the protective device switches off
* If external voltage occurs on the protective conductor, e.g. by drilling on a line of another circuit, the protective device does not switch off the protective conductor
* For construction site use according to DGUV 203-006 (ex BGI 608) and constant outdoor application
* Highly recommended on construction and assembly sites and sponsored by BG construction
* PRCD according to VDE 0661
* Category 2 equipment (K2 DGUV 203-005): Use for rough operation with high mechanical, physical and chemical influences
