Buy Brennenstuhl 1290720011 RCCB in-line switch PRCD 230 V Black IP66

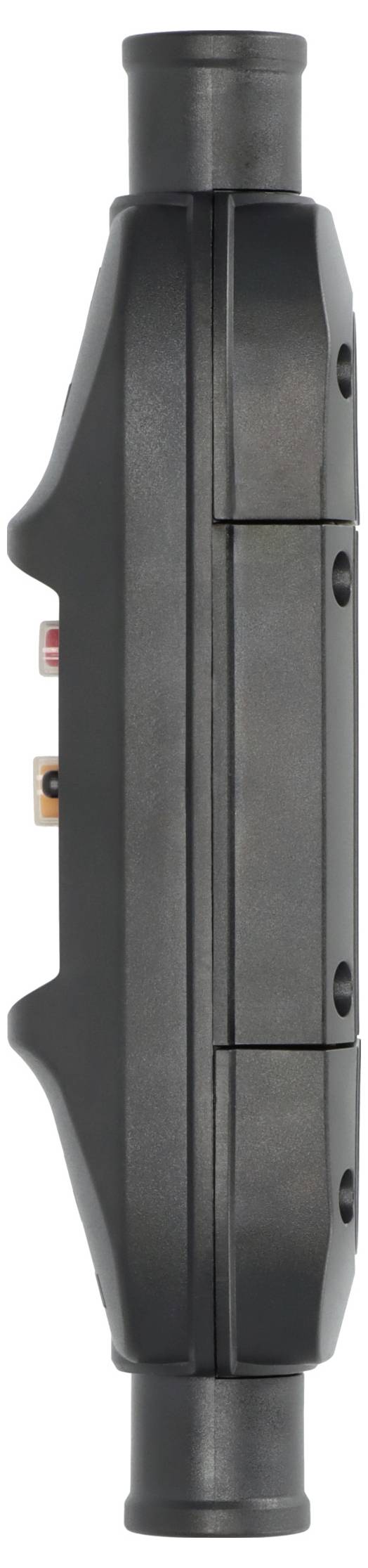

Black in-line device with hose connectors at both ends and red/orange buttons, likely a remote control or switch module.<br>

Mobile residual current device on gravel with imprint 'Safe on the go – with mobile personal protection.' together with RCD-SAFETY and IP66 symbols.

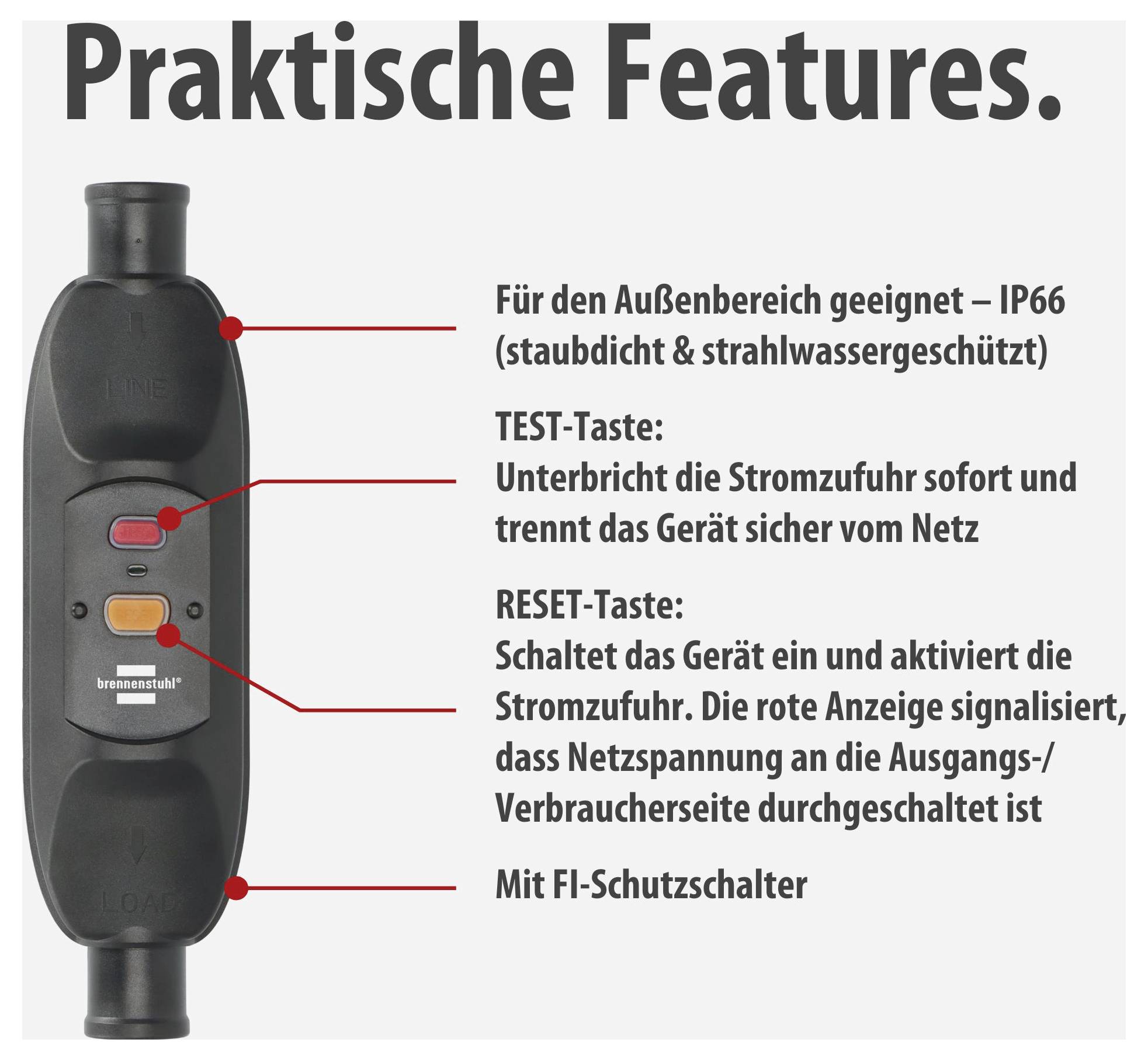

Illustration of a weatherproof intermediate plug with 'TEST' and 'RESET' functions and RCD (residual current circuit breaker); suitable for outdoor areas to IP66 standard.

Advertising poster for a residual current device plug adapter: emphasises reliable personal protection, technical specifications and versatile applications.

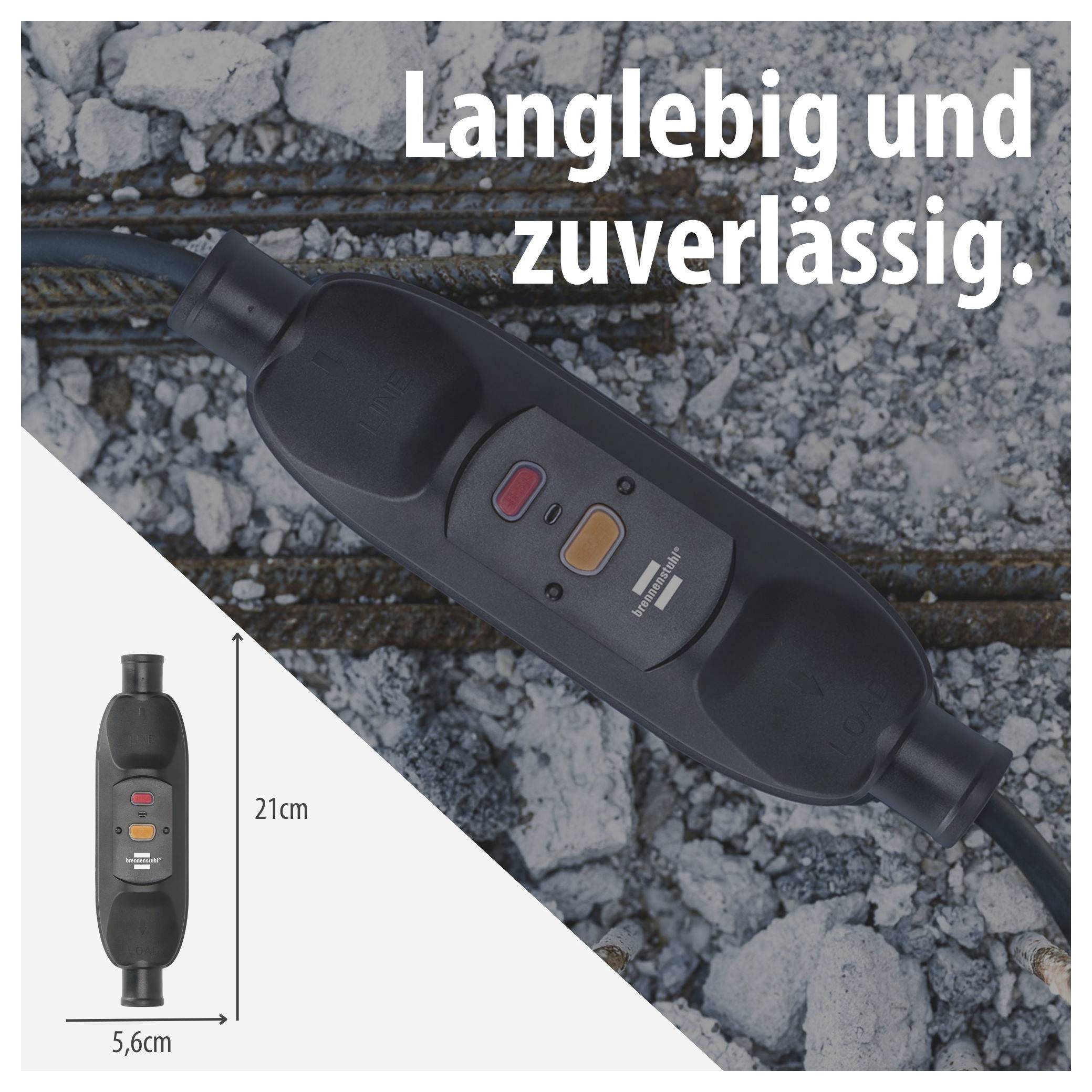

Product photograph of a black cable connector on gravel with the text 'Durable and reliable.' along with dimensions: 21 cm long, 5.6 cm wide.

1/6

Product type

RCCB in-line switch

Nominal voltage

230 V

Load (max.)

16 A

Features

+ PRCD

Connector version

straight

Datasheet (PDF)

Fast track dispatch on Mon, 21 Sep

53 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 30.24 / piece)

€ 30.24

plus VAT.

14 days return policy included

Report legal concerns

Highlights & Details

Brennenstuhl PRCD mobile Personal protection-intermediate switch BDI-Z 1 10 IP66 for cable mounting (with FI-protective switch for outdoor 10mA, double-pole disconnection)

Reliable person protection with a rated fault current of 10 mA.
The effective protection against electric shocks. Quickly separates the active conductor from the mains as soon as there is residual current.
For connection at extension lines, cable drums, power distributors and electrical devices.
Two-pin shutdown.
Suitable for 3G0,75² to 3G2,5² cables

Technical specifications

With FI switch: Yes
With protective conductor monitoring: No.
Test residual current 10 mA
Protection class: IP66

Product type: RCCB in-line switch

Features: + PRCD

Connector version: straight

Nominal voltage: 230 V

Load (max.): 16 A

Factory colour: Black

: IP66

Dim: (L x W x H) 210 x 56 x 50 mm

Width: 56 mm

Height: 50 mm

Length: 210 mm

Type: PRCD

Residual current type: A

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3638559 Brennenstuhl 1290720011 RCCB in-line switch PRCD 230 V Black IP66

User & Safety Instructions

User & Safety Instructions 3638559 Brennenstuhl 1290720011 RCCB in-line switch PRCD 230 V Black IP66

Description

The personal protection intermediate switch BDI-Z of Brennenstuhl with the protection class IP66 is used for protection against dangerous electrical shocks. Thanks to the intermediate switch type A, fault currents are detected immediately and are separated at lightning speed from the mains.

This text is machine translated.

Scope of delivery

PRCD mobile Personal protection-intermediate switch BDI-Z 1 10 IP66
