Brockhaus Heuer Hex attachment 193140 Jaw width: 140 mm
EAN:
Part number:
Item no:
Number
Total (€ 62.18 / piece)
€ 62.18
plus VAT.
Technical specifications
- Hexagon 19 mm
- For spindle head-Ø 31.5 mm
- For spindle wrench Ø 13 mm
- Max torque: 150 Nm
- max. Clamping force vice 30 kN
- Product type
Hex attachment
- Features
Hardened steel jaws
- Jaw width
140 mm
- Tension
30 kN
- Material
Steel
- Weight
350 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3385492 Brockhaus Heuer Hex attachment 193140 Jaw width: 140 mm
Description

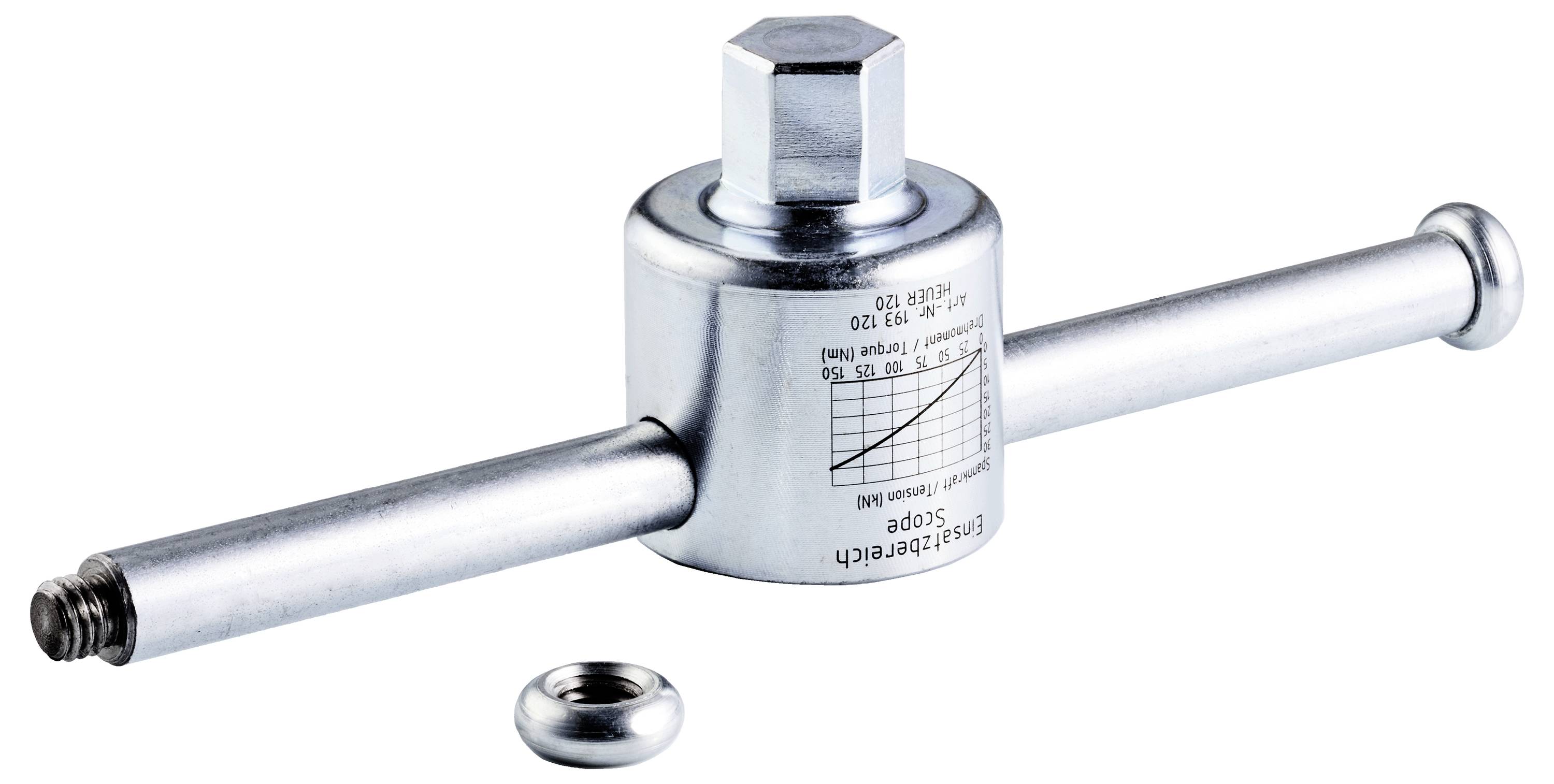

With the Heuer hexagonal attachment, the clamping can be carried out using a torque wrench, for example.

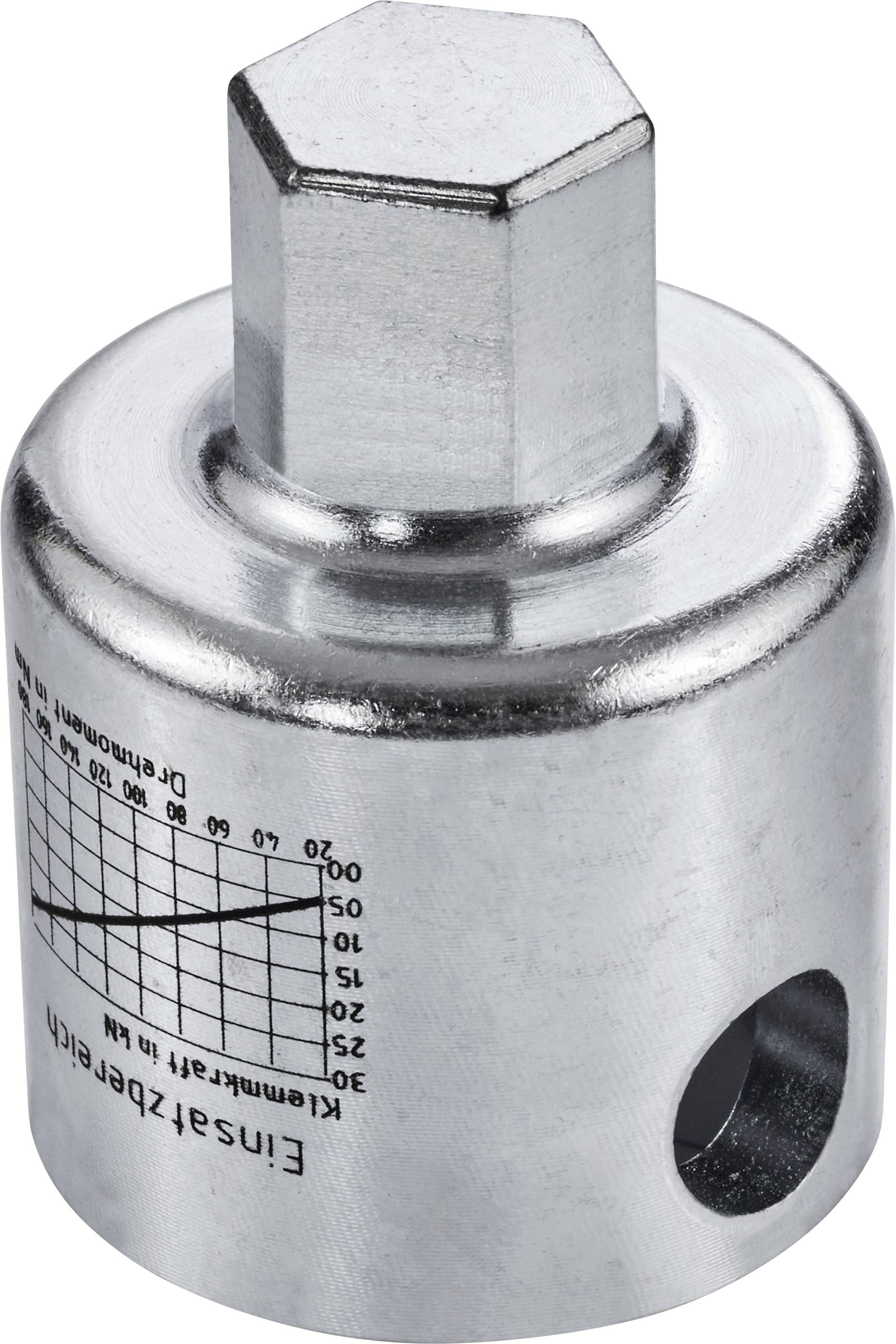

For instance, if you want to clamp your workpieces with a specific, constant clamping force using a torque wrench, you have the appropriate add-on with the Heuer hexagonal attachment. The closed Heuer hexagon attachment is made of hardened galvanized steel and is placed directly on the spindle head after removing the spindle key. After inserting the spindle wrench, it is firmly and securely connected to the vice spindle.
Securely connected to the vice thanks to the closed design. Design with 19 mm or 21 mm hexagonal holder, e. g. for a torque wrench.
This text is machine translated.
For instance, if you want to clamp your workpieces with a specific, constant clamping force using a torque wrench, you have the appropriate add-on with the Heuer hexagonal attachment. The closed Heuer hexagon attachment is made of hardened galvanized steel and is placed directly on the spindle head after removing the spindle key. After inserting the spindle wrench, it is firmly and securely connected to the vice spindle.
Securely connected to the vice thanks to the closed design. Design with 19 mm or 21 mm hexagonal holder, e. g. for a torque wrench.
