Camille Bauer 175316 Signal converter 1 pc(s)
Product type
Signal converter
Input signal (voltage) (max.)
500 V
Type
175316
Dim
(L x W x H) 106.5 x 43.75 x 65.5 mm
Connection
Clamp
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 435.00 / piece)
€ 435.00
incl. VAT
Only 3 Piece(s) available
Technical specifications
- Type
175316
- Product type
Signal converter
- Input signal (voltage) (max.)
500 V
- Dim
(L x W x H) 106.5 x 43.75 x 65.5 mm
- Connection
Clamp
- Output (voltage)
0 - 10 V
- Output (current)
4 - 20 mA
- Operating voltage
60 - 300 V DC/AC
- Max. operating voltage
300 V DC/AC
- Min. operating voltage
60 V DC/AC
- Input signal (voltage)
100 - 500 V
- Input signal (current)
0 - 5 A
- Content
1 pc(s)
- Configuration
Software
- Width
43.75 mm
- Height
65.5 mm
- Length
106.5 mm
- Max. ambient temperature
45 °C
- Min. ambient temperature
0 °C
Documents & Downloads
Datasheet
Datasheet 2140414 Camille Bauer 175316 Signal converter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2140414 Camille Bauer 175316 Signal converter 1 pc(s)
Description

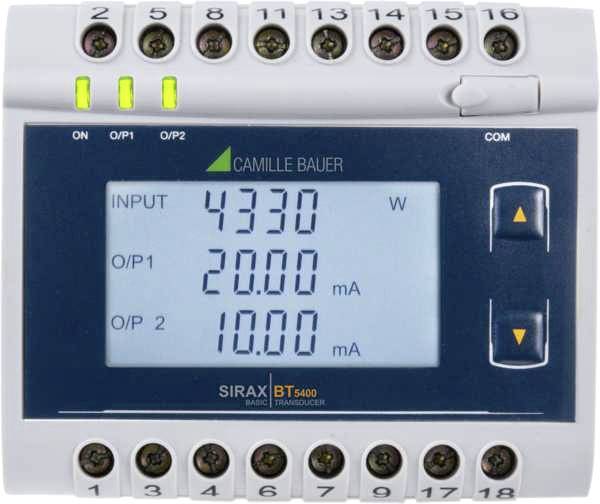

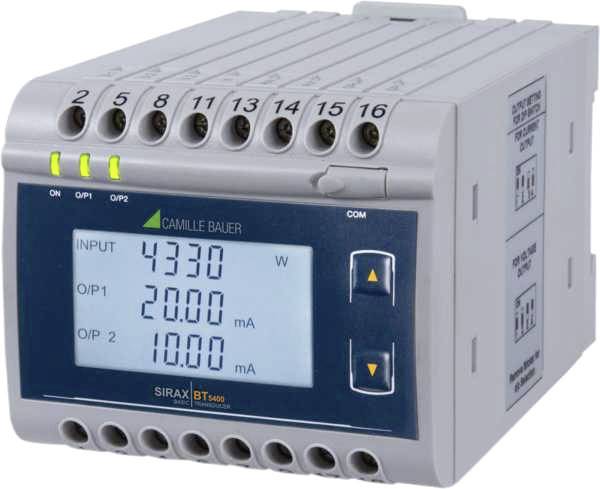

Measuring transducer for active/apparent/reactive power, phase angle and power factor.
The SIRAX BT5400 is used to measure and convert active power, apparent power, reactive power, phase angle and power factor of single-phase or three-phase AC systems with symmetrical or asymmetrical load into a proportional DC or DC output signal.
This text is machine translated.
The SIRAX BT5400 is used to measure and convert active power, apparent power, reactive power, phase angle and power factor of single-phase or three-phase AC systems with symmetrical or asymmetrical load into a proportional DC or DC output signal.
This text is machine translated.
Features
- Type of connection single-phase, 3-phase 3-conductor equal or unequally loaded or 3-phase 4-conductor equal or unequally loaded
- Measuring input for power
- Nominal voltage up to 500 V, nominal current 1 / 5 A.
- 2 configurable analogue outputs linear or with bend and a range unipolar of
- 0…20 mA / 4…20 mA or 0…10 V or
- Bipolar from -20…0 mA or -10…0…+10 V.
- Quick on-site programming by push buttons or via CB Configurator software
- Simple on-site device operation
- Clear and easy-to-read display of measurement data via LCD display
- Flexible communication and remote reading via integrated Modbus RTU interface
- DIN rail mounting
- Basic accuracy 0.2 %, basic accuracy phase angle, power factor 0.5 %
- CB Configurator
- The CB Configurator software makes it even easier to program the measured values.
Scope of delivery
- 1x SIRAX BT5400
- 1x Operating instructions
