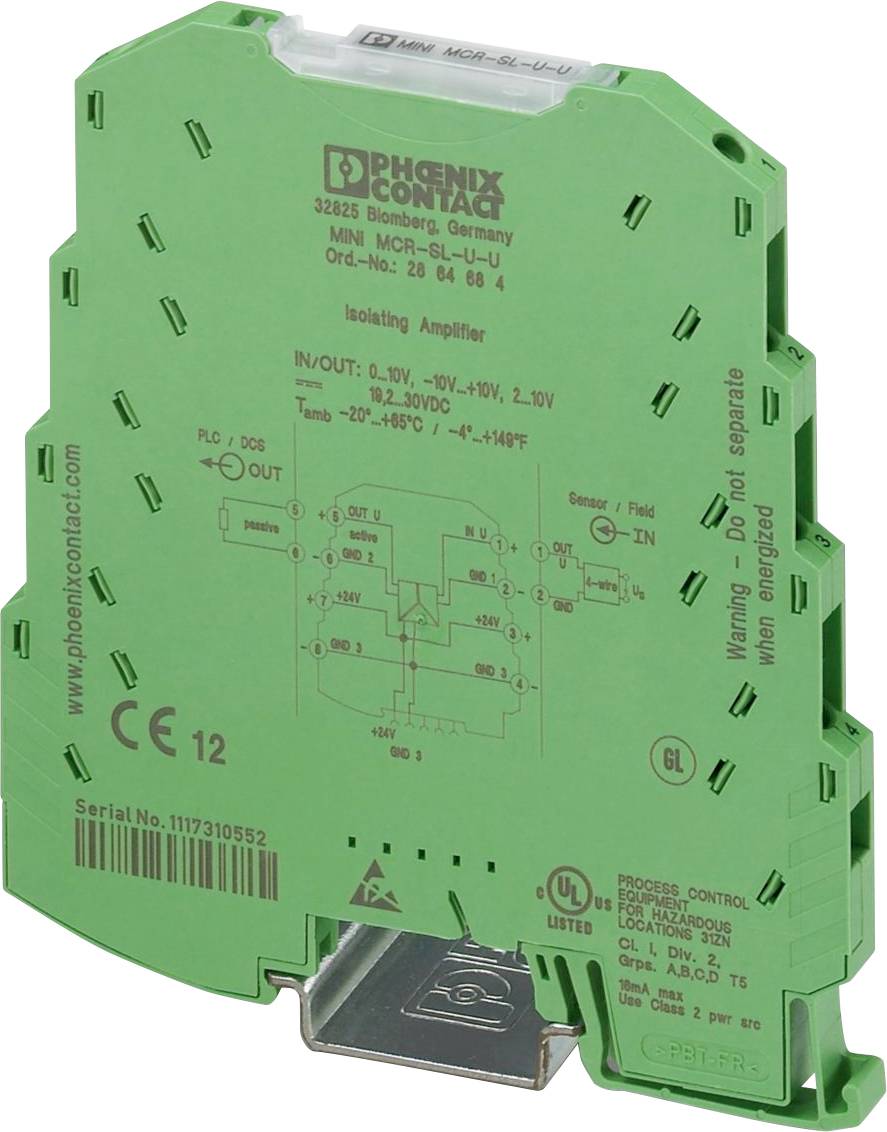

Isolating amplifier MINI MCR-SL-U-U 2864684 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Isolation amplifier
Input signal (voltage) (max.)
30 V
Type
MINI MCR-SL-U-U
Dim

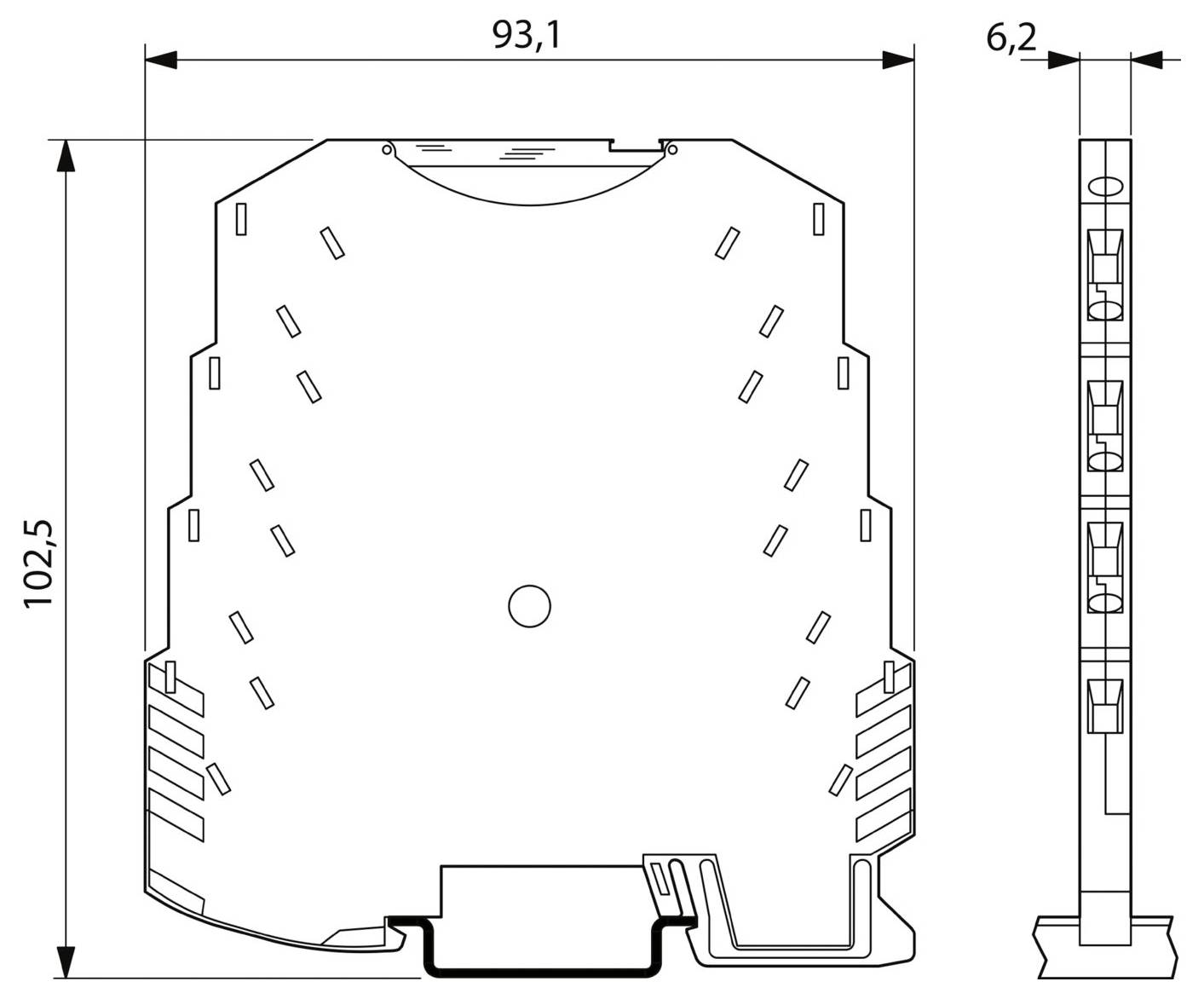

(L x W x H) 101.2 x 6.2 x 93.1 mm
Connection
Screws
Datasheet (PDF)
Number
Total (€ 251.26 / piece)
€ 251.26
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Type
MINI MCR-SL-U-U
- Product type
Isolation amplifier
- Input signal (voltage) (max.)
30 V
- Dim
(L x W x H) 101.2 x 6.2 x 93.1 mm
- Connection
Screws
- Output (voltage)
0 V - 10 V
-10 V - 10 V
- Operating voltage
19.2 - 30 V DC
- Max. operating voltage
30 V DC
- Min. operating voltage
19.2 V DC
- Input signal (voltage)
0 V - 10 V
-10 V - 10 V
- Input resistance
100 kΩ
- Content
1 pc(s)
- Width
6.2 mm
- Height
93.1 mm
- Length
101.2 mm
- Supply voltage (num.)
24 V DC
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 788741 Isolating amplifier MINI MCR-SL-U-U 2864684 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 788741 Isolating amplifier MINI MCR-SL-U-U 2864684 Phoenix Contact
Description

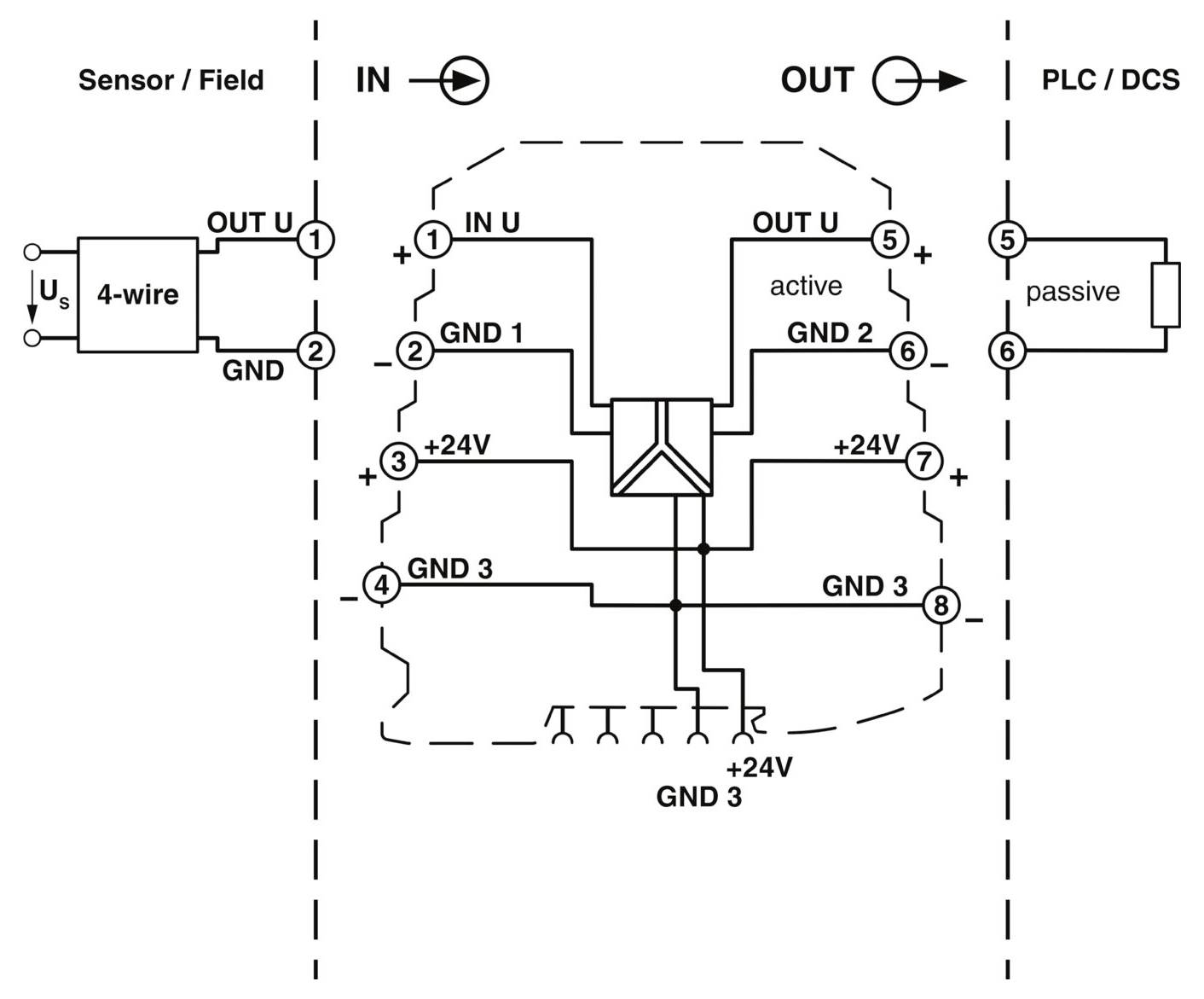

MCR 3-way isolating amplifier, for electrical isolation of analog signals, with screw connection, input signal: 0 ... 10 V/±10 V, output signal: 0 ... 10 V/±10 V
