Buy Camille Bauer 175283 Signal converter 1 pc(s)

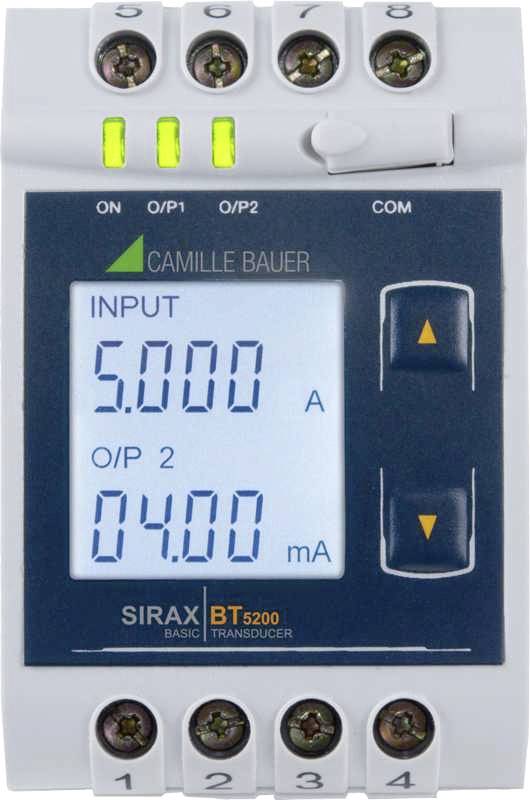

Measuring device with display showing 'INPUT 5.000 A' and 'O/P 2 04.00 mA'. Four connections at the bottom, status indicators top left.

A digital ammeter with a display showing '5,000 A' and '40,00 mA'. It has several connection terminals at the top.

1/2

Product type

Signal converter

Type

175283

Dim

(L x W x H) 106.5 x 43.75 x 65.5 mm

Connection

Clamp

Output (voltage)

0 - 10 V

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 247.90 / piece)

€ 247.90

plus VAT.

Only 10 Piece(s) available

Report legal concerns

Technical specifications

Type: 175283

Product type: Signal converter

Dim: (L x W x H) 106.5 x 43.75 x 65.5 mm

Connection: Clamp

Output (voltage): 0 - 10 V

Output (current): 4 - 20 mA

Operating voltage: 60 - 300 V DC/AC

Max. operating voltage: 300 V DC/AC

Min. operating voltage: 60 V DC/AC

Input signal (current): 0 - 5 A

Content: 1 pc(s)

Configuration: Software

Width: 43.75 mm

Height: 65.5 mm

Length: 106.5 mm

Max. ambient temperature: 45 °C

Min. ambient temperature: 0 °C

Documents & Downloads

Datasheet

Datasheet 2140435 Camille Bauer 175283 Signal converter 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2140435 Camille Bauer 175283 Signal converter 1 pc(s)

Description

Measuring transducer for AC current.
The transmitter SIRAX BT5200 is a DIN rail rail device that is used to convert an AC input current into a DC current or voltage output signal proportional to the measured value. The AC input current and output current/voltage are shown on the display and mapped on the Modbus interface.

This text is machine translated.

Features

Connection type single-phase (current)
2 configurable analogue outputs linear or
With kink in a range of 0/4…20 mA, 0/2…10 V.
Quick on-site programming by push buttons or via CB Configurator software
Simple on-site device operation
Clear and easy-to-read display of measurement data via LCD display
Flexible communication and remote reading via integrated Modbus RTU interface
DIN rail mounting
0.2% basic accuracy
CB Configurator
The CB Configurator software makes it even easier to program the measured values.
