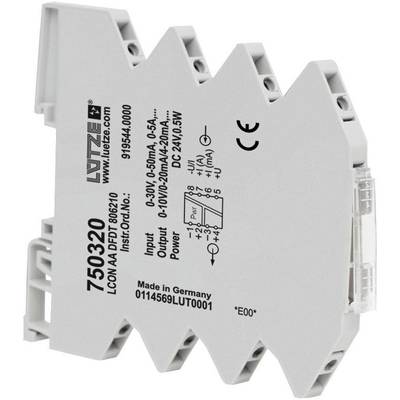

Lütze 750320 LCON AA DFDT 806210 Content: 1 pc(s)
EAN:
Part number:
Item no:
Type
LCON AA DFDT 806210
Dim
(W x H x D) 6.2 x 90 x 115.5 mm
Content
1 pc(s)
Configuration
DIP switch
Width
6.2 mm
Datasheet (PDF)
Number
Total (€ 201.67 / piece)
€ 201.67
plus VAT.
Technical specifications
- Insulation voltage 2.5 kV eff
- Type
LCON AA DFDT 806210
- Dim
(W x H x D) 6.2 x 90 x 115.5 mm
- Content
1 pc(s)
- Configuration
DIP switch
- Width
6.2 mm
- Height
90 mm
- Current consumption
18 mA
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-40 °C
- Depth
115.5 mm
IP20
- Frequency
1 kHz
- Connection
Screws 0.14 - 1.5 mm²
- Output signal
0 - 10 V/-10 - +10 V, 0 - 20 mA, 4 - 20 mA
- Input signal
+/-30 V / +/-50 mA/+/-5 A
- Supply voltage
24 V DC
- Input resistance
330 kΩ · 30 Ω/10 mΩ
Documents & Downloads
Datasheet
Datasheet 744591 Lütze 750320 LCON AA DFDT 806210 Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 744591 Lütze 750320 LCON AA DFDT 806210 Content: 1 pc(s)
Description
Parameterizable converter via software FDT/DTM or via DIP switch, 3-way galvanic isolation, 6.2 mm design. With green LED for status display.
This text is machine translated.
This text is machine translated.
Hints
Weitere technische Daten finden Sie im Datenblatt !
