WAGO 857-403 Universal Isolation Amplifier Content: 1 pc(s)
EAN:
Part number:
Item no:
Type
JUMPFLEX®
Dim

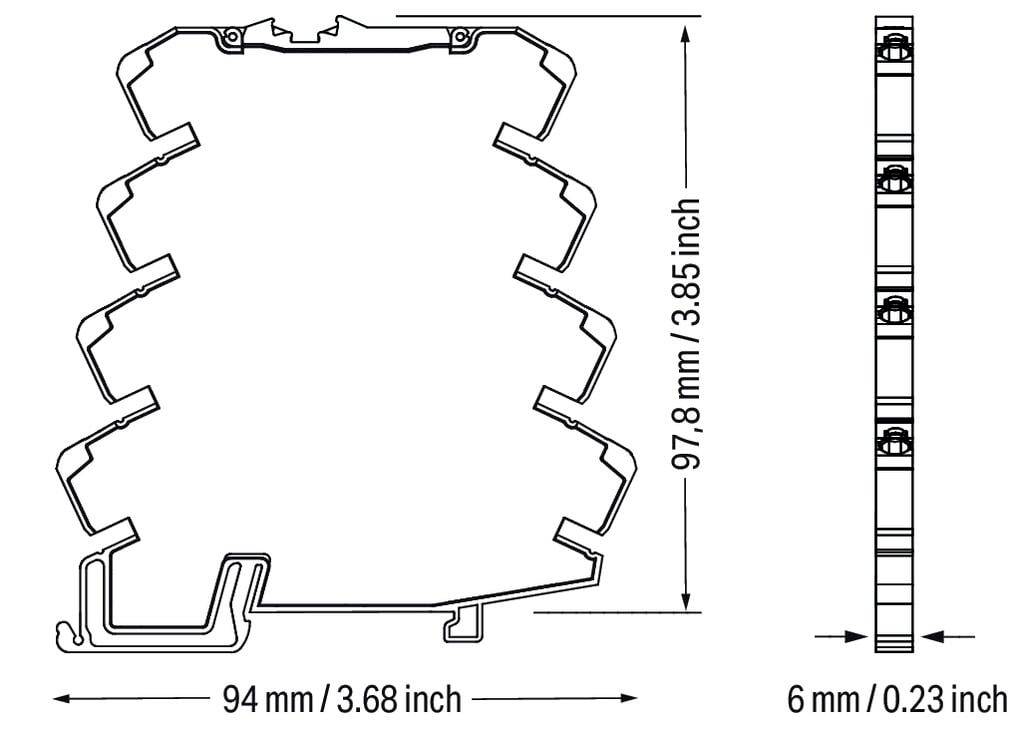

(L x W x H) 94 x 6 x 96 mm
Load
600 ohm
Input signal (voltage)
analoge uni- und bipolare Normsignale
Input signal (current)
analoge uni- und bipolare Normsignale
Number
Total (€ 306.72 / piece)
€ 306.72
plus VAT.
14-day return policy included
Highlights & Details
WAGO 857-403 Universal Isolation Amplifier Content: 1 pc(s)
- Jumpflex® measuring transducer
Technical specifications
- Transmission error: < 0.08% of final value
- Type
JUMPFLEX®
- Dim
(L x W x H) 94 x 6 x 96 mm
- Load
600 ohm
- Input signal (voltage)
analoge uni- und bipolare Normsignale
- Input signal (current)
analoge uni- und bipolare Normsignale
- Content
1 pc(s)
- Width
6 mm
- Height
96 mm
- Length
94 mm
- Current consumption
< 40 mA
- Insulation
Polyamide 6.6
- Type
Configuration via DIP switch
- Connection
Spring clamp
- Input signal
0 – 60 mV/0 – 100 mV/0 – 150 mV/0 – 300 mV/0 – 500 mV/0 – 1 V/0 – 5 V/0 – 10 V/2 – 10 V/0 – 100 V/0 – 200 V
- Supply voltage
24 V DC
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 739582 WAGO 857-403 Universal Isolation Amplifier Content: 1 pc(s)
Description
Measurement range switching is calibrated. The device requires DC 24 V supply voltage. It can be quickly and economically bridged via the side jumper bar. A green LED on the front of indicates normal operation.
