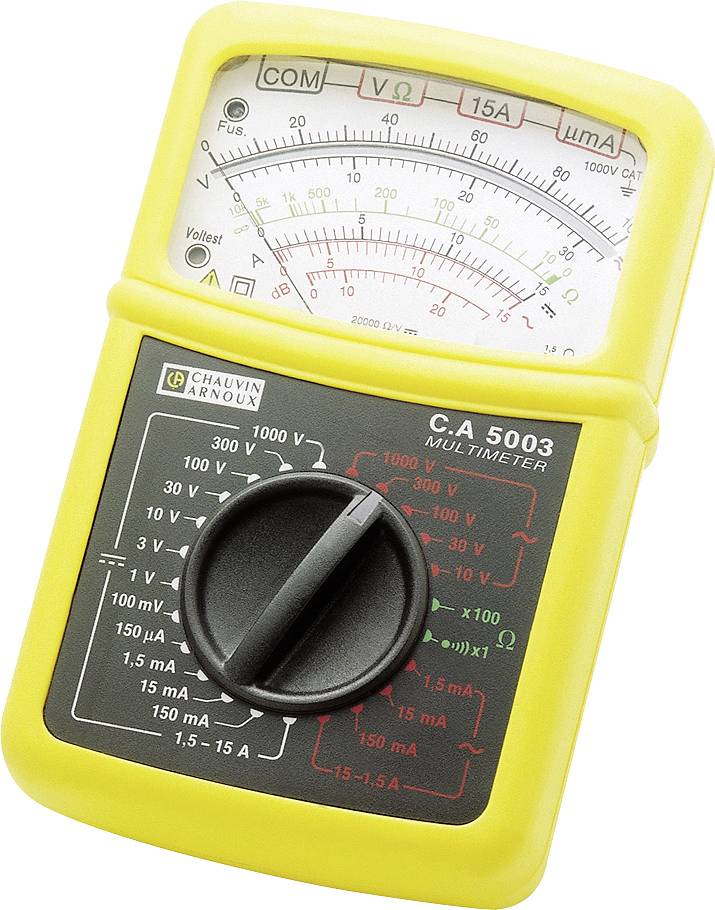

Chauvin Arnoux C.A 5003 Handheld multimeter Analogue CAT III 600 V

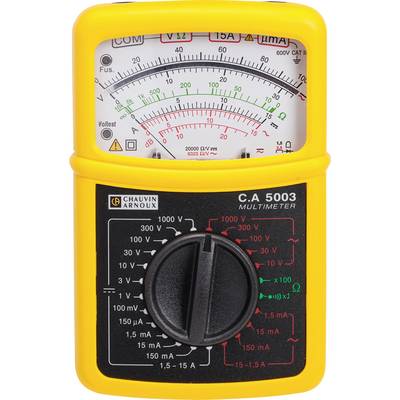

Analogue multimeter, yellow and black, with displays for voltage, current and resistance. Selector switch for range selection.

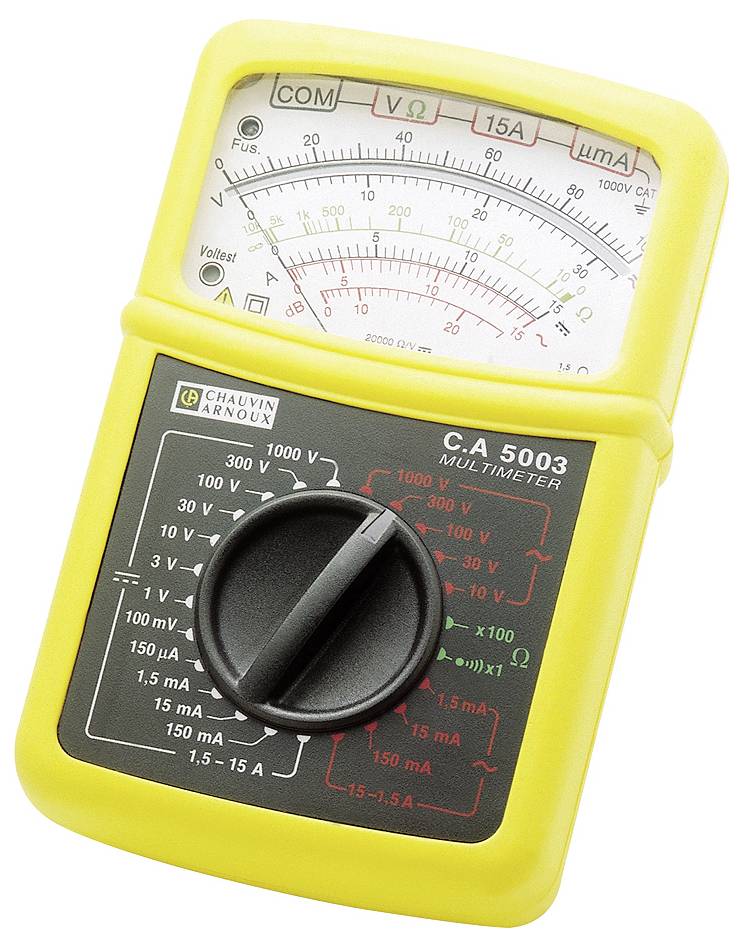

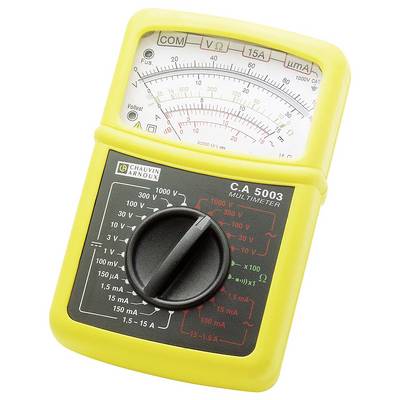

'Yellow analogue multimeter for measuring voltage, current, and resistance. Pointer indicates current readings on the scale.'
1/2
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Tue 3 Nov
2 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 505.00 / piece)
€ 505.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 2 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

C.A 5003

  • Analogueue multimeter with compact and shock-proof casing with folding standWith "Fus" indicator light to indicate the status of the fuses for the current measuring rangesOffers µA measurement range for particularly small currentsWith electronic protection and high-performance fusesAutomatic zero adjustment in the ohmmeter function"Full test" illuminated display indicates the presence of external voltages during resistance measurement and continuity testBASIC FUNCTIONS: V AC, V DC, A AC, A DC, RESISTANCE, Acoustic Continuity testing

Technical specifications

Product type

Handheld multimeter

Voltage DC reading range (max.)

1000 V

V AC reading range (max.)

1000 V

A DC reading range (max.)

15 A

Amperage reading range AC (max.)

15 A

DC resistance

20 kΩ/V

Frequency range

50 - 400 Hz

Interfaces

none

Power supply (details)

9V block battery

Height

160 mm

Width

105 mm

Length

56 mm

Weight

500 g

Manufacturer's standards (no certificate)

Reading category

CAT III 600 V

Voltage metering

AC

DC

Current reading

AC

DC

Type

C.A 5003

Display

Analogue

Dim

(L x W x H) 56 x 105 x 160 mm

Reading category

CAT III 1000 V

Documents & Downloads

Datasheet

Datasheet 1195126 Chauvin Arnoux C.A 5003 Handheld multimeter Analogue CAT III 600 V

User & Safety Instructions

User & Safety Instructions 1195126 Chauvin Arnoux C.A 5003 Handheld multimeter Analogue CAT III 600 V

User & Safety Instructions 1195126 Chauvin Arnoux C.A 5003 Handheld multimeter Analogue CAT III 600 V

Description

The C.A 5003 is an analogueue multimeter at an affordable price that meets all the measurement requirements of electricians.

This text is machine translated.

Scope of delivery

  • 1 battery (9 V pack)
  • 1 set of test leads
  • Bag
  • Operating instructions
