Name: Chauvin Arnoux C.A 6503 Insulation tester 250 V, 500 V, 1000 V 5000 MΩ
Brand: Chauvin Arnoux
SKU: 103456
Availability: InStock

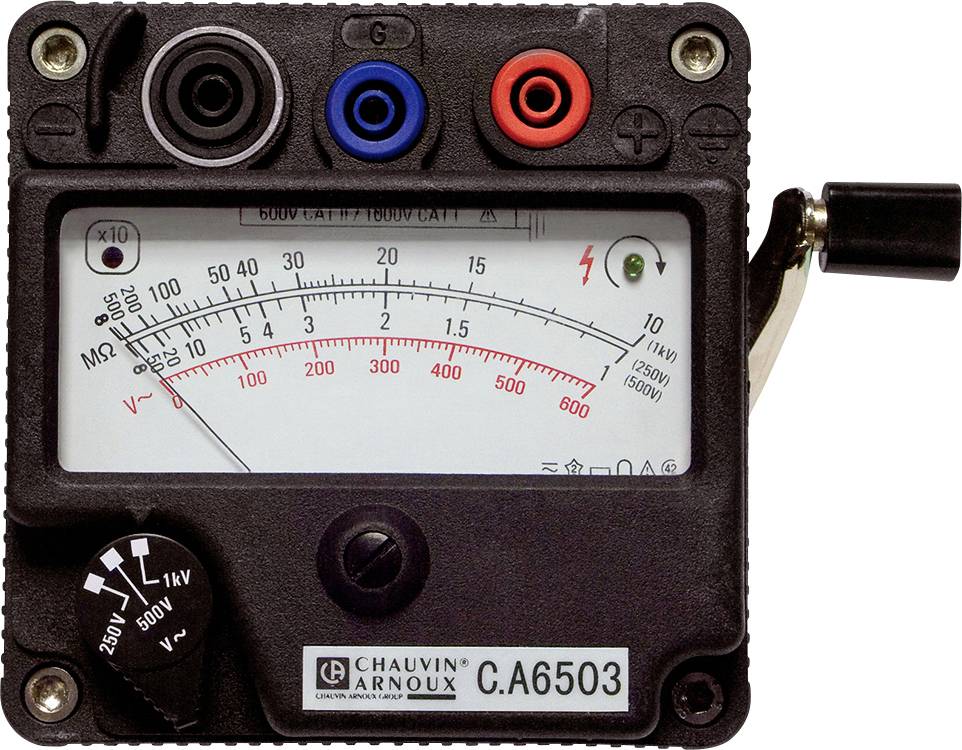

Analogue voltage tester with measurement scale for ohms, volts and amperes. Pointer indicates reading on scale. Connection sockets at the top. Model 'C.A6503'.

Analogue measuring device with a pointer and cables, showing electrical measurements. Metallic back panel in the background, black carrying strap.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,019.00 / piece)

€ 1,019.00

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Insulation measurement C.A 6503

100% operational, 0% power consumption
Insulation measurements up to 5000 MΩ (with constant test voltages 250/500/1000 V/DC)
Automatic switchover
Robust housing suitable for installation
Indicator light for correct measuring conditions
Additional terminal to prevent measuring errors due to leakage currents

Technical specifications

Power supply: by crank inductor with constant test voltage

Product type: Insulation tester

Test voltage: 250 V
500 V
1000 V

Reading type: Insulation resistance

: Manufacturer's standards (no certificate)

: IP54

Dim: (L x W x H) 12 x 12 x 13 cm

Weight: 1.5 kg

Display type: Analogue

Insulation resistance (max.): 5000 MΩ

Voltage reading range (max.): 600 V AC

Voltage reading range (min.): 0 V

Reading category: CAT II 600 V
CAT III 300 V

Width: 12 cm

Height: 13 cm

Length: 12 cm

Documents & Downloads

Datasheet

Datasheet 103456 Chauvin Arnoux C.A 6503 Insulation tester 250 V, 500 V, 1000 V 5000 MΩ

User & Safety Instructions

User & Safety Instructions 103456 Chauvin Arnoux C.A 6503 Insulation tester 250 V, 500 V, 1000 V 5000 MΩ

Description

The portable, light and compact insulation meter C.A 6503 is mains-independant with the power supply via the inductor.

The device suitable for construction site use at all times is suitable for power and telecommunication networks in industry and living areas.

It can be used in a wide range of applications, such as testing the conformity of electrical systems with applicable standards or maintenance of cables, motors, residual current circuit breakers, transformers, etc.

This text is machine translated.

Features

Absolutely constant test voltage
Automatic measurement range switching
Automatic discharge of the measuring circuit after the insulation measurement
Standard-compliant measurements according to DIN VDE 0100, NIN/NIV, ÖVE E 8001, etc.

Scope of delivery

1 carrying case
3 test leads 1.5 m PVC (red+blue+black)
3 alligator clips (red+blue+black)
1 test tip (sw)

Description

Features

Absolutely constant test voltage
Automatic measurement range switching
Automatic discharge of the measuring circuit after the insulation measurement
Standard-compliant measurements according to DIN VDE 0100, NIN/NIV, ÖVE E 8001, etc.
