Buy Chauvin Arnoux C.A 850 Pressure gauge Pressure -6.89 - 6.89 bar

Digital capacitance measuring device CA850 in front of a black case. Two orange spiral cables and a yellow manual beside it.

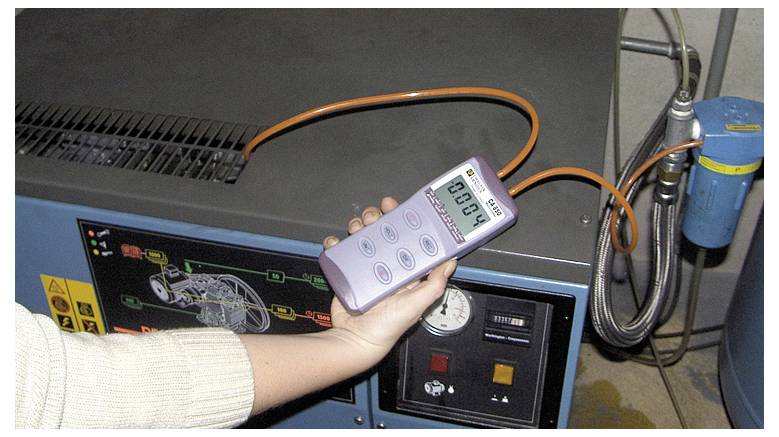

A person is holding a measuring device displaying the value '0.004' in front of an electrical device with an orange cable in an industrial setting.

1/3

Datasheet (PDF)

Dispatches on Wed, 30 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 735.29 / piece)

€ 735.29

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Pressure meter C.A. 850

Large display
Precise and easy to use
Robust housing
Monitoring Mode
Measurement of the differential pressure
Selectable units

Technical specifications

Product type: Pressure gauge

Reading range: -6.89 - 6.89 bar

Unit of measurement: Pressure

Pick-up time (details): 0.5 s

: Manufacturer's standards (no certificate)

Display range: 4000-digit LCD display

Print resolution: 4 mbar

Basic accuracy: 0.3 %

Excess pressure resistance: 10.33 bar

Dim: (L x W x H) 30 x 72 x 182 mm

Weight: 220 g

Resolution: 0.004 bar

Accuracy: 0.3 %

Reading range (max.): 6.89 bar

Reading range (min.): -6.89 bar

Width: 72 mm

Height: 182 mm

Length: 30 mm

Documents & Downloads

Datasheet

Datasheet 1882091 Chauvin Arnoux C.A 850 Pressure gauge Pressure -6.89 - 6.89 bar

User & Safety Instructions

User & Safety Instructions 1882091 Chauvin Arnoux C.A 850 Pressure gauge Pressure -6.89 - 6.89 bar

Description

The pressure tester C.A 850 is ideal for the pressure level in air-conditioning systems, medical technical devices and air pressure monitoring system. Both the relative pressure is measured the pressure in psi in relation to the air pressure and differential pressure, i.e. the difference between the two pressure levels. It can be selected between 11 units: bar, mmHg, ozin 2, kg/cm2, inH2O, kPa, ftH2O, inHg, cmH2O, mbar.

This text is machine translated.
