Chauvin Arnoux EVSE-SET CA 6652 + CA 6133 + CA 762 IP2X Electrical tester set, VDE tester kit VDE standard 0100, 0105
EAN:
Part number:
Item no:
Number
Total (€ 1,849.00 / piece)
€ 1,849.00
incl. VAT
14-day return policy included
Highlights & Details
EVSE SET CA 6652 + CA 6133 + CA 762 IP2X
- Test device basic equipment for electrical safety testing at charging stations with residual current circuit-breaker type A in TT-networks
- Set for testing all electrical safety aspects of charging infrastructures according to the installation standard IEC 60364-7-722
- With CA 6652 test adapter for AC charging stations with Type 2 connector
- With CA 762 IP2X voltage tester for determining voltage-free
- With CA 6133 installation tester for the testing of electrical safety
- Supplied with: 1 CA 6652 test adapter for AC charging stations with type 2 plug including delivery, 1 CA 762 IP2X Two-pole voltage tester included in delivery, 1 CA 6133 installation tester included
Technical specifications
- Product type
Electrical tester set
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Interfaces
Bluetooth®
- Dim
(L x W x H) 223 x 70 x 126 mm
- Weight
700 g
IP54
- Reading range (VDE)
Insulation resistance
Loop impedance
Voltage
Resistance
RDC testing (AC, A)
Current
- DIN standard
DIN VDE 0100
DIN VDE 0105
- Display type
Digital (LCD)
- Width
70 mm
- Height
126 mm
- Length
223 mm
- Test procedure
automated
manual
- Voltage supply
Rechargeable
- Memory
Yes
- Type
EVSE-SET CA 6652 + CA 6133 + CA 762 IP2X
- VDE standard
0100
0105
- Features
incl. electric vehicle charging station adapter
RCD/FI testing
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3436210 Chauvin Arnoux EVSE-SET CA 6652 + CA 6133 + CA 762 IP2X Electrical tester set, VDE tester kit VDE standard 0100, 0105
Warranty Terms
Warranty Terms 3436210 Chauvin Arnoux EVSE-SET CA 6652 + CA 6133 + CA 762 IP2X Electrical tester set, VDE tester kit VDE standard 0100, 0105
Description
This basic test equipment for charging infrastructures, consisting of
• Installation tester CA 6133
• Test adapter for AC charging stations for electric vehicles CA 6652
• Voltage tester CA 762 IP2X
Is a complete solution for electrical safety testing at charging stations with FI-circuit breaker type A.
This set enables completely conformal testing of E-charging stations according to IEC 60364-7-722. The measurement results can be stored in the installation tester for easy creation of test reports.
IMPORTANT: This set is only suitable for TT networks.

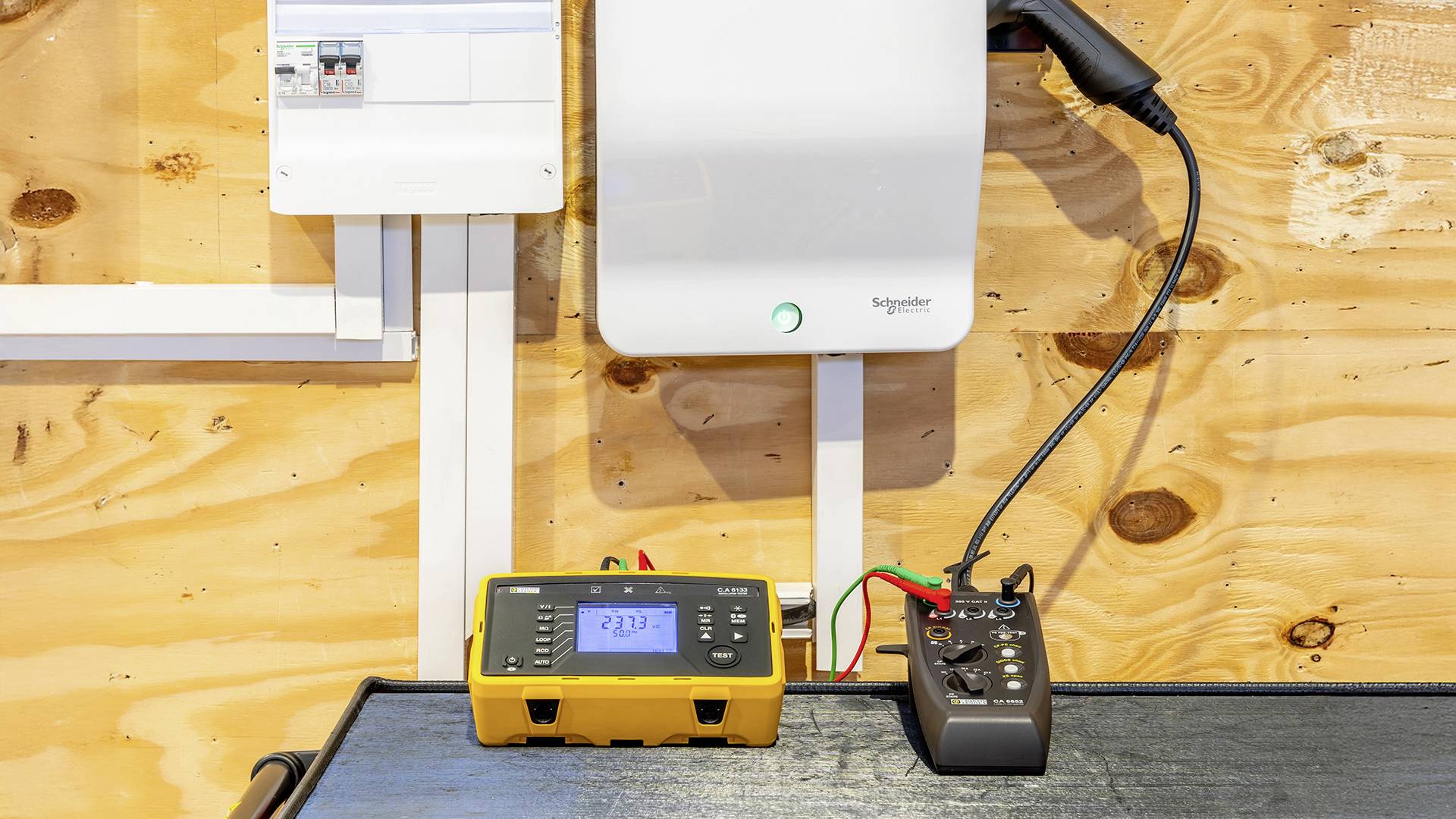

Simulate the vehicle status and the safety conditions of charging stations with the help of the test adapter: Detection of dangerous voltages on touchable parts (PE), simulation of the states of the electric vehicle, simulation of the maximum permissible charging current for the cable, error simulation (short-circuit CP-PE, diode short-circuit, interruption of the PE) and check of the control signals (CP) with optional hand oscilloscope.

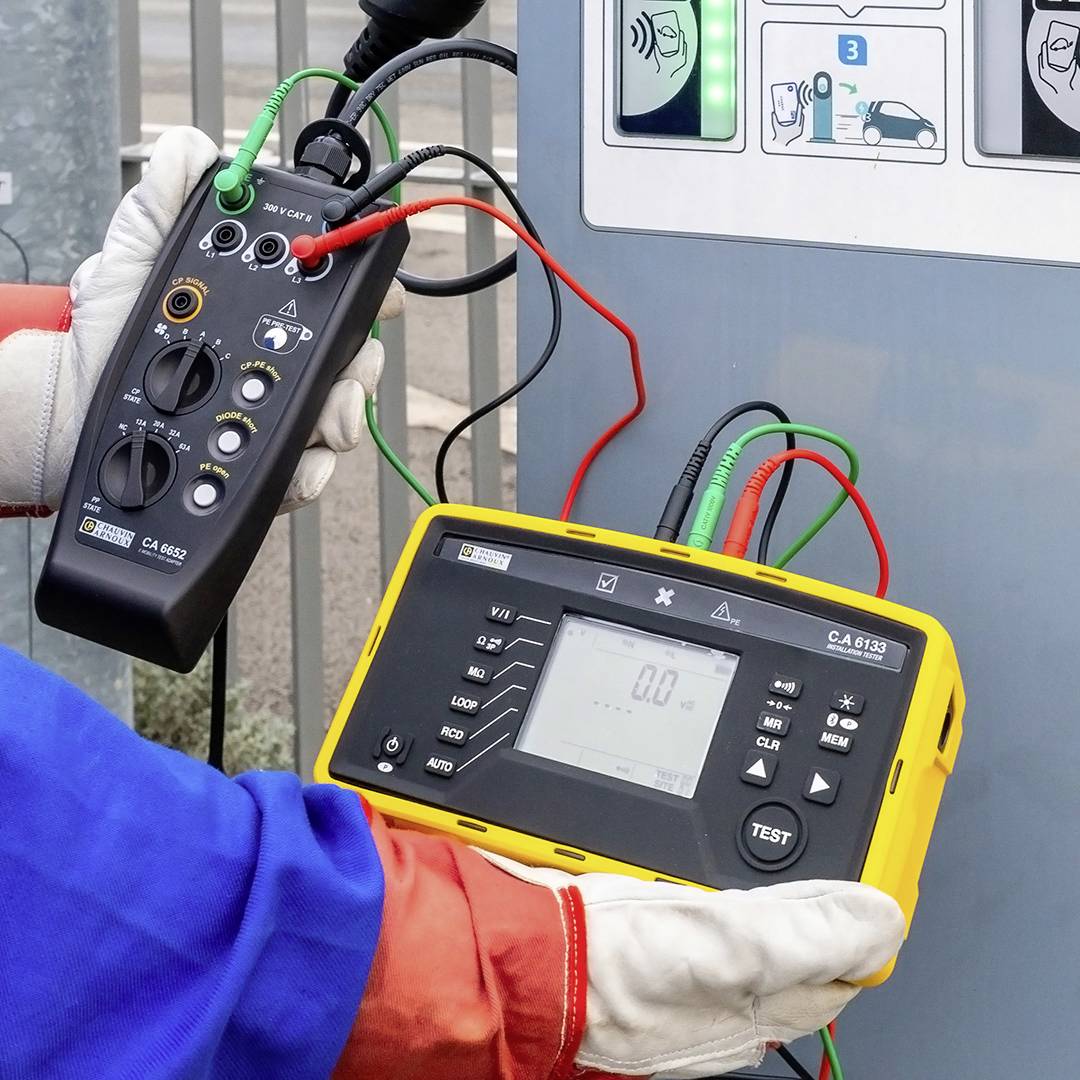

With the combination of installation tester and test adapter for AC charging stations, you can perform the necessary electrical safety tests on the AC charging stations: Continuity and insulation test, electrical safety test of the charging station in one or three-phase operation, functional test of the FI protective switch type A / AC.
You complete your review by creating a test report using the Android APP.
This text is machine translated.
• Installation tester CA 6133
• Test adapter for AC charging stations for electric vehicles CA 6652
• Voltage tester CA 762 IP2X
Is a complete solution for electrical safety testing at charging stations with FI-circuit breaker type A.
This set enables completely conformal testing of E-charging stations according to IEC 60364-7-722. The measurement results can be stored in the installation tester for easy creation of test reports.
IMPORTANT: This set is only suitable for TT networks.
Simulate the vehicle status and the safety conditions of charging stations with the help of the test adapter: Detection of dangerous voltages on touchable parts (PE), simulation of the states of the electric vehicle, simulation of the maximum permissible charging current for the cable, error simulation (short-circuit CP-PE, diode short-circuit, interruption of the PE) and check of the control signals (CP) with optional hand oscilloscope.
With the combination of installation tester and test adapter for AC charging stations, you can perform the necessary electrical safety tests on the AC charging stations: Continuity and insulation test, electrical safety test of the charging station in one or three-phase operation, functional test of the FI protective switch type A / AC.
You complete your review by creating a test report using the Android APP.
This text is machine translated.
Scope of delivery
- 1 CA 6652 EVSE test adapter with delivery
- 1 CA 6133 Installation tester
- 1 CA 762 IP2X two-pole voltage tester
