Buy Chauvin Arnoux Mini 02 Clamp meter adapter A/AC reading range: 50 mA - 100 A

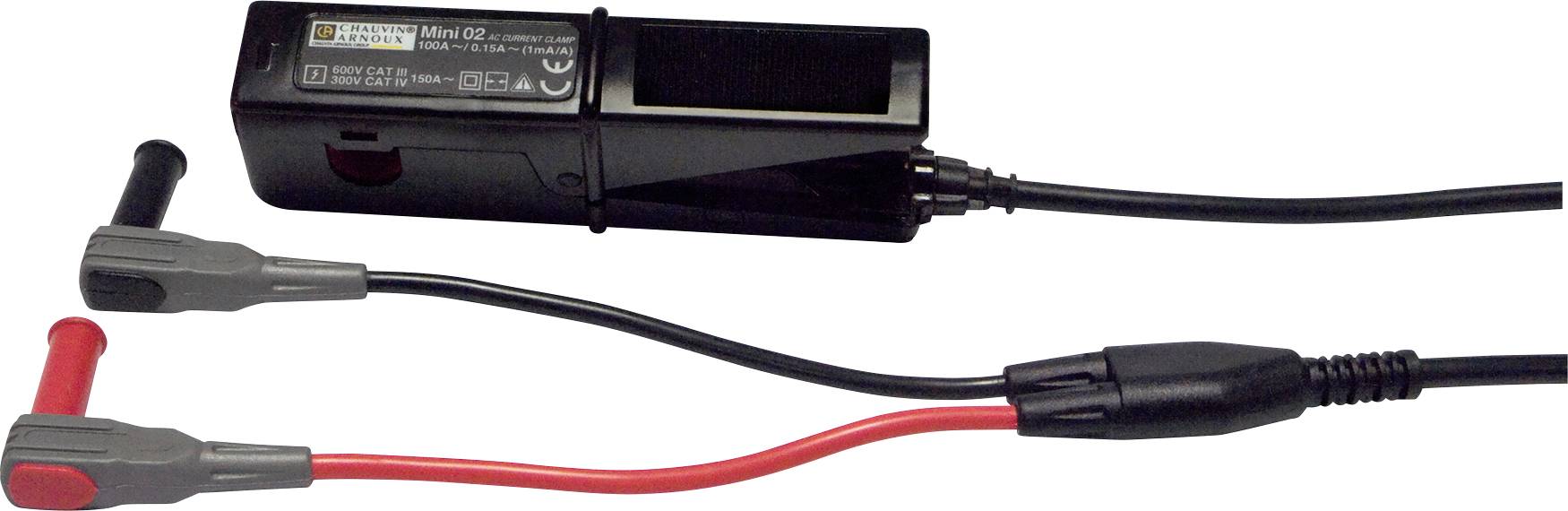

A black electrical device with two cables terminating in red and grey terminals. It appears to be used for electronic measurements.

Datasheet (PDF)

Fast track dispatch on Wed, 9 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 121.84 / piece)

€ 121.84

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

MINI-pliers - small and compact!

N/A
Opening range of current clamps 10 mm

Technical specifications

Transmission ratio (input/output): 1000/1

Opening range of current clamps: 10 mm

Basic accuracy: 1 %

Dim: (L x W x H) 25 x 130 x 37 mm

Weight: 180 g

Type B: 4 mm plug

Current reading: AC

Height: 37 mm

Length: 25 mm

Width: 130 mm

Max. frequency: 10 kHz

: Manufacturer's standards (no certificate)

Reading category: CAT III 600 V
CAT IV 300 V

Amperage reading range AC (max.): 100 A

A AC reading range (min.): 50 mA

Output signal (max.): 0.15 A

Product type: Clamp meter adapter

Variants(All information is without VAT, plus shipping costs)

Amperage reading range AC (max.)

Calibrated to

Type B

A AC reading range (min.)

Reading category

Current reading

Chauvin Arnoux D30CN Clamp meter adapter A/AC reading range: 1 - 3600 A

Item no:2199864

3600 A

Manufacturer's standards (no certificate)

4 mm plug

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C113 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199882

1200 A

Manufacturer's standards (no certificate)

4 mm plug

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C122 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199884

1200 A

Manufacturer's standards (no certificate)

4 mm socket

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C100 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199893

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C106 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199908

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C112 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199911

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C102 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199915

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C117 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199916

1200 A

Manufacturer's standards (no certificate)

4 mm plug

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C107 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199925

1200 A

Manufacturer's standards (no certificate)

4 mm plug

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C148 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199926

1200 A

Manufacturer's standards (no certificate)

4 mm socket

1 A

CAT III 600 VCAT IV 300 V

Documents & Downloads

Datasheet

Datasheet 2199890 Chauvin Arnoux Mini 02 Clamp meter adapter A/AC reading range: 50 mA - 100 A

User & Safety Instructions

User & Safety Instructions 2199890 Chauvin Arnoux Mini 02 Clamp meter adapter A/AC reading range: 50 mA - 100 A

Description

The jaws of the MINI 02 clamp transformer are equipped with a high-magnetic material and two coils to ensure good linearity and improved performance.
The small, compact clamp meter is ideal for alternating current measurement in applications with low power in the commercial and industrial sector.
THE MINI 02 clamp has a surge protector that protects it when disconnecting the meter when there is voltage on the included lines.

This text is machine translated.

Scope of delivery

1 user manual
