Name: Contact socket Socket, horizontal mount MUB1B5SMD 1 Port MUB1B5SMD econ connect Content: 1 pc(s)
Brand: econ connect
SKU: 1311510
Availability: InStock

A micro-USB port in close-up, showing the pins and metallic structure, used for charging and data transfer of devices.

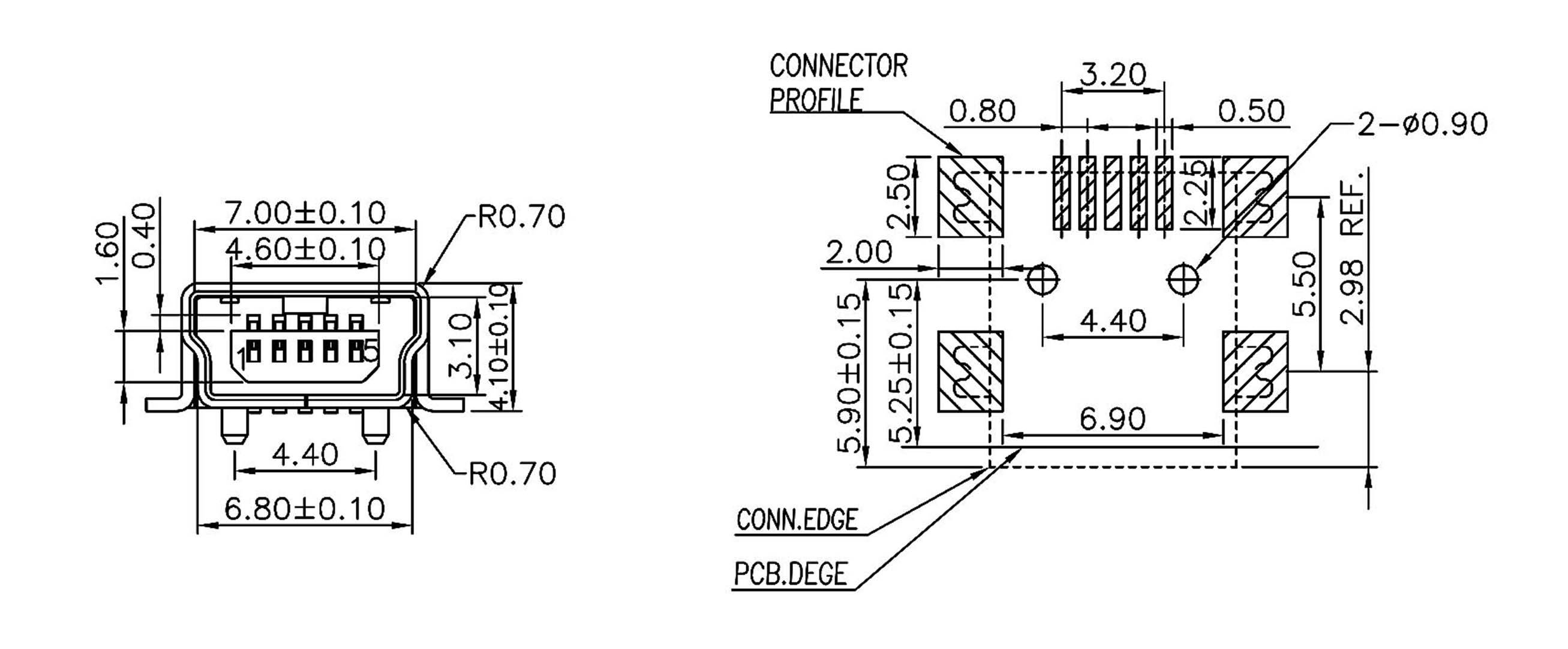

Technical drawing of a connector with dimensions in millimetres and detailed view of the connections.

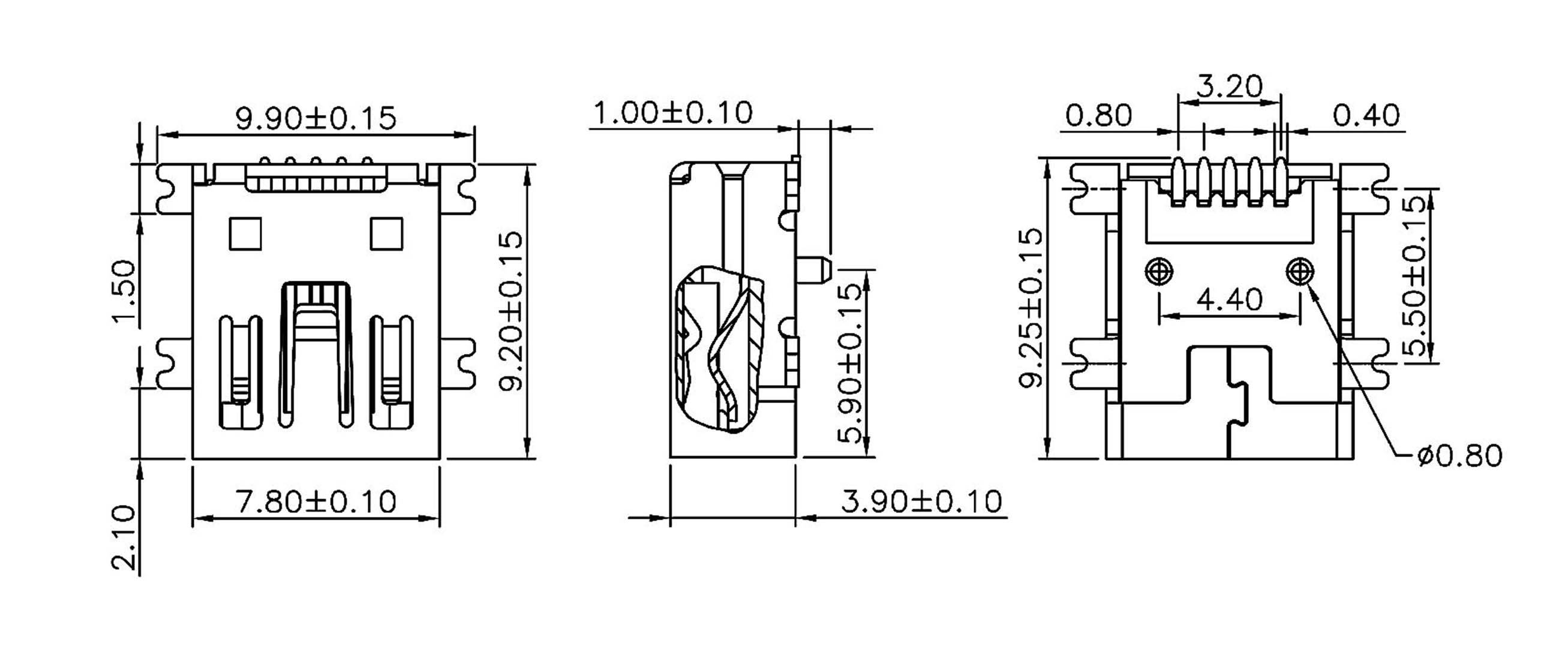

Technical drawing of an RJ45 connector with dimensions in millimetres. Top view and side views show various measurements.

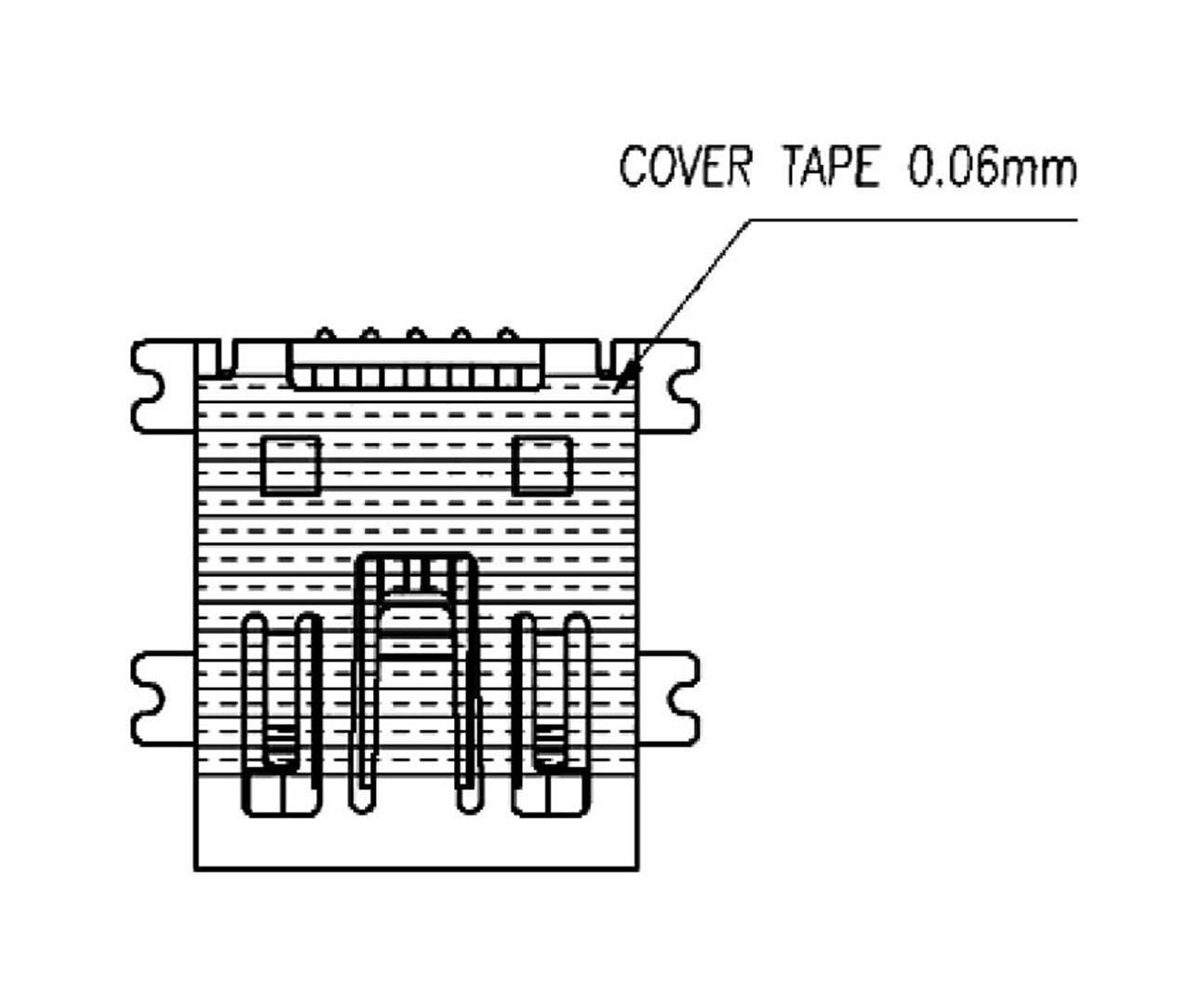

Technical drawing of a component from above, with the label 'COVER TAPE 0.06mm' and markings indicating dimensions.

1/4

Image similar

Connector type

Socket, horizontal mount

Connector standard

USB 2.0

Type

MUB1B5SMD

Pins

Type

1 Port

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

308 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 3

Total (€ 0.92 / piece)

€ 2.76

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Contact socket

Our service for you

Technical specifications

Type: MUB1B5SMD

Connector type: Socket, horizontal mount

Pins: 5

Type: 1 Port

Connector standard: USB 2.0

Connection: SMT

Case material: Brass nickel plated

Manufacturer part #: MUB1B5SMD

Factory colour: Black

Content: 1 pc(s)

Contact material: Phosphorus bronze gold plated

Material (details): LCP

Nominal voltage (details): 30 V

Nominal current (details): 1 A

RoHS-compliant: Yes

Temperature range: -55 - +105 °C
