Name: Cotek AEK 3000-24 SMPSU 24 V DC 125 A 3000 W
Brand: Cotek
SKU: 1991951
Availability: BackOrder

Metal electronic enclosure with ventilation slots and terminal blocks; typically used for industrial power supplies.

A power supply unit with ventilation slots, multiple connection options, and a rotary knob for voltage adjustment.

1/2

EAN:

Part number:

Item no:

Dispatches on Tue, 30 Mar 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 985.00 / piece)

€ 985.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Cotek installation power supply AEK 3000-24 (RS232 / I²C / Remote / Parallel) adjustable Dehner Elektronik GmbH

Output 24 V DC / 125 A
Power 3000 W
Screw terminal

Technical specifications

Product type: SMPSU

Input voltage (max.): 264 V AC
370 V DC

Max. output current: 125 A

Output current (max.) - rounded: 125 A

Min. input voltage: 90 V AC
127 V DC

Dim: (L x W x H) 310 x 170 x 65 mm

Output voltage (max.): 24 V DC

Connection: Screw terminal

: 3000 W

No. of outputs: 1 x

Type: closed

Max. operating temperature (derating): 60 °C

Min. operating temperature (derating): -20 °C

Weight: 3880 g

PSU features: Regulated
Adjustable voltage output

Type: Installation power supply; industrial power supply

Width: 170 mm

Height: 65 mm

Length: 310 mm

Type: AEK 3000-24

MTBF: 60.000 h

Output current (min.): 0 A

Output voltage (min.): 0 V DC

PFC: Yes

Max. temperature: 85 °C

Min. temperature: -40 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1991951 Cotek AEK 3000-24 SMPSU 24 V DC 125 A 3000 W

Warranty Terms

Warranty Terms 1991951 Cotek AEK 3000-24 SMPSU 24 V DC 125 A 3000 W

Description

The advantages of the Cotek AEK 3000 series are:
- Extremely compact design with integrated fans.
- Wide input voltage range 90-264 VAC, 127-370 VDC
- VARIANTS: 12 V, 15 V, 24 V, 30 V, 48 V AND 60 V.
- Current limitation

- the output voltage can be adjusted in a range of 0% - 105%.
- the output current can be adjusted in a range of 0% - 105%.
- Regulation as follows:
1.) simple control via potentiometer (additional board EasyAdjust3000) or control voltage
2.) Communication/control via I²C (Communication Protocol on request) or
RS232 / RS485 (via CT series add-on boards)

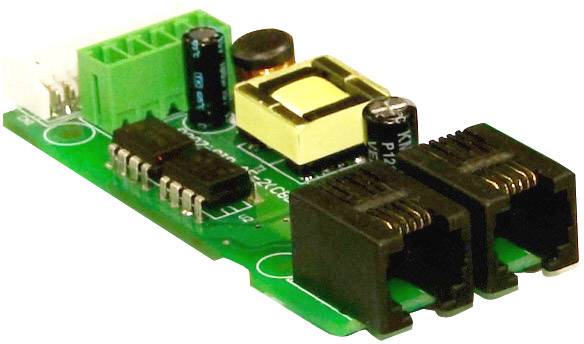

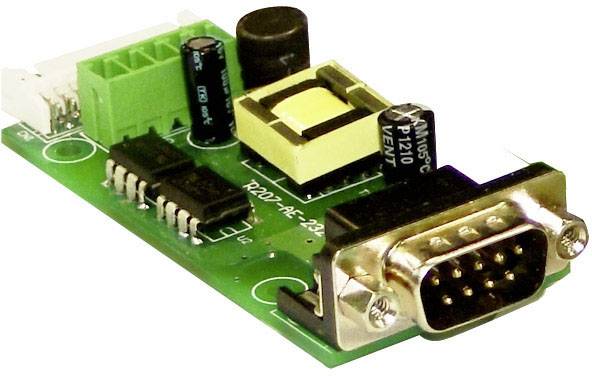

- Individual devices via additional board CT-201 (RS232) or CT-551 (RS485)

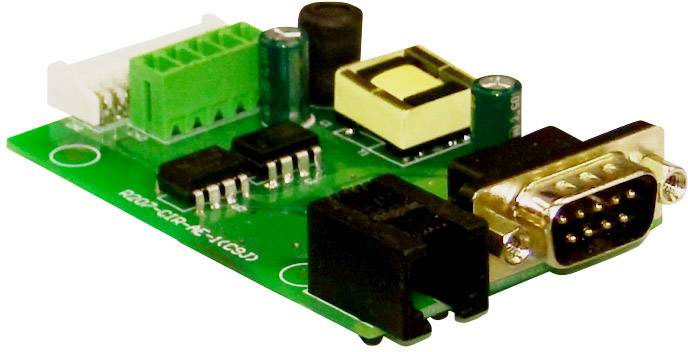

- Parallel operation (control of up to 8 devices via additional board CT-251 for master, as well as one CT-551 for each slave)
- Series operation up to max. 500VDC (control of up to 8 devices via additional board CT-204)
- Set and current values of the device can be read/monitored: Voltage, current, temperature
- Read out the status flags.

- selectable auxiliary voltage: +5V / 0.5A or +9V / 0.3A
- Power OK signal
- Remote On/Off
- Remote Sense
- Protection: Overvoltage protection (OVP), overload protection (OLP), overtemperature protection (OTP), fan failure

- Applications e.g.: Charging technology, motors, laser technology, water treatment, industrial heating furnaces, etc. - everywhere, where variable voltages and currents are required.
