Name: Cotek DN 100-15 Rail mounted PSU (DIN) 15 V DC 6.4 A 96 W No. of outputs:1 x Content 1 pc(s)
Brand: Cotek
SKU: 513373
Availability: InStock

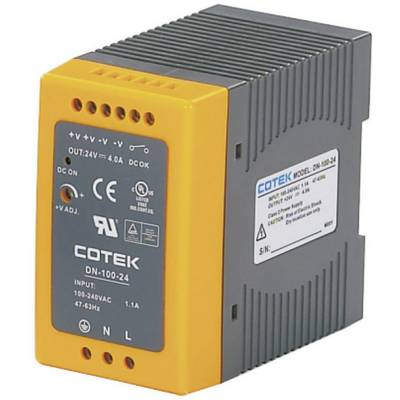

A grey and orange COTEK power supply model DN-100-24 with specifications on the front.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 59.99 / piece)

€ 59.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Cotek DN 100-15 Rail mounted PSU (DIN) 15 V DC 6.4 A 96 W No. of outputs:1 x Content 1 pc(s)

Universal input voltage: 100 - 240 Vac, 124 - 370 V DC (single phase)
Output: 15V DC (adjustable +/- 10%) 6.4A 100W
LED DC OK indicator on unit
True DC OK signal output (5V)
Termination type: Screw terminals
3 year manufacturer warranty

Technical specifications

Type: DIN-rail mount

Nominal input voltage: 115 V/AC
230 V/AC
124 - 370 V/DC

Type: Switched Mode

Product type: Rail mounted PSU (DIN)

Min. input voltage: 88 V AC

Output voltage: 15 V DC

Input voltage: 100 - 240 Vac, 124 - 370 V DC

Input voltage (max.): 264 V AC

Max. output current: 6.4 A

Output current (max.) - rounded: 6.4 A

: 96 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 15 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (W x H x D) 55 x 90 x 99 mm

Weight: 400 g

Output voltage (max.): 16.5 V DC

Output voltage (min.): 13.5 V DC

Manufacturer part #: DN 100-15

Content: 1 pc(s)

MTBF: 120400 h

PSU features: Adjustable voltage output

Width: 55 mm

Height: 90 mm

Type: DN 100-15

Depth: 99 mm

: 100 W

Connections: Screw terminals

Output current (details): 6.4 A

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 513373 Cotek DN 100-15 Rail mounted PSU (DIN) 15 V DC 6.4 A 96 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 513373 Cotek DN 100-15 Rail mounted PSU (DIN) 15 V DC 6.4 A 96 W No. of outputs:1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 513373 Cotek DN 100-15 Rail mounted PSU (DIN) 15 V DC 6.4 A 96 W No. of outputs:1 x Content 1 pc(s)

Description

At 55mm wide, Cotek's economical DN 100-15 miniature power supply saves space on DIN rails and offers a true DC OK signal output. Its robust platic casing conforms to the EN 60950 standard.

With an MTBF of 120400 h, the DN 100-15 offers reliability and long life, and is covered by Cotek's 3 year manufacturer warranty.

Features

Short circuit, overload and over voltage protection
Standard DIN rail mounting
International use through wide-range input
Safety/reliability in accordance with CE, CSA, UL508, UL1310 Class 2, EMC/EMS EN55022 Class B, EN61000-3-2.3, EN55024, EN61000-4-2.3.4.5.6.8.11.

Hints

For more information on this Cotek power supply, please see its datasheet under 'Downloadable Documents'.

Description

Features

Short circuit, overload and over voltage protection
Standard DIN rail mounting
International use through wide-range input
Safety/reliability in accordance with CE, CSA, UL508, UL1310 Class 2, EMC/EMS EN55022 Class B, EN61000-3-2.3, EN55024, EN61000-4-2.3.4.5.6.8.11.
