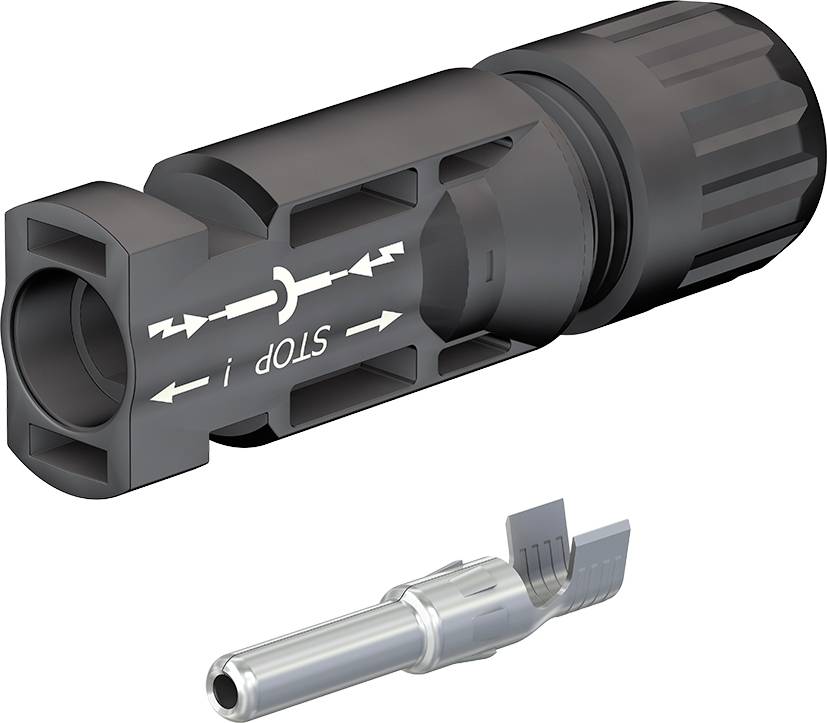

Coupling socket, MC4 connector 32.0015P0001-UR PV-KST4/6I-UR Stäubli Content: 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
Technical specifications
- Pollution level 3
- Max. Contact resistance of connector: < 0.25 mΩ
- Packaging type
Piece
- Type
PV-KST4/6I-UR
- Product type
Photovoltaics connector
IP2X
- Connection
Connector
- Rated surge voltage
16 kV
- Manufacturer part #
32.0015P0001-UR
- Content
1 pc(s)
- Contact material
Copper silver plated
- Width
18.8 mm
- Height
18.8 mm
- Length
61 mm
- Connector type
Plug
- Max. temperature
85 °C
- Min. temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3045921 Coupling socket, MC4 connector 32.0015P0001-UR PV-KST4/6I-UR Stäubli Content: 1 pc(s)
Description
Features
- According to NEC 2023, it can be unlocked only with a tool
- Proven, long-term stable MULTILAM technology, thereby constant low power loss over the entire life of the plug connector
- Approved for DC 1000 V (IEC) and DC 1500 V (UL)
- Proven plug connector, over 25 years of field experience
- Also suitable for mounting with cross sections of 10 mm²
- Also available as ready-made cables according to customer specifications
- For use with appropriate connectors from the MC4 connectors family and suitable cable
- This text is machine translated.
