CTEK 40-324 eMobility charging cable 5 m
EAN:
Part number:
Item no:
Number
Total (€ 259.66 / piece)
€ 259.66
plus VAT.
Highlights & Details
CHARGING CABLE EV TYPE 1 MODE3 1-PHASE
- CTEK charging cable for electric vehicles, 5m
- This text is machine translated.
Technical specifications
- Product type
eMobility charging cable
- Type A
Type 2
- Type B
Type 1
- No. of phases
1-phase
- Charging mode
Mode 3
- Cable length
5 m
- Core layout
L1, earth, N
- Nominal voltage
230 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
IP44
- Certification marks
CE, SGS, EC 62196-2, 61962-2
- Signal flow direction
Bidirectional (bi)
- Min. temperature
-40 °C
- Max. temperature
+90 °C

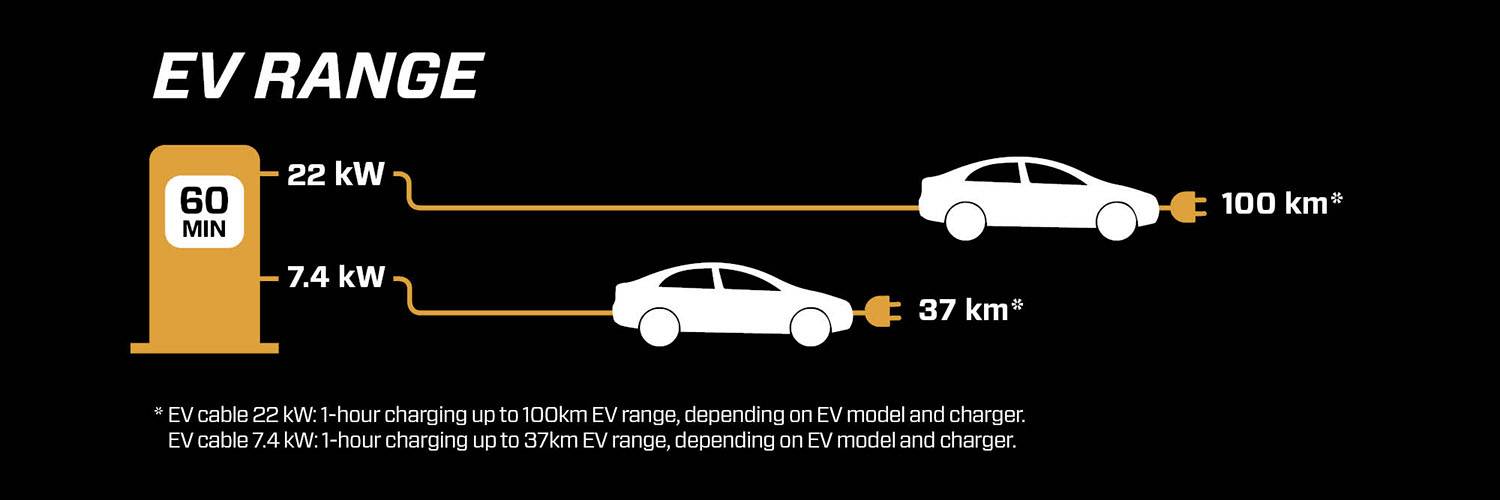

- Charging capacity
22 kW
- Charging current
32 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2796267 CTEK 40-324 eMobility charging cable 5 m
Information
Information 2796267 CTEK 40-324 eMobility charging cable 5 m
Warranty Terms
Warranty Terms 2796267 CTEK 40-324 eMobility charging cable 5 m
Description
The charging cables for electric vehicles are made of wear-resistant and non-flammable plastic, which conforms to the specifications of the standard V-0. They are equipped with durable, heat-dissipating connections made of break-proof synthetic resin, which are absolutely safe to handle. The cables are CE-SGS approved and are covered by a two-year warranty. All charging cables from CTEK are designed for all charging stations of mode 3 and for up to three phases as well as 32 A. Even if your vehicle is designed only for single phase to 16 A, you can charge it safely with all cables of CTEK This means that you can already purchase a charging cable from CTEK for electric vehicles today and be sure that with this charger cable in the future you will also be able to charge a larger electric vehicle
This text is machine translated.
This text is machine translated.
Features
- 3 x 6 mm2 (L1, earth and N) and 1 x 0.5 mm2
Scope of delivery

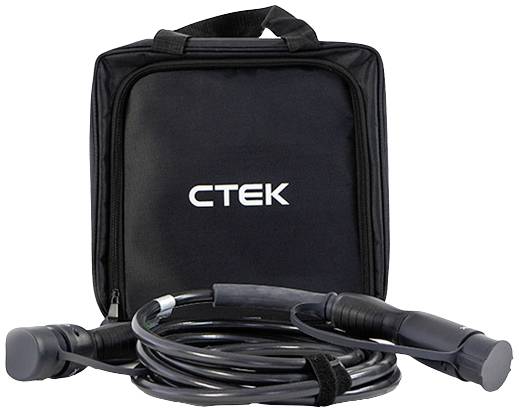

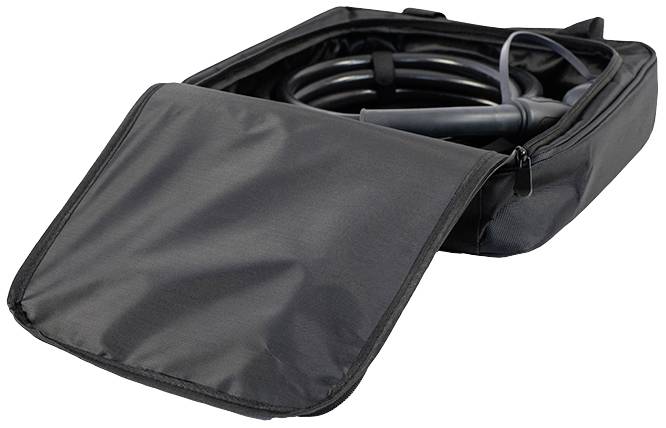

- Includes bag
- Cap
