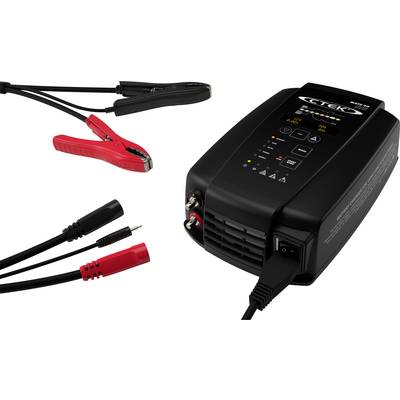

CTEK MXTS 40 EU 56-995 Automatic charger 12 V, 24 V 40 A
EAN:
Part number:
Item no:
Number
Total (€ 705.00 / piece)
€ 705.00
incl. VAT
14-day return policy included
Technical specifications
- 220–240VAC, 12V, 40A Max or 24V, 20Amax
- Product type
Automatic charger
- Dim
(W x H x D) 254 x 76 x 160 mm
- Battery voltage
12 V
24 V
- Recommended battery capacity at 12 V max.
1200 Ah
- Recommended battery capacity at 12 V min.
10 Ah
- Recommended battery capacity at 24 V (max.)
1200 Ah
- Recommedned battery capacity at 24 V min.
10 Ah
- Suitable for
VRLA AGM
PbCa
SLA
Lead acid
VRLA AGM
LiFePO4
Lithium
- Weight
1.3 kg
- Charging current at 12 V
40 A
- Charging current at 24 V
20 A
- Width
254 mm
- Height
76 mm
- Depth
160 mm
IP20
- Cable length
2.5 m
- Connector
Pin contact
- UKCA
yes
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3335177 CTEK MXTS 40 EU 56-995 Automatic charger 12 V, 24 V 40 A
Information
Information 3335177 CTEK MXTS 40 EU 56-995 Automatic charger 12 V, 24 V 40 A
Warranty Terms
Warranty Terms 3335177 CTEK MXTS 40 EU 56-995 Automatic charger 12 V, 24 V 40 A
Description
The model MXTS 40 is an essential piece of equipment which is suitable for the power supply with 12 V and 24 V in car workshops and exhibition rooms. It is a user-friendly, electronically safe battery charger with fast charging capacities for any chemical composition. The MXTS 40 is also suitable as a battery buffer and offers selectable settings for a constant voltage supply in order to avoid damage to the engine control unit. MTXS 40 is easy to transport and comes with a 2.5 meter long high-performance cable and detachable high-quality terminals. • Ideal for use in workshops and exhibition rooms • Outputs 40A/12 V and 20A/24 V • Selectable supply of voltage/current to electronic engine control units • Temperature compensation and battery repair • Removable, 2.5 m long high power cables and terminals • Compatible with Pro accessories
This text is machine translated.
This text is machine translated.
Features
- The MXTS 40 has both an output with 12 V/40 A and an output with 24 V/20 A and offers an adjustable constant voltage, in order to damage the control device due to voltage fluctuations during programming
- avoid it. In addition to the progress indicator for the 8-stage charging process, the MXTS 40 also has an easy-to-read OLED display that shows you important charging parameters such as current, voltage and recharge capacity. It possesses a Recond-mode for reconditioning deeply discharged batteries as well as a temperature sensor for optimizing the charging procedure in all weather conditions. The MXTS 40 is designed for the protection of vehicle electronics and has a casing made of sturdy polycarbonate for harsh environments. The device can be combined with the optional WALL HANGER PRO and the TROLLEY PRO for safe storage and maximum portability.
