Buy Datalogic Retroreflective light barrier S300-PR-1-B06-RX 951451050 Polarisation filter, Timer, Trimmer 1 pc(s)

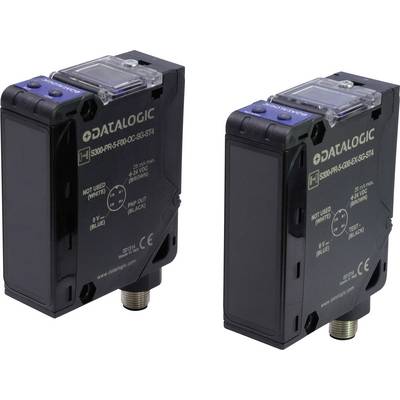

Two black, rectangular Datalogic sensors with model numbers on the front, displaying LEDs and connection modules.

Image similar

Product type

Retroreflective light barrier

Functions

Polarisation filter

Timer

Trimmer

Max. operating voltage

240 V AC

Connector

Cable gland

Type

S300-PR-1-B06-RX

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 184.87 / piece)

€ 184.87

plus VAT.

Report legal concerns

Highlights & Details

Maxi-light barrier, series S300

Robust plastic housing with protection class IP67

Technical specifications

Product type: Retroreflective light barrier

Type: S300-PR-1-B06-RX

Functions: Polarisation filter
Timer
Trimmer

Min. operating voltage: 24 V AC

Max. operating voltage: 240 V AC

Operating voltage: 24 - 240 V AC

Response time: 20 ms

Outputs: Relay contact

Switching frequency: 25 Hz

Connector: Cable gland

Transmitter type: LED red

: 22 m

Features: LED indicator

: IP67

Min. temperature: -40 °C

Max. temperature: +55 °C

Length: 118 mm

Width: 70 mm

Height: 28 mm

Dim: (L x W x H) 118 x 70 x 28 mm

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 1488420 Datalogic Retroreflective light barrier S300-PR-1-B06-RX 951451050 Polarisation filter, Timer, Trimmer 1 pc(s)

Description

The optoelectronic maxisensor of the S300 series is very well suited for demanding applications, as it realizes the best performance even under the most difficult operating conditions.
Rotating branch box for better installation options and adaptability to the mechanical parts of the machine. Sensor housing as a uniform glass fiber-reinforced structure for better resistance and system reliability. The sensor has been specially developed for the following applications: Automatic machines, conveyor lines, woodworking machines, automatic bearings.
