DEHN 540110 SPK 25 BRS AK1X10 2X6.8 V2A Tensioner 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 8.49 / piece)
€ 8.49
incl. VAT
14-day return policy included
Technical specifications
- Product type
Tensioner
- Manufacturer part #
540110
- Factory colour
Multicolour
- Content
1 pc(s)
- Weight
0
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3048831 DEHN 540110 SPK 25 BRS AK1X10 2X6.8 V2A Tensioner 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3048831 DEHN 540110 SPK 25 BRS AK1X10 2X6.8 V2A Tensioner 1 pc(s)
Information
Information 3048831 DEHN 540110 SPK 25 BRS AK1X10 2X6.8 V2A Tensioner 1 pc(s)
Description

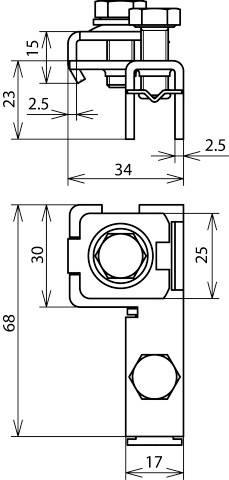

Antenna band-pipe clamp according to DIN EN 62561-1, for binding pipes in the protection and functional potential equalization according to DIN VDE 0100-410/540 and the lightning protection potential equalization according to DIN EN 62305-3 (VDE 0185-305-3). Execution Clamping head separately, for combination with continuous clamping band 25 x 0.3 mm, for connecting 1 conductors Rd D10 mm or 1-2 conductor Rd D6-8 mm or 4-50 mm² (single / multi-wired).
