DEHN 540250 UEK 8.10 AQ4 50 HKSM8 V2A Surge protection bracket Surge protection for: PV systems 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
3
5% = € 0.32
€ 5.55
5
8% = € 0.45
€ 5.42
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
14-day return policy included
Technical specifications
- Clamping range rd: 8-10 mm
- Product type
Surge protection bracket
- Surge protection for
PV systems
- Manufacturer part #
540250
- Standards
DIN EN 62561-1
- Dim
(L x W) 37 mm x 32 mm
- Length
37 mm
- Width
32 mm
- Content
1 pc(s)
- Weight
0.06
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1968137 DEHN 540250 UEK 8.10 AQ4 50 HKSM8 V2A Surge protection bracket Surge protection for: PV systems 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1968137 DEHN 540250 UEK 8.10 AQ4 50 HKSM8 V2A Surge protection bracket Surge protection for: PV systems 1 pc(s)
Description

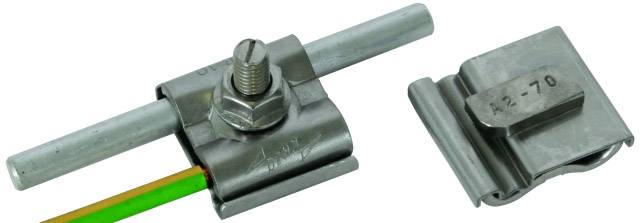

UNI-earth terminal according to DIN EN 62561-1, for incorporation of the assembly systems, for example, that of PV systems in the function equipotential bonding/functional earthing conductor color if necessary (black) and lightning protection potential compensation according to DIN EN 62305-3 (VDE 0185-305-3). Through the contact plate (between element) stainless, different materials of the conductor (Cu, Al, St/tZn and NIRO) with the usual assembly systems, for example, made of aluminum, without having to contact corrosion occurs. Design with hammer head screw M8, serrated nut and double loading Leger, for example, to feed-through wiring of the profiles.
