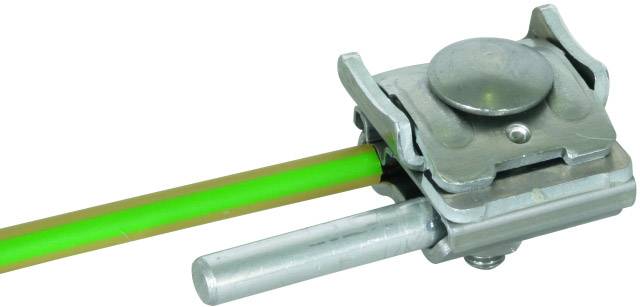

DEHN 365250 UNI FK 8.10 KBF0.7 8 AL V2A Rebate clamp Surge protection for: PV systems 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.71
3
6% = € 0.37
€ 6.34
5
8% = € 0.51
€ 6.20
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.71 / piece)
€ 6.71
plus VAT.
14-day return policy included
Technical specifications
- Clamping range fold: 0,7-8 mm
- Clamping range rd: 8-10 mm
- Connection (on/multi-wired): 4-50 mm2
- Product type
Rebate clamp
- Surge protection for
PV systems
- Manufacturer part #
365250
- Factory colour
Multicolour
- Standards
DIN EN 62561-1
- Dim
(W x H) 39 mm x 32 mm
- Width
39 mm
- Height
32 mm
- Content
1 pc(s)
- Weight
0.09
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1968159 DEHN 365250 UNI FK 8.10 KBF0.7 8 AL V2A Rebate clamp Surge protection for: PV systems 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1968159 DEHN 365250 UNI FK 8.10 KBF0.7 8 AL V2A Rebate clamp Surge protection for: PV systems 1 pc(s)
Description
Terminal according to DIN EN 62561-1 UNI-fold, to integrate the assembly systems, for example, that of PV systems in the function equipotential bonding/functional earthing conductor color if necessary (black) and lightning protection potential compensation according to DIN EN 62305-3 (VDE 0185-305-3). Through the contact plate (between element) stainless, different materials of the conductor (Cu, Al, St/tZn and NIRO) with the usual assembly systems, for example, made of aluminum, without having to contact corrosion occurs. Design with hammer head screw M8, serrated nut and double loading Leger, for example, to feed-through wiring of the profiles.
This text is machine translated.
