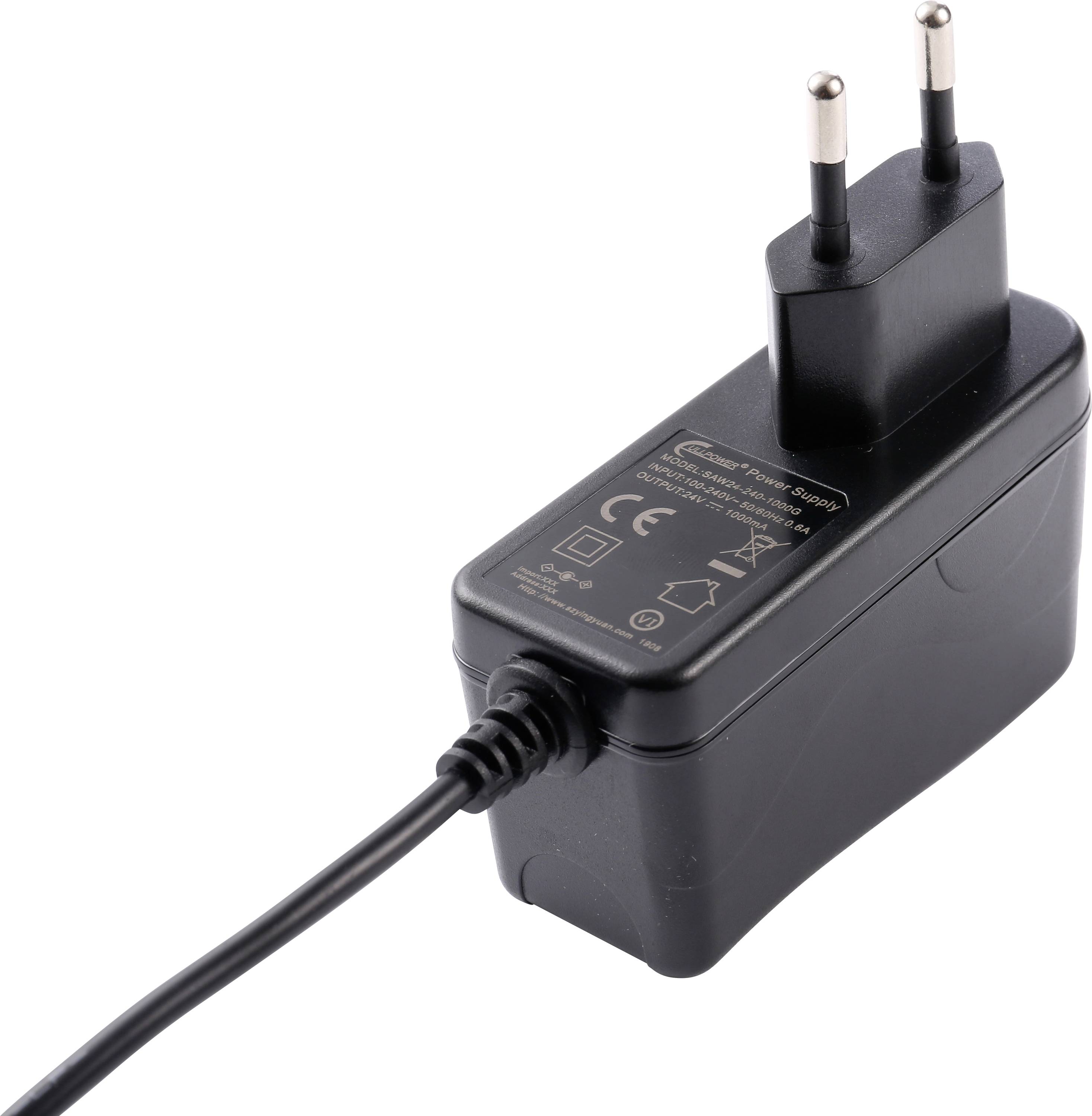

Dehner Elektronik SAW 24-120-2000G Mains PSU (fixed voltage) 12 V DC 2 A 24 W Regulated, Surge protection
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 6.71
5
6% = € 0.41
€ 6.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 6.71 / piece)
€ 6.71
plus VAT.
Highlights & Details
Plug power supply SAW 24-120-2000G (24Watt) Dehner Elektronik GmbH
- Protection class 2 (without protection conductor)
- Efficiency - Level VI
- Overvoltage protection
- Overload protection
- Short-circuit protection
- EN 62368-1
Technical specifications
- Product type
Mains PSU (fixed voltage)
- Used at
Mains socket
Indoors
- Type
Switched PSU
- Max. output current
2 A
- Output voltage
12 V DC
- Output current (max.) - rounded
2 A
- Output
5.5/2.1 coaxial connector
- PSU features
Regulated
Surge protection
- Input voltage
240 V AC
24 W
- Dim
(L x W x H) 8 mm x 8 cm x 3.1 cm
- Connection
Euro plug
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V AC
- Min. input voltage
90 V AC
- EuP Status
Step 2
- Weight
11 g
- Cable length
150 cm
- Width
8 cm
- Height
3.1 cm
- Length
8 mm
- Type
SAW 24-120-2000G
Documents & Downloads
Datasheet
Datasheet 3455158 Dehner Elektronik SAW 24-120-2000G Mains PSU (fixed voltage) 12 V DC 2 A 24 W Regulated, Surge protection
User & Safety Instructions
User & Safety Instructions 3455158 Dehner Elektronik SAW 24-120-2000G Mains PSU (fixed voltage) 12 V DC 2 A 24 W Regulated, Surge protection
Warranty Terms
Warranty Terms 3455158 Dehner Elektronik SAW 24-120-2000G Mains PSU (fixed voltage) 12 V DC 2 A 24 W Regulated, Surge protection
Description
Powerful, compact power supply. Ideal for various applications. The power supply is suitable for continuous operation and offers a Maximum at safety through the various protective measures. The power supply corresponds to the latest international energy saving guidelines.
Due to the wide-range input from 100V/AC to 240V/AC it is suitable for worldwide use. The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and therefore low heat generation.
This text is machine translated.
Due to the wide-range input from 100V/AC to 240V/AC it is suitable for worldwide use. The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and therefore low heat generation.
This text is machine translated.
