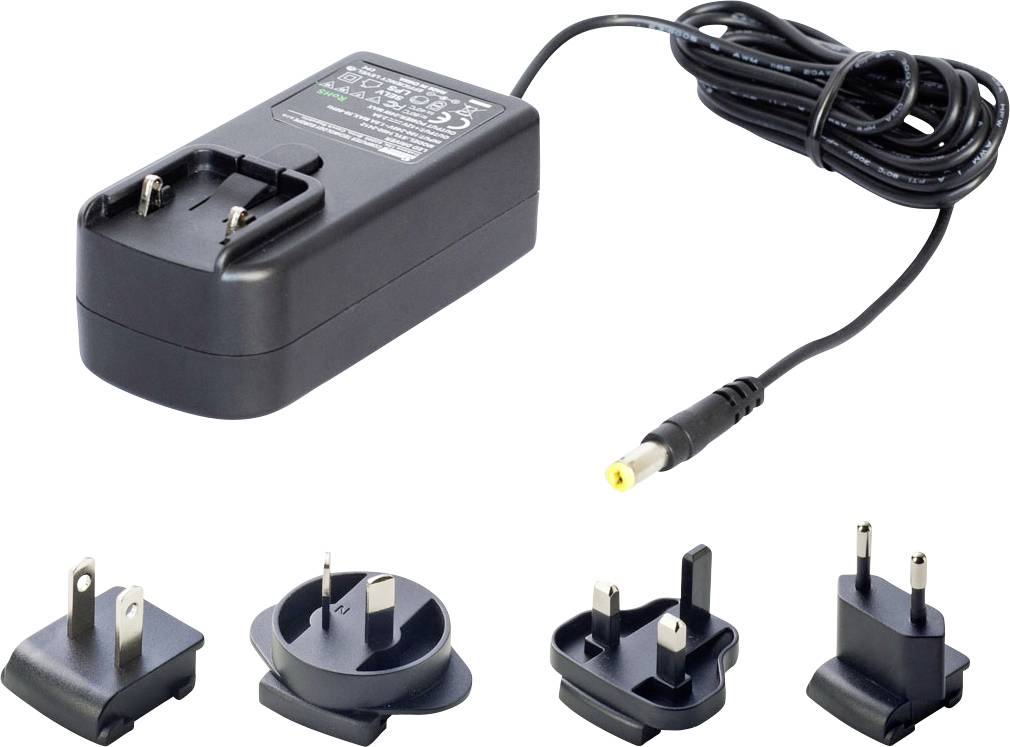

Name: Dehner Elektronik SYS 1460-1105-W2E 2,1x5,5x11mm | with Plug-Set: EU/US/UK/AUS AC/DC bench/mains PSU 5 V DC 2.1 A 10.5 W
Brand: Dehner Elektronik
SKU: 3397135
Availability: InStock

Dehner Elektronik SYS 1460-1105-W2E 2,1x5,5x11mm | with Plug-Set: EU/US/UK/AUS AC/DC bench/mains PSU 5 V DC 2.1 A 10.5 W-0

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 15.99 / piece)

€ 15.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Plug power supply SYS 1460-1105-W2E 2.1 1x5.5 x 11 mm Dehner Elektronik GmbH

Protection class 2 (without protection conductor)
Overvoltage protection
Overload protection
Short-circuit protection

Technical specifications

Product type: AC/DC bench/mains PSU

Used at: Indoors
Mains socket

Type: Switched PSU

Max. output current: 2.1 A

Output voltage: 5 V DC

Output current (max.) - rounded: 2.1 A

Output: 5.5/2.1 coaxial connector

PSU features: incl. UK adapter
incl. US adapter
incl. AUS adapter
incl. Europe adapter

Input voltage: 240 V AC

: 10.5 W

Dim: (L x W x H) 30 x 45 x 65 mm

Connection: Euro plug
Quick-release adapter

No. of outputs: 1 x

No. of inputs: 1 x

Input voltage (max.): 264 V AC

Min. input voltage: 90 V AC

EuP Status: Step 2

Weight: 110 g

Cable length: 137 cm

Width: 45 mm

Height: 65 mm

Length: 30 mm

Type: SYS 1460-1105-W2E 2,1x5,5x11mm | with Plug-Set: EU/US/UK/AUS

Documents & Downloads

Datasheet

Datasheet 3397135 Dehner Elektronik SYS 1460-1105-W2E 2,1x5,5x11mm | with Plug-Set: EU/US/UK/AUS AC/DC bench/mains PSU 5 V DC 2.1 A 10.5 W

User & Safety Instructions

User & Safety Instructions 3397135 Dehner Elektronik SYS 1460-1105-W2E 2,1x5,5x11mm | with Plug-Set: EU/US/UK/AUS AC/DC bench/mains PSU 5 V DC 2.1 A 10.5 W

Conformity certificate

Conformity certificate 3397135 Dehner Elektronik SYS 1460-1105-W2E 2,1x5,5x11mm | with Plug-Set: EU/US/UK/AUS AC/DC bench/mains PSU 5 V DC 2.1 A 10.5 W

Description

Plug power supplies in a compact design. It allows several devices to be operated side by side in socket strips.

Powerful, compact power supply. Ideal for various applications. The power supply is suitable for continuous operation and offers a Maximum at safety through the various protective measures.

Wide-range input from 100V/AC to 240V/AC. The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and therefore low heat generation.

This text is machine translated.
