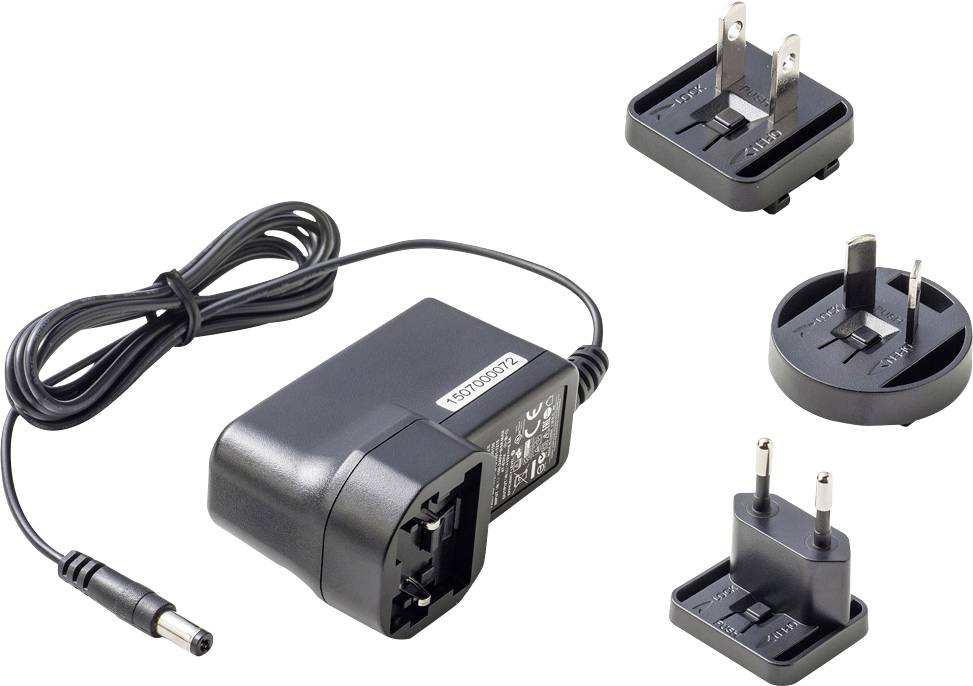

Dehner Elektronik SYS 1588-4012-W2E Mains PSU (fixed voltage) 12 V DC 3.3 A 30 W incl. Europe adapter, Regulated, Surge
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.98
€ 21.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Plug power supply SYS 1588-4012-W2E Dehner Elektronik
- 40W, 12V, 3.3A
- Efficiency: 87%
- Ripple: 200 mV p-p
- Input: 90–264VAC, 47–63Hz
- Protection: Overcurrent, short circuit, overvoltage, no-load
- Certified by GS, cTUVus, FCC, RCM, PSE, EAC, CB
- Dimensions 80 × 58 × 39 mm
- Operating temperature 0 - 40 °C.
- MTBF: 500,000 hours
- Plug 2.1 × 5.5 × 11 mm (output), EU (input)
Technical specifications
- Product type
Mains PSU (fixed voltage)
- Used at
Indoors
Mains socket
- Max. output current
3.3 A
- Output voltage
12 V DC
- Output current (max.) - rounded
3.3 A
- Output
5.5/2.1 coaxial connector
- PSU features
incl. Europe adapter
Regulated
Surge protection
- Input voltage
230 V AC
30 W
- Dim
(L x W x H) 80 x 40 x 32 mm
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V AC
- Min. input voltage
90 V AC
- EuP Status
Level VI
- Weight
173 g
- Cable length
1370 mm
- Width
40 mm
- Height
32 mm
- Length
80 mm
- Type
SYS 1588-4012-W2E
Documents & Downloads
Datasheet
Datasheet 3771394 Dehner Elektronik SYS 1588-4012-W2E Mains PSU (fixed voltage) 12 V DC 3.3 A 30 W incl. Europe adapter, Regulated, Surge
User & Safety Instructions
User & Safety Instructions 3771394 Dehner Elektronik SYS 1588-4012-W2E Mains PSU (fixed voltage) 12 V DC 3.3 A 30 W incl. Europe adapter, Regulated, Surge
Conformity certificate
Conformity certificate 3771394 Dehner Elektronik SYS 1588-4012-W2E Mains PSU (fixed voltage) 12 V DC 3.3 A 30 W incl. Europe adapter, Regulated, Surge
Warranty Terms
Warranty Terms 3771394 Dehner Elektronik SYS 1588-4012-W2E Mains PSU (fixed voltage) 12 V DC 3.3 A 30 W incl. Europe adapter, Regulated, Surge
Description
The SYS1588-4012-W2E is the ideal 40W power supply for your applications:
12V output voltage with up to 3.3A load and an efficiency of over 87% ensure power-saving and stable operation. Thanks to its universal input (90–264VAC, 47–63Hz) it can be used worldwide.
With comprehensive protection (overcurrent, short circuit, over-voltage, no-load) and numerous certifications (CE, GS, cTUVus, FCC, RCM, PSE, EAC, CB) provides maximum security and reliability. The compact design (80 × 58 × 39 mm) and the long life (MTBF: 500,000 hours) make it the perfect choice for industry, offices and home applications.
The standard 2.1 × 5.5 × 11 mm output connector and the EU input plug (W2E) provide for easy integration.
Perfect for:
Electronic devices
Lighting systems
Industrial applications
Home applications
SYS1588-4012-W2E performance that convinces.
This text is machine translated.
12V output voltage with up to 3.3A load and an efficiency of over 87% ensure power-saving and stable operation. Thanks to its universal input (90–264VAC, 47–63Hz) it can be used worldwide.
With comprehensive protection (overcurrent, short circuit, over-voltage, no-load) and numerous certifications (CE, GS, cTUVus, FCC, RCM, PSE, EAC, CB) provides maximum security and reliability. The compact design (80 × 58 × 39 mm) and the long life (MTBF: 500,000 hours) make it the perfect choice for industry, offices and home applications.
The standard 2.1 × 5.5 × 11 mm output connector and the EU input plug (W2E) provide for easy integration.
Perfect for:
Electronic devices
Lighting systems
Industrial applications
Home applications
SYS1588-4012-W2E performance that convinces.
This text is machine translated.
