Name: Dehner Elektronik SYS 1621-20 W2E Mains PSU (fixed voltage) 5 V DC, 9 V DC, 12 V DC 3 A 20 W USB Power Delivery (USB-PD)
Brand: Dehner Elektronik
SKU: 2730526
Availability: InStock

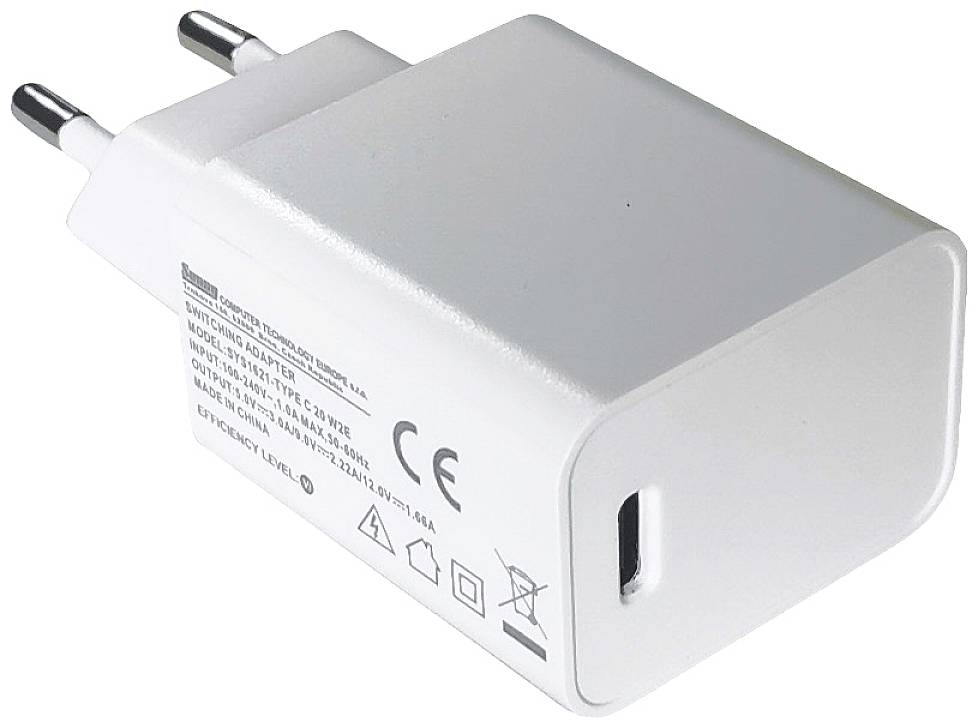

White USB charger with European plug, CE marking and technical details printed.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 3 Nov

8 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 18.99 / piece)

€ 18.99

incl. VAT

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Plug power supply SYS 1621-20 W2E USB-C Dehner Elektronik GmbH

Protection class 2 (without protection conductor)Efficiency - Level VIOvervoltage protectionOverload protectionShort-circuit protectionEN 62368-1Power-Delivery5V/3A, 9V/2.22A, 12V/1.66A

Technical specifications

5V/3A9V/2.22A12V/1.66A

Product type: Mains PSU (fixed voltage)

Used at: Mains socket
Indoors

Type: Switched PSU

Max. output current: 3 A

Output voltage: 5 V DC
9 V DC
12 V DC

Output current (max.) - rounded: 3 A

Output: USB

PSU features: USB Power Delivery (USB-PD)
Regulated

Input voltage: 240 V AC

: 20 W

Dim: (L x W x H) 82 x 27 x 40 mm

Connection: Euro plug

No. of outputs: 1 x

No. of inputs: 1 x

Input voltage (max.): 264 V AC

Min. input voltage: 90 V AC

EuP Status: Step 2

Weight: 51 g

Width: 27 mm

Height: 40 mm

Length: 82 mm

Type: SYS 1621-20 W2E

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2730526 Dehner Elektronik SYS 1621-20 W2E Mains PSU (fixed voltage) 5 V DC, 9 V DC, 12 V DC 3 A 20 W USB Power Delivery (USB-PD)

User & Safety Instructions

User & Safety Instructions 2730526 Dehner Elektronik SYS 1621-20 W2E Mains PSU (fixed voltage) 5 V DC, 9 V DC, 12 V DC 3 A 20 W USB Power Delivery (USB-PD)

Warranty Terms

Warranty Terms 2730526 Dehner Elektronik SYS 1621-20 W2E Mains PSU (fixed voltage) 5 V DC, 9 V DC, 12 V DC 3 A 20 W USB Power Delivery (USB-PD)

Description

With the SYS1621 series with USB C-connection and Power delivery function, we have extended our range of power supplies. The power supplies comply with degree of efficiency VI and comply with safety standard EN62368-1. Among other things, the power supply is suitable as a charger for different smartphones. The ideal companion on business trips or on holiday.

This text is machine translated.
