Buy Dehner Elektronik SYS 1638-0605W2E Mains PSU (fixed voltage) 5 V DC 1.2 A 6 W Regulated

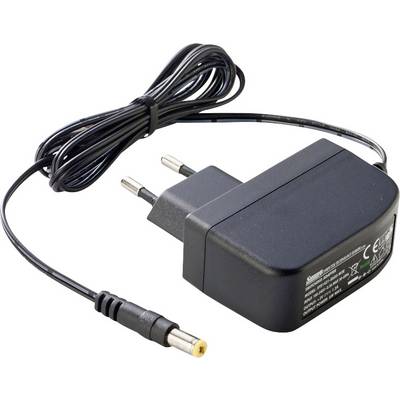

A black power supply with a European plug and a long cable, ending in a yellow round connector. Suitable for electronic devices.

Image similar

Datasheet (PDF)

16 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 10.92 / piece)

€

Report legal concerns

Highlights & Details

Plug power supply SYS 1638-0605W2E Dehner Elektronik GmbH

5 V DC output voltageFor appliances with power ratings of up to 1.2 A;6 W;5.5/2.1 coaxial connector;Switched PSU

Technical specifications

Type: Switched PSU

Max. output current: 1.2 A

Output current (max.) - rounded: 1.2 A

Cable length: 150.00 cm

Dim: (L x W x H) 8 cm x 2.4 mm x 8 cm

Height: 8 cm

Length: 8 cm

Width: 2.4 mm

EuP Status: Level VI

Connection: CEE 7/4 socket

Output: 5.5/2.1 coaxial connector

PSU features: Regulated

Type: SYS 1638-0605W2E

Input voltage: 230 V AC

Input voltage (max.): 264 V AC

Min. input voltage: 90 V AC

Output voltage: 5 V DC

No. of inputs: 1 x

No. of outputs: 1 x

Used at: Mains socket

: 6 W

Weight: 72 g

Product type: Mains PSU (fixed voltage)

Documents & Downloads

Datasheet

Datasheet 2267002 Dehner Elektronik SYS 1638-0605W2E Mains PSU (fixed voltage) 5 V DC 1.2 A 6 W Regulated

Conformity certificate

Conformity certificate 2267002 Dehner Elektronik SYS 1638-0605W2E Mains PSU (fixed voltage) 5 V DC 1.2 A 6 W Regulated

Warranty Terms

Warranty Terms 2267002 Dehner Elektronik SYS 1638-0605W2E Mains PSU (fixed voltage) 5 V DC 1.2 A 6 W Regulated

Description

Plug-in power supplies in compact design. This allows several devices to be operated side by side in socket strips.Powerful, compact power supply. Ideal for different applications. The power supply is suitable for continuous operation and offers maximum safety through the various protective measures. The power supply complies with the latest international energy saving guidelines.Wide-range input from 100V/AC to 240V/AC. The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and thus a low heat generation.

This text is machine translated.
