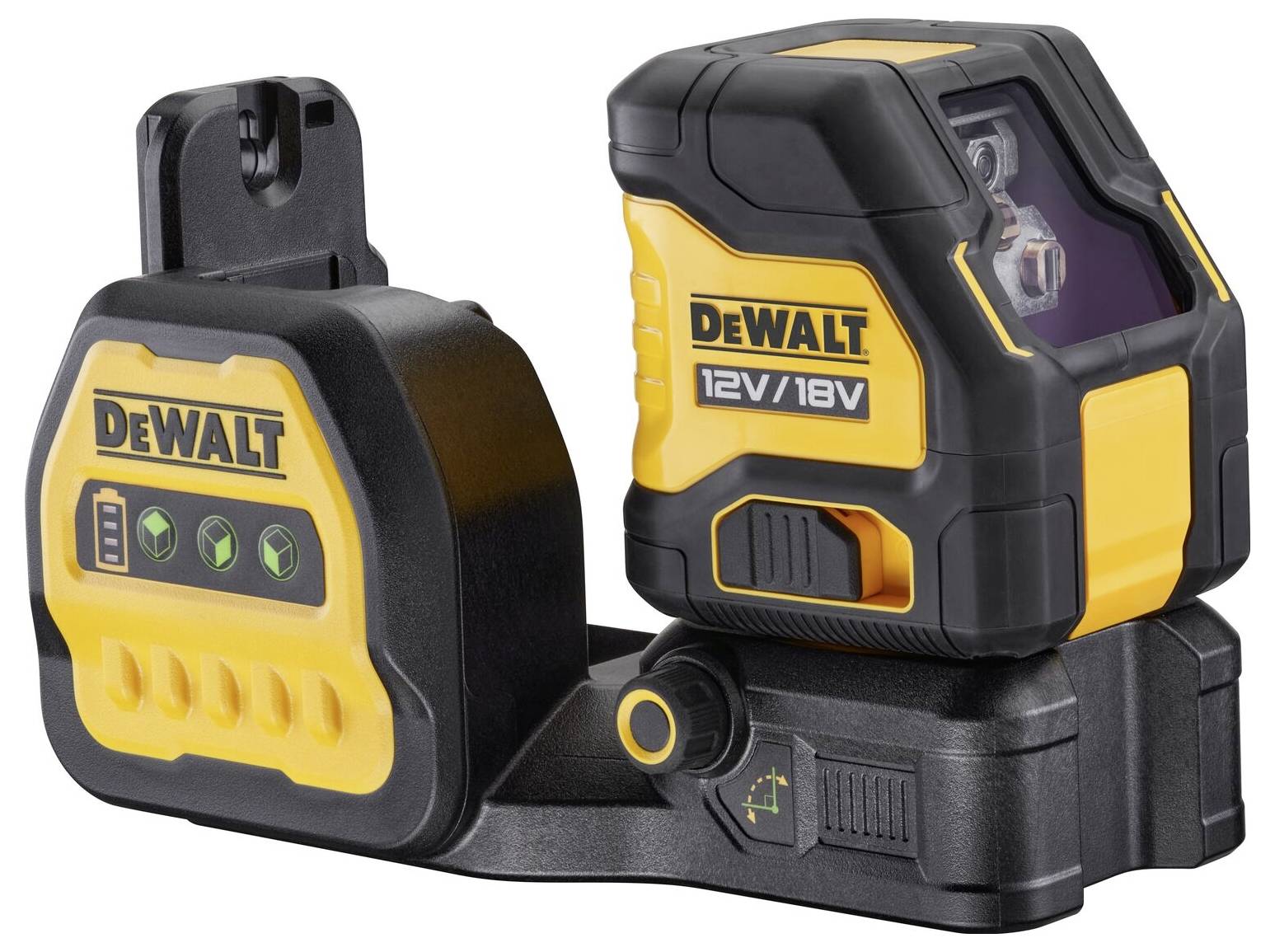

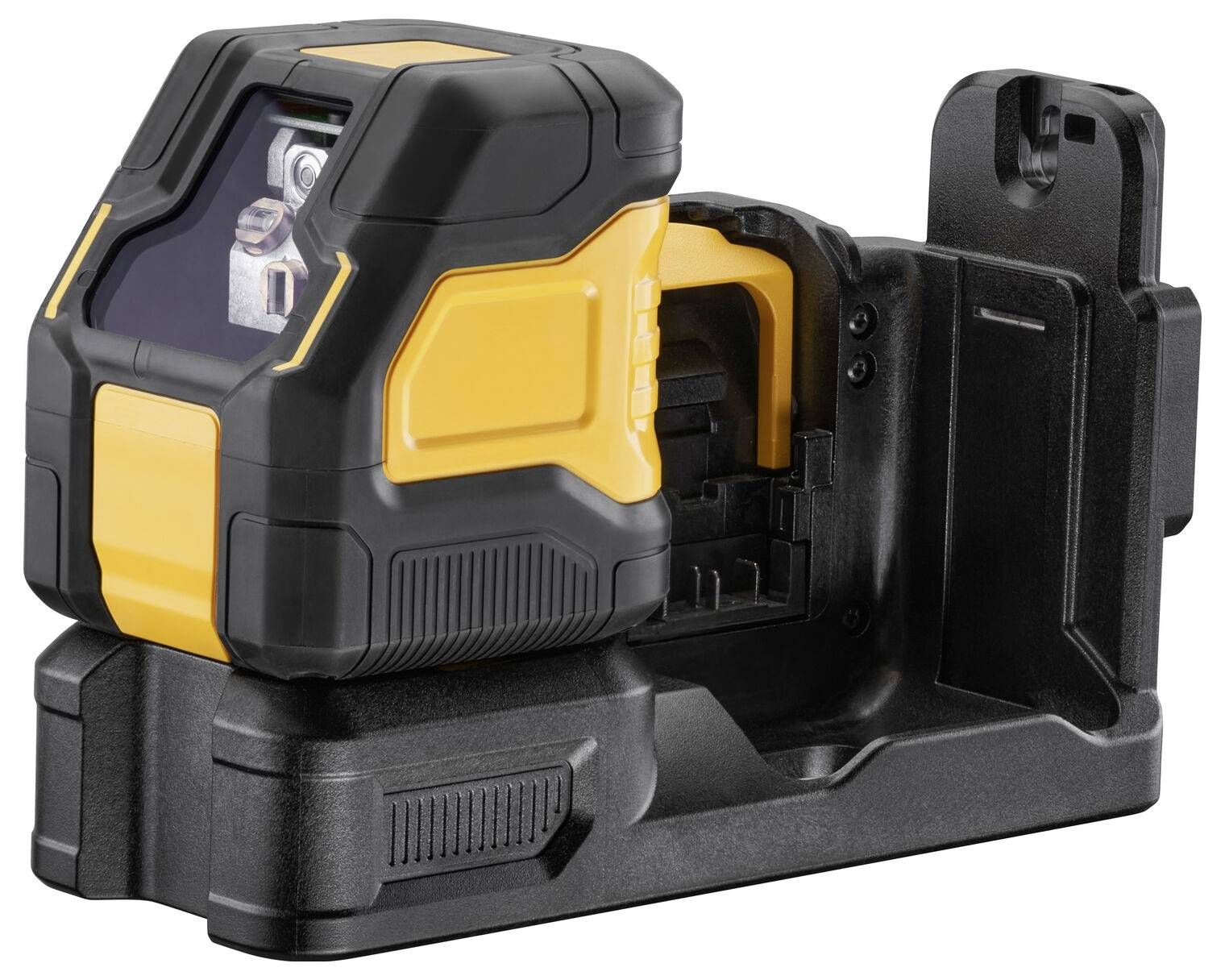

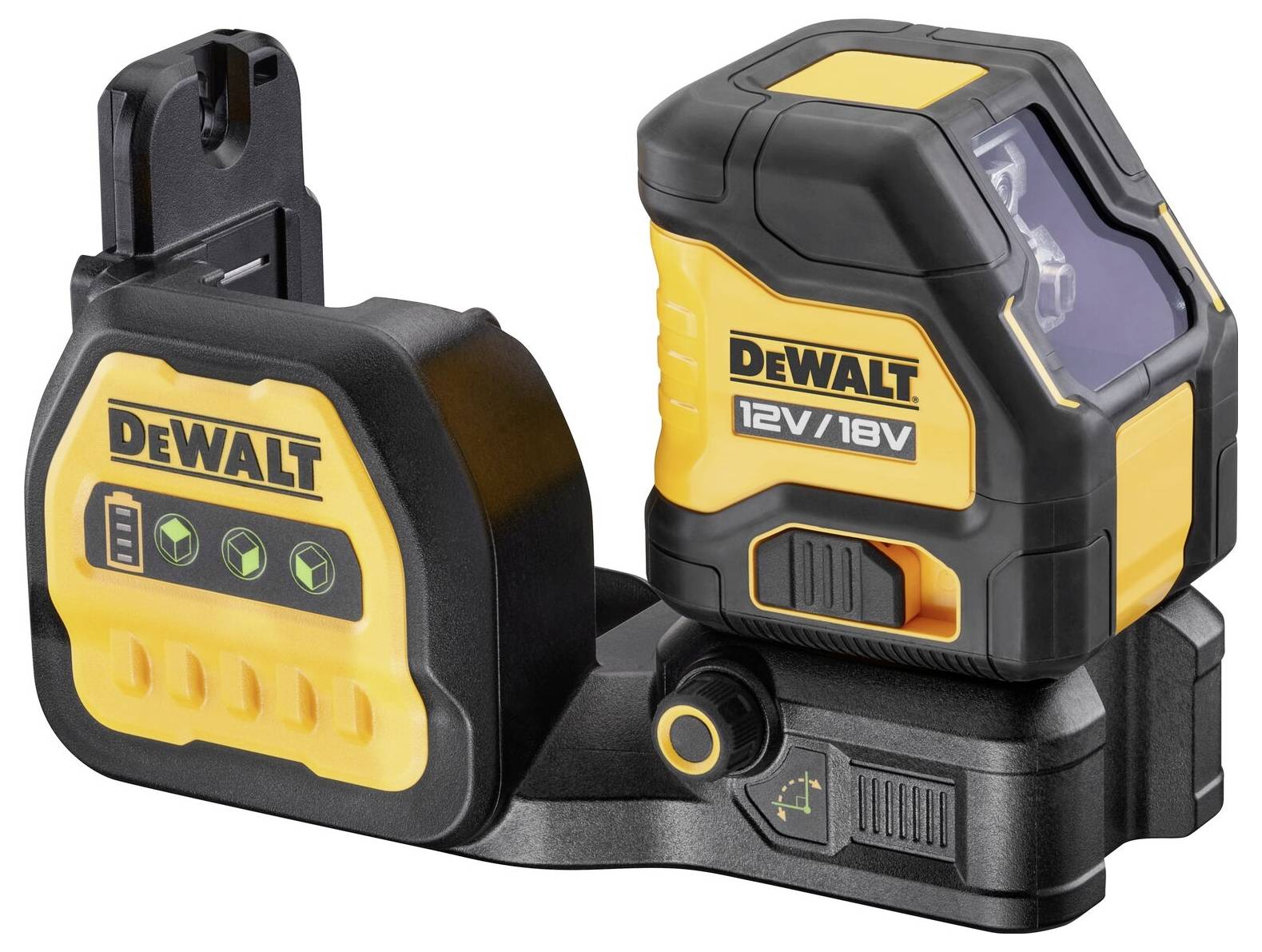

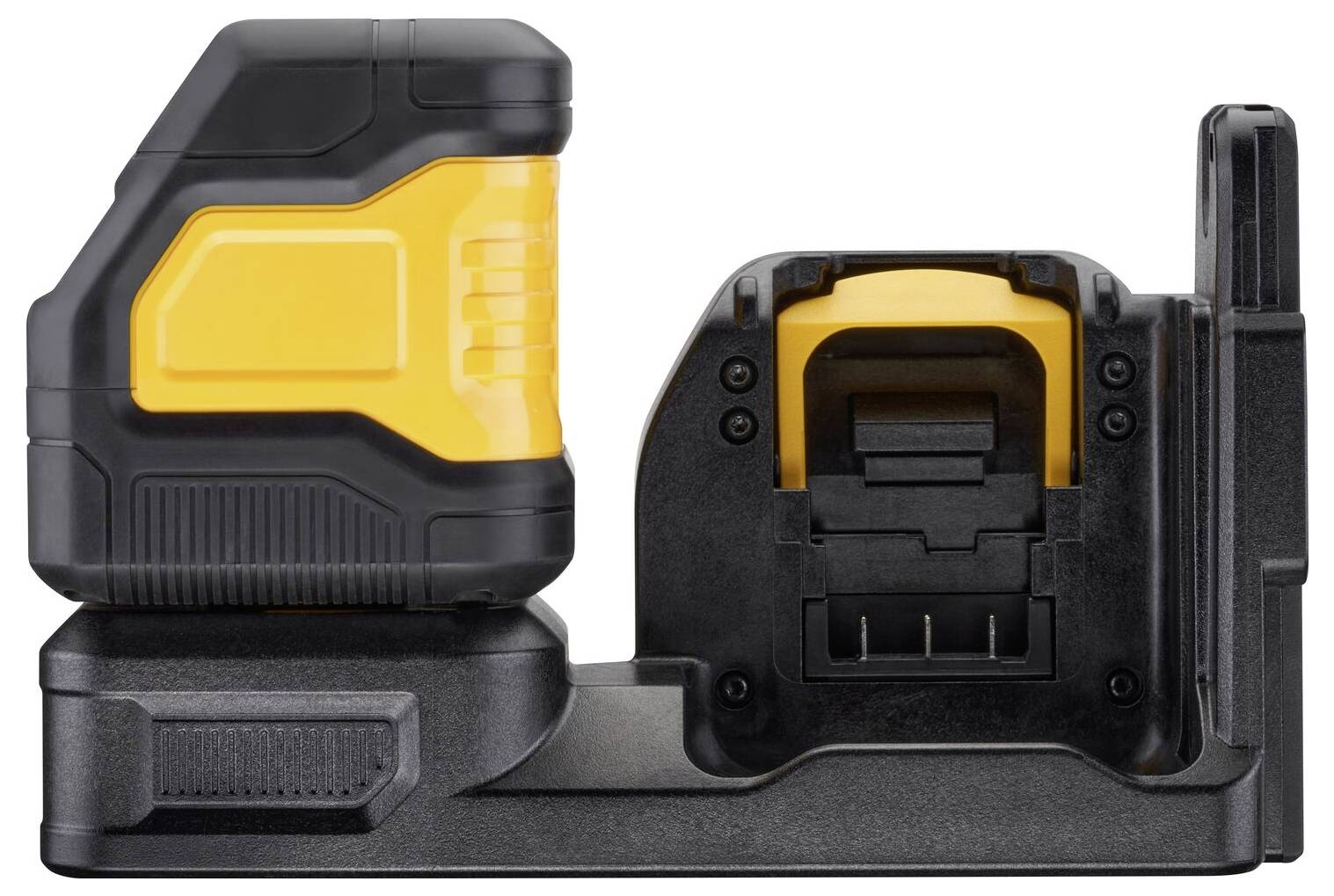

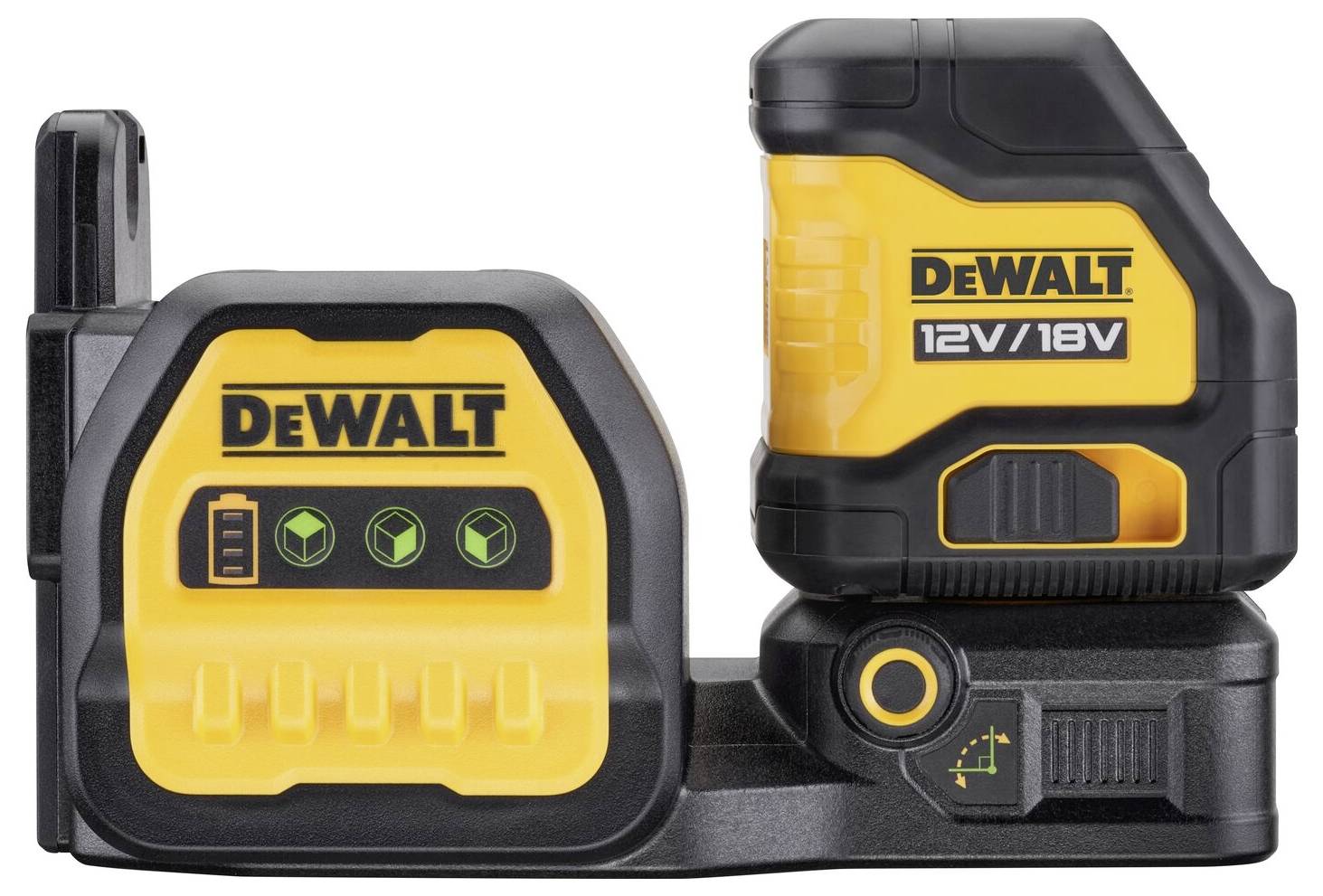

DEWALT DCE088NG18-XJ Cross line laser Green laser Range (max.): 50 m
EAN:
Part number:
Item no:
Number
Total (€ 331.93 / piece)
€ 331.93
plus VAT.
Highlights & Details
Cross line laser green, 18V baseline.
- Product strengths: Compatible with 12V and 18V XR batteries
- Green laser diode, class 2 laser, 510-530nm
- Cross-line laser for horizontal and vertical leveling
- Adjustment knob for manual fine adjustment on horizontal axis to move vertical bars
- Accuracy of +/- 3mm @ 10m
- Better visibility of radiation with green laser beam diode
- Rotating magnetic holder for attaching the laser to metal surfaces
- Pendulum lock helps to prevent damage to internal components
- Range 30m (50m with detector)
- Pulse mode permanent
- Compensation range +/- 4°
- Levelling time <= 5s
- IP54 classification
- Thread 1/4" & 5/8"
Technical specifications
- Product type
Cross line laser
- Features
Green laser
- Range (max.)
50 m
- Accuracy (+/-)
3 mm/10m
- Auto-adjustment range (+/-)
4°
- Laser category
2
- Visible beam length
510 nm
- Tripod thread mount
5/8"
- Width
180 mm
- Height
350 mm
- Dim
(W x H) 180 mm x 350 mm
- Weight
3000 g
Manufacturer's standards (no certificate)
- Type
DCE088NG18-XJ
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3014949 DEWALT DCE088NG18-XJ Cross line laser Green laser Range (max.): 50 m
Description
Dewalt DCE088NG18-XJ cross line laser green, 18V baseline.
