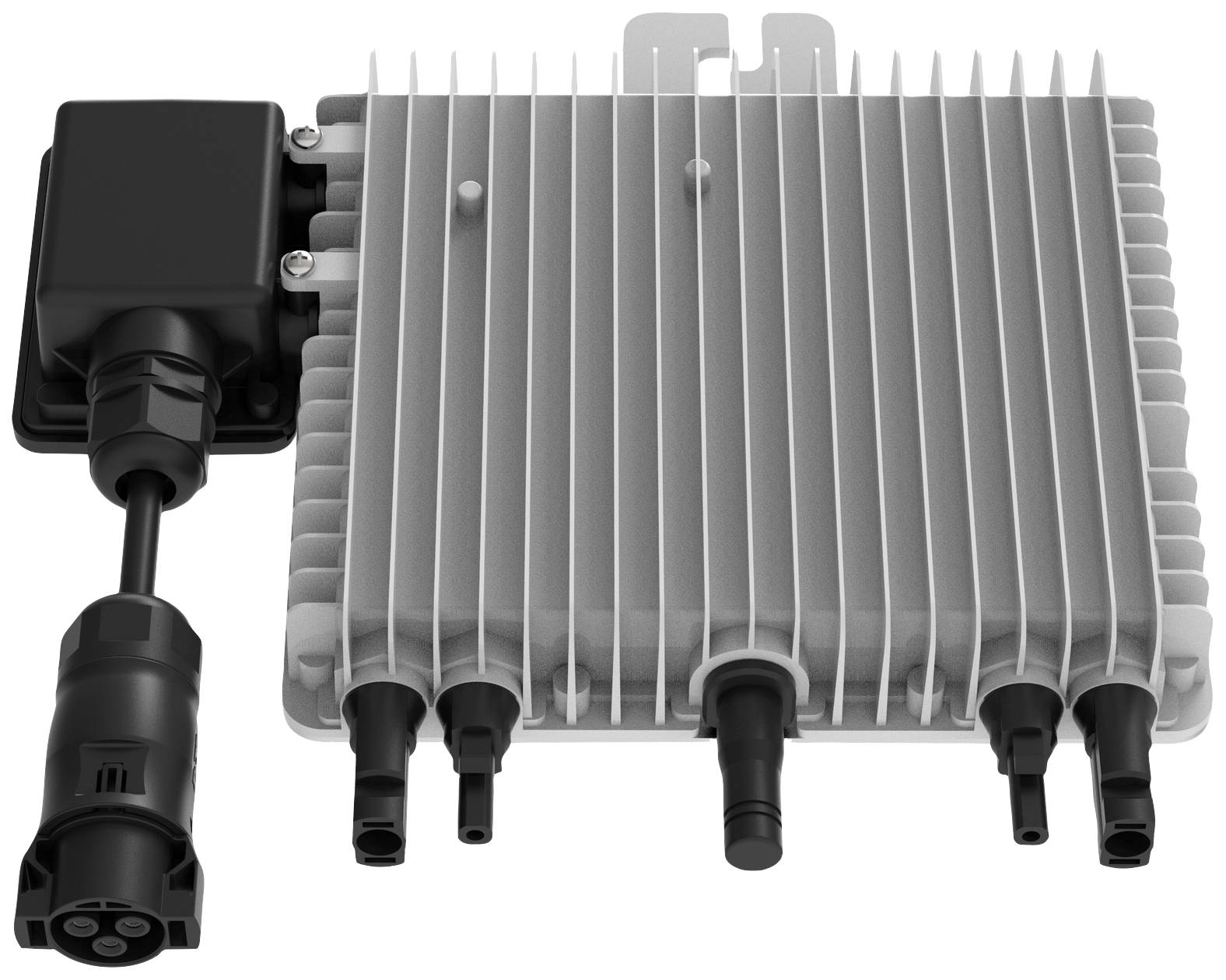

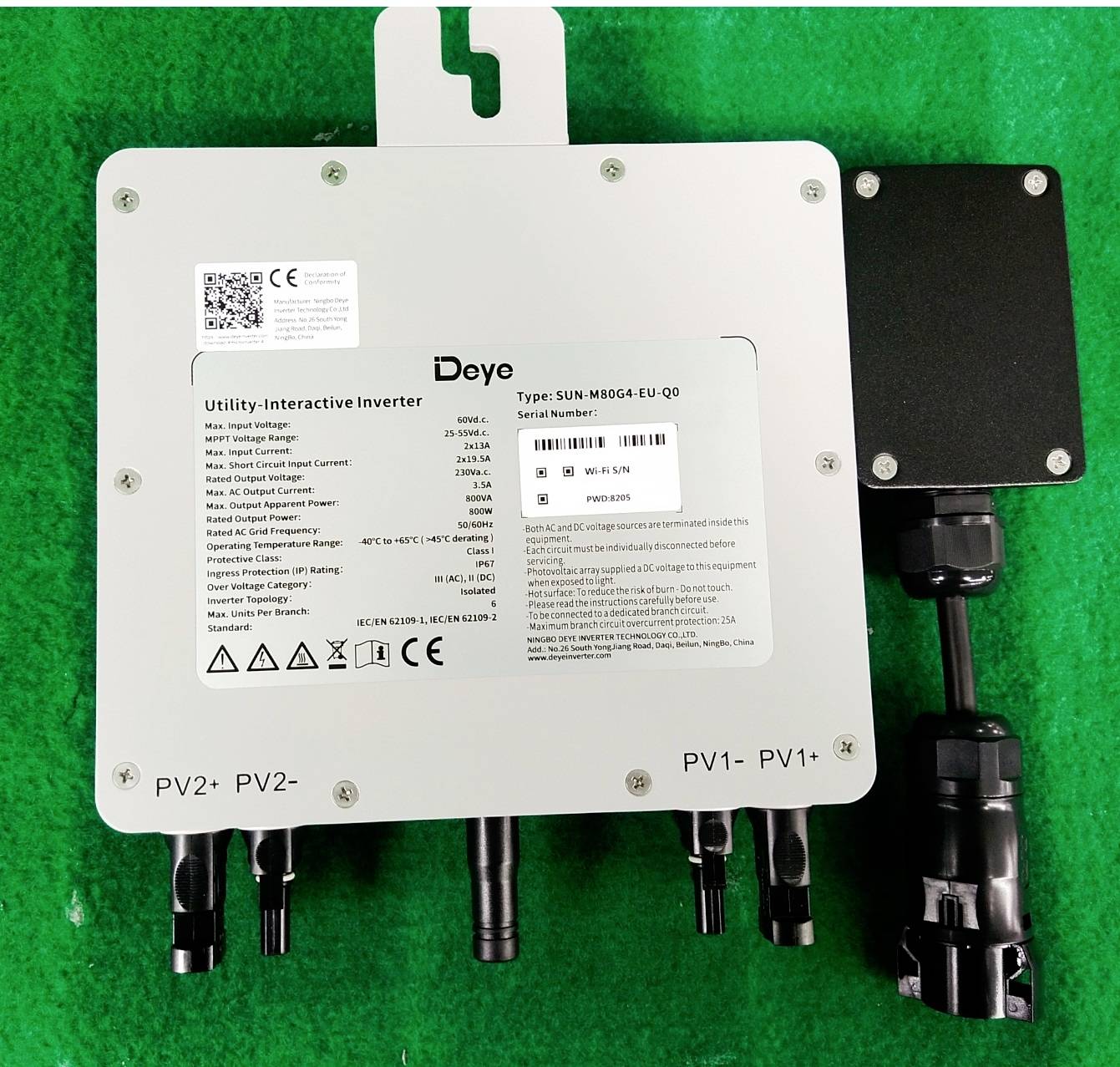

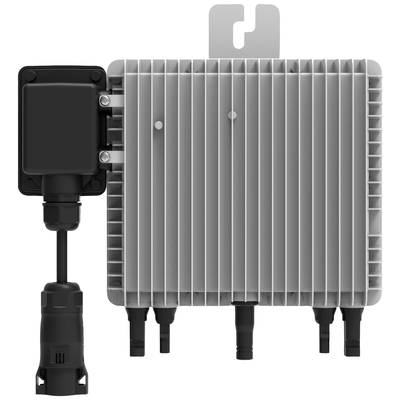

Deye Micro-inverter SUN-M80G4-EU-Q0 800 W - 230 V AC Dual MPP trackers, Remote operation, Wi-Fi communication
EAN:
Part number:
Item no:
Highlights & Details
Micro inverter SUN-M80G4-EU-Q0 800 watt WiFi
- Dual-MPPT: Equipped with two MPP trackers per module
- Input for 2 solar modules 42.5 V / 13 A
- Output power 800 W at 230 V / 3.5 A
Technical specifications
- Max. PV Input Power(W): 210-560 (2 Pieces)
- Max. PV Input Voltage: 60 V
- Start-up Voltage : 20 V
- MPPT voltage range : 25-55 V
- Rated PV Input voltage: 42.5 V
- Max. Input Short-Circuit Current (A) 19.5+19.5
- Max. Operating PV Input Current(A) 13+13
- No. of MPP Trackers/No. of String per MPP Tracker 2/1
- AC output side : -
- Rated AC Output Active Power : 800 W
- Max.AC Output Apparent Power : 800 VA
- Rated AC output current : 3.7/3.5 A
- Max.AC Output Current: 3.7/3.5 A
- Rated output voltage/range : 220/230 V 0.85Un-1.1Un
- Grid Connection Form : L/N/PE
- Rated Output Grid Frequency/range(Hz) : 50/45-55, 60/55-65
- Max. unit per branch: 6
- Power Factor Adjustment Range : 0.9 leading to 0.9lagging
- Total Current Harmonic Distortion THDi : Less than 3%
- DC Injection Current : Less than 0.5%ln
- Efficiency : -
- Max. Efficiency 96.5%
- Euro Efficiency 96.0%
- MPPT Efficiency More than 99%
- Equipment Protection : -
- DC Polarity Reverse Connection Protection : YES
- AC Output Overcurrent Protection : YES
- AC Output Overvoltage Protection : YES
- AC Output Short Circuit Protection : YES
- Thermal Protection : YES
- DC Terminal Insulation Impedance Monitoring : YES
- Power Network Monitoring : YES
- Island protection monitoring : YES
- Earth Fault Detection : YES
- Overvoltage Load Drop Protection : YES
- Communication Interface : WiFi
- Permissible Altitude (m) : 2000m
- Noise : ≤ 25 (dB)
- Ingress Protection(IP) Rating : IP 67
- Inverter Topology Isolated
- Over Voltage Category : OVC II(DC),OVC III(AC)
- Type Of Cooling : natural cooling
- Input voltage
25 - 55 V
- Product type
Micro-inverter
- Signal output type
Sine wave
- Output voltage
230 V AC
800 W
- Nominal load efficiency
95 %
- Output frequency
50 / 45 - 55 Hz; 60/ 55 - 65 Hz
- Permanent current
3.5 A
- Input current (max.)
13 A + 13 A
- Weight
3 kg
- Cooling method
Fanless
- Width
190 mm
- Height
40 mm
- Length
280.5 mm
- Peak output power
800 VA
- Type
SUN-M80G4-EU-Q0
- Features
Dual MPP trackers
Remote operation
Wi-Fi communication
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3220127 Deye Micro-inverter SUN-M80G4-EU-Q0 800 W - 230 V AC Dual MPP trackers, Remote operation, Wi-Fi communication
Description
Dual-MPPT: Equipped with two MPP trackers per module, it maximizes the power yield by optimizing the current conversion of each PV module.
Robust protection: IP67 ensures dust and water resistance and increases the durability and reliability of the inverter in various environments.
Wi-Fi integration: Built-in Wi-Fi simplifies real-time system monitoring and management through an intuitive user interface.
Fast shut-off function: Increases safety by complying with standard DIN VDE V 0126-95, and ensures alternating current within <100 ms for fast shut-down.

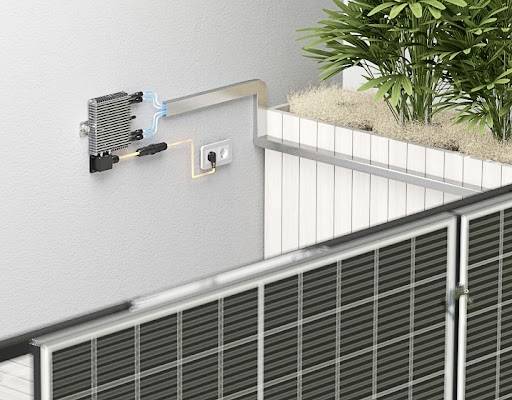

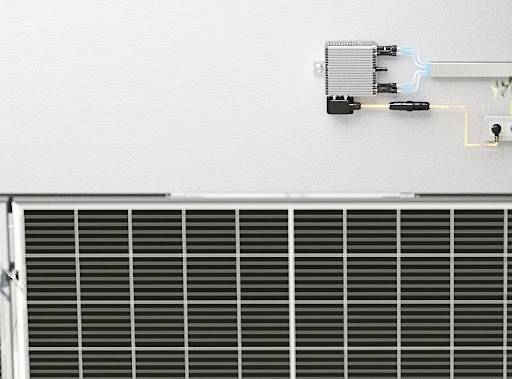

Easy installation: Designed for quick and easy to connect PV balcony systems, simplifies the installation process and minimizes setup time.
Extended relay life: External relay designed to operate at low temperatures, providing long life and easier maintenance.
Technical data
Max. PV Input Power (W) 210-560 (2 pieces)
Max. PV input voltage 60 V
Start voltage 20 V
MPPT voltage range = 25-55 V
Nominal PV-Input voltage 42.5 V
Max. Input short-circuit current (A) 19.5+19.5
Max. Operating PV input current (A) 13+13
Number of MPP trackers/number of strings per MPP tracker 2/1
AC output side:
Rated AC output power 800 W
Max. AC output 800 VA
Rated AC output current 3.7/3.5 A
Max. AC output current 3.7/3.5 A
Nominal output voltage/range 220/230 V 0.85 Un-1.1 Un
POWER CONNECTION TYPE L/N/PE
Nominal output network frequency/range (Hz) 50/45-55, 60/55-65
Max. Unit per branch: 6
Power factor adjustment range: 0.9 leading up to 0.9 trailing
Total harmonic distortion of THDi current: Less than 3%
DC feed current: Less than 0.5 %ln
Efficiency:
Maximum efficiency: 96.5 %
Euro efficiency 96.0%
MPPT Efficiency More than 99%
Device protection:
DC polarity protection
AC output overcurrent protection
AC output overvoltage protection
AC output short circuit protection
Thermal protection
Monitoring of the DC connection insulation impedance
Power supply monitoring
Island protection monitoring
Ground fault detection
Overvoltage protection
Communication interface: WiFi
Permissible height (m): 2000 m
Noise: ≤ 25 (dB)
IP 67 protection
Operating temperature range (°C): -40 to +60℃, >45℃ power reduction
This text is machine translated.
Features
- 2 MPP Tracker, level monitoring module
- Protection class IP67
- WIFI communication
- Fast shut-off function
- Simple installation, suitable for quick-plug balcony PV-system
- <100ms AC rapid discharge, compliant with new ones
- Required standard DIN VDE 0620-1 (<200ms) till
- Protection of human safety
- Complete NS protection with self-control
- Low temperature external relay advantage, long life, easier maintenance
- With integrated WIFI
Scope of delivery
- Micro-Inverter
- User manual.
