Digitus DIGITUS - CAT 6, Klasse E Patch Panel, ungeschirmt Patch panel 483 mm (19") CAT 6A Black Equipped

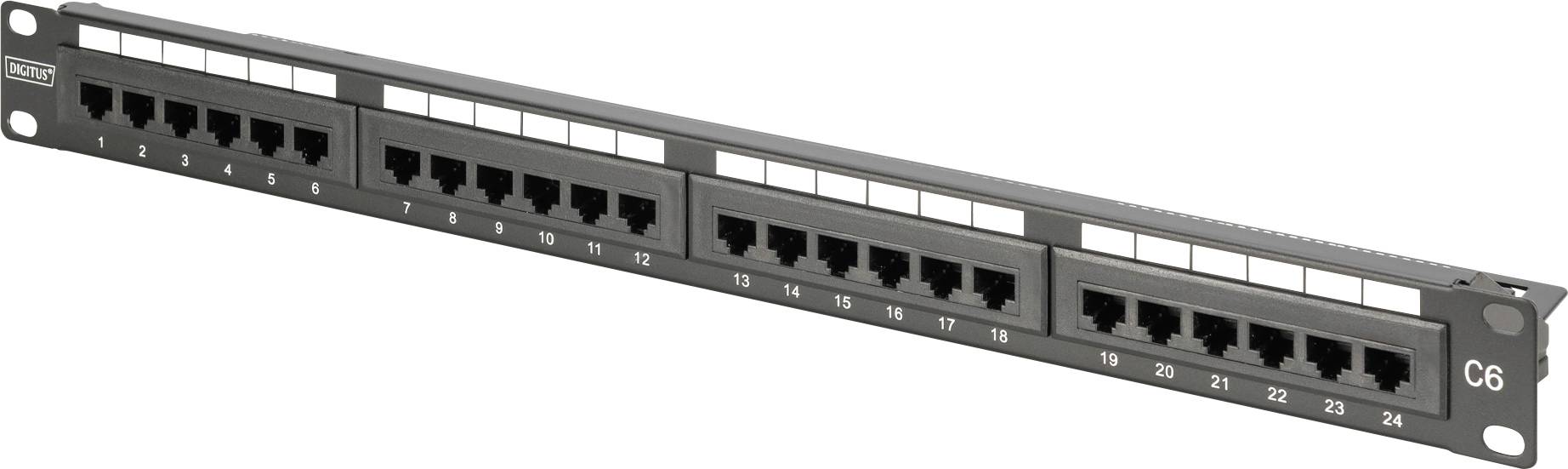

A black 24-port network patch panel with ports numbered 1 to 24.

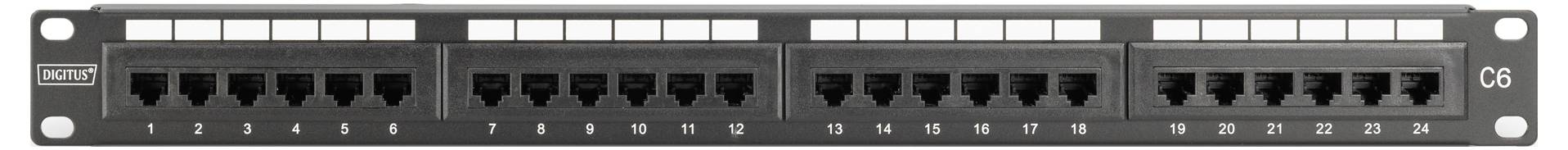

A 24-port Ethernet patch panel with labeled ports from 1 to 24, used for network cable management and connectivity.

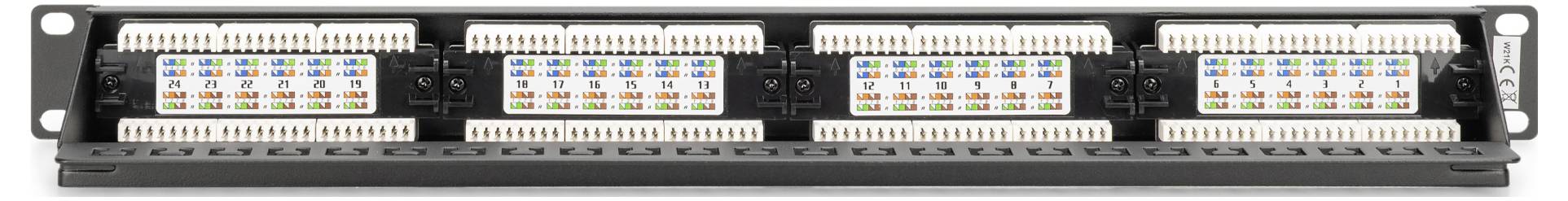

'A patch panel with rows of RJ45 ports and colored wiring labels for network cable organization.'

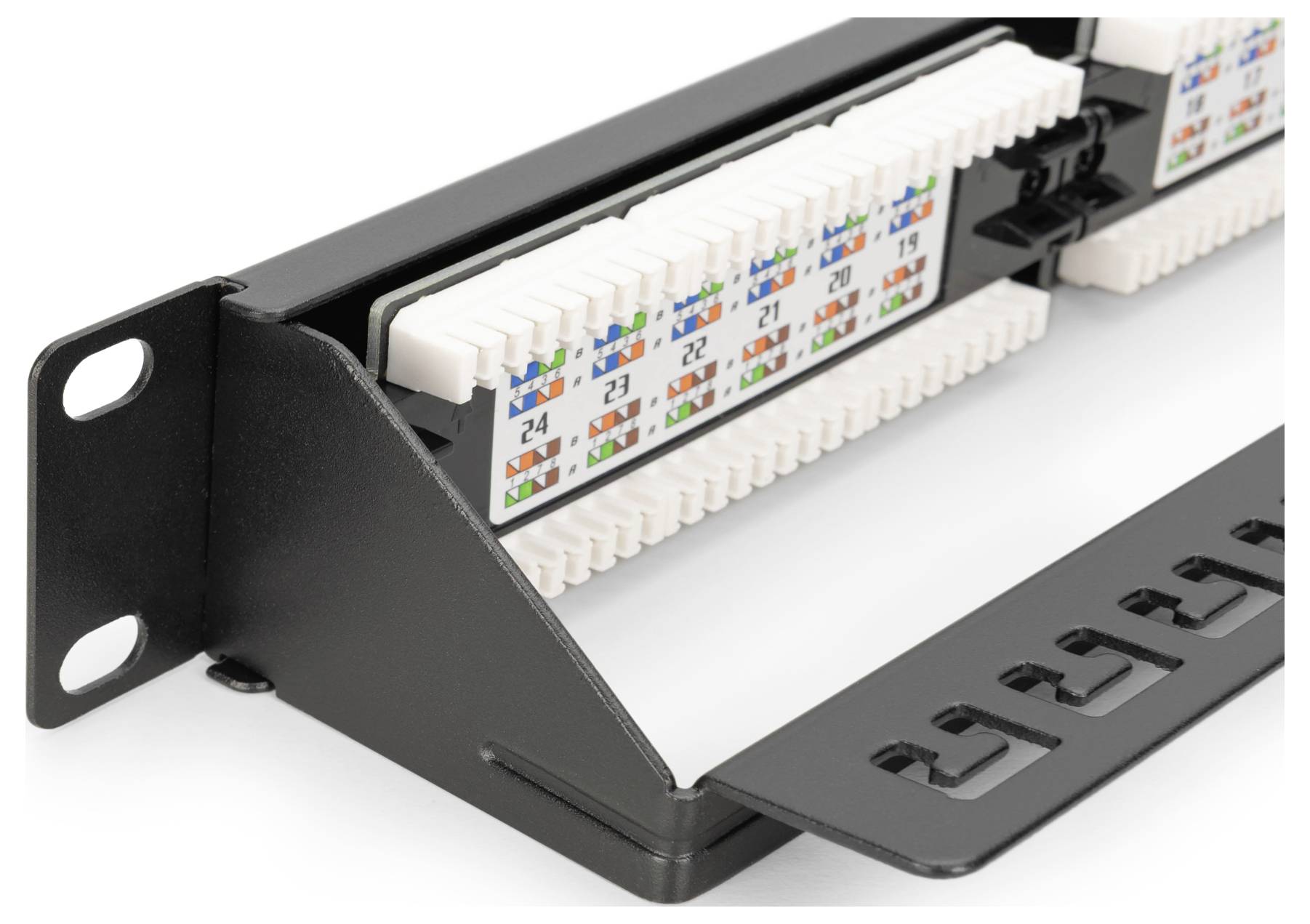

'Angled patch panel with labeled network ports for structured cabling, mounted in a black metal frame, designed for organized wiring.'

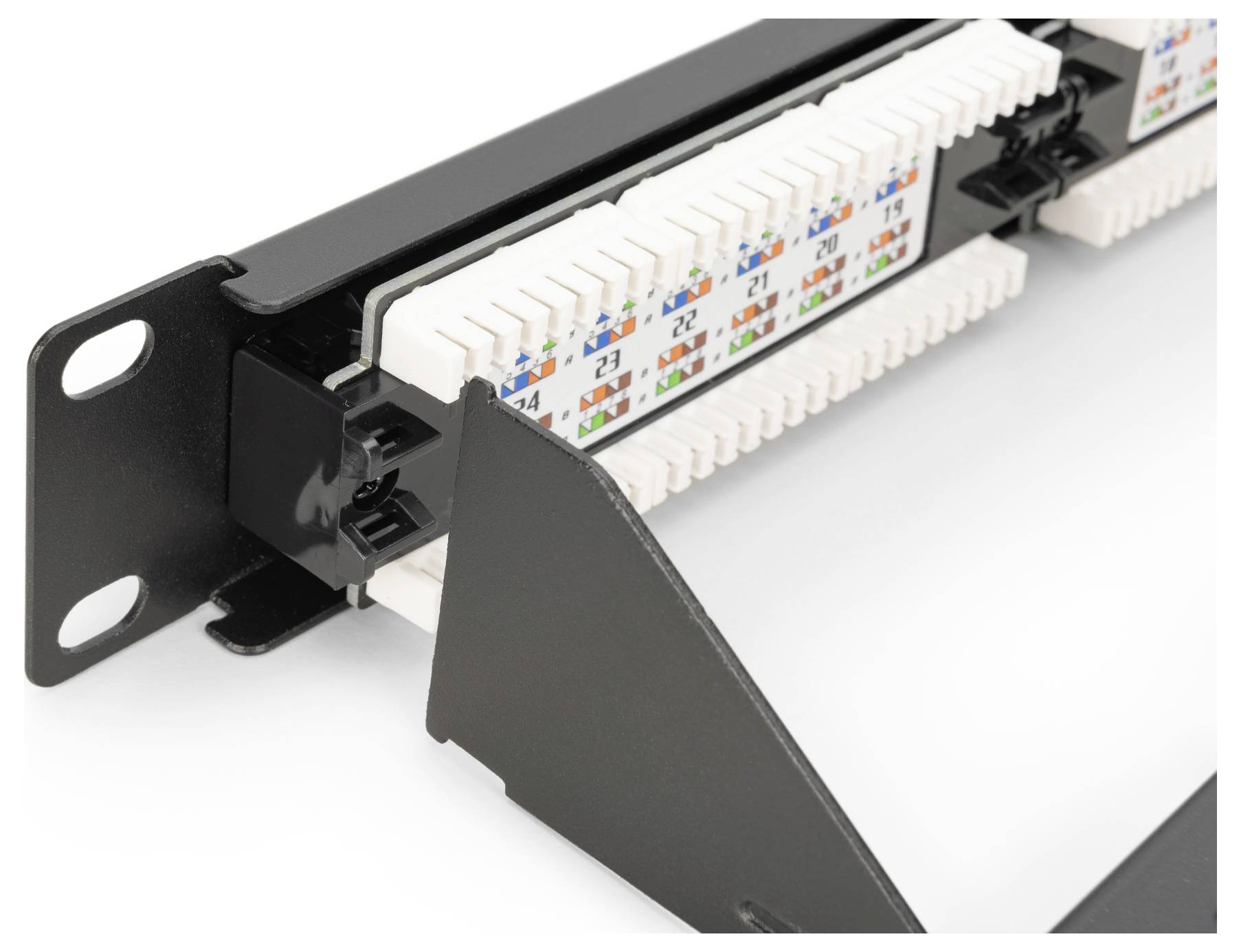

A close-up of a patch panel with color-coded wire connectors, showing numbered ports for network cable management in a server rack setup.

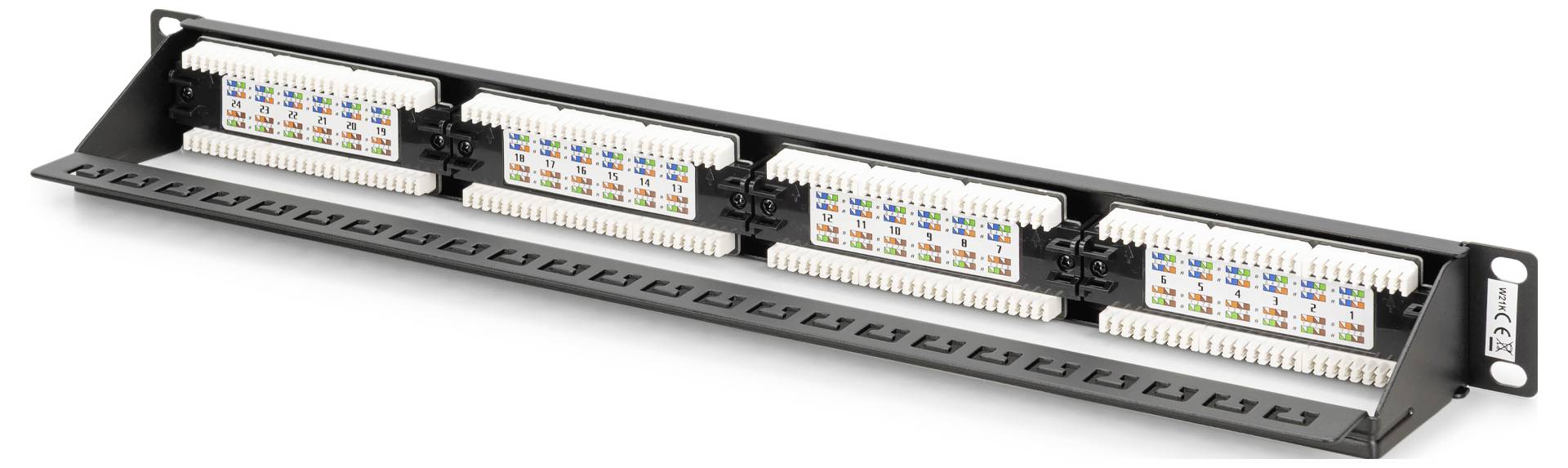

'Patch panel with four rows of wiring connection blocks, designed for network cable management and organization in data centers or IT environments.'
'Patch panel with multiple ethernet ports, labeled as Cat6. Includes packet with mounting accessories and installation guide.'
1/7
EAN:
Part number:
Item no:
Dispatches on Fri 6 Nov
676 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 34.99 / piece)
€ 34.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Digitus CAT 6, class E patch panel, unshielded

  • Future-oriented standards and high-end quality for your network.

Technical specifications

  • Application areas: Up to 250 MHz, 1GBase-T, PoE
  • Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
  • 1.5 mm galvanized, cold-rolled steel in accordance with EN1.4301, US S30400, AISI 304 AND LMSAD110
  • Material RJ45-socket ABS UL 94V-0
  • Contact RJ45-socket: Nickel-plated phosphorus bronze, 0.5 μ gold-plated contact
  • RJ-45 shielding: Nickel-plated bronze
  • LSA-cutting terminal: Crown LSA+, UL 94V-2, galvanized phosphor bronze
  • FR4, UL 94V-0 CIRCUIT BOARD
  • Plug-in power 30 N max. (IEC 60603-7-5)
  • Tensile load: 7.7 kg between socket and plug
  • OPERATING TEMPERATURE -20 °C TO +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Plug-in cycle bush: 750 gem ISO / IEC 11801, IEC 60603-7-5
  • Terminal: 200 gem ISO / IEC 11801, IEC 60603-7-5
  • Wire intake: 22–26 AWG solid and stranded conductor
  • Insulation resistance 500 MΩ
  • Contact resistance 20 mΩ
  • Voltage resistance 1000 VDC (contact/contact), 1500 VDC (contact/earth)
Product type

Patch panel

Rack size

483 mm (19")

CAT 6A

Transfer rate

1 GBit/s

Patch panel design

Equipped

Connection method

LSA

Width

483 mm

Factory colour

Black

Version

Cable

Cable use

PC

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3556267 Digitus DIGITUS - CAT 6, Klasse E Patch Panel, ungeschirmt Patch panel 483 mm (19") CAT 6A Black Equipped

Description

The Digitus® unshielded CAT 6 patch panel is available as a 16- or 24-port (1 height unit) or 48-port version (2 height units). It is manufactured and UL certified according to the requirements as per Link Performance class E, for up to 250 MHz, ISO/IEC 11801 and EN 50173. The housing is made of 1.5 mm galvanized cold-rolled steel and is therefore perfect for the 19" cabinet mounting.


This text is machine translated.

Features

  • General properties:
  • Suitable for 483 mm (19 ") cabinet mounting
  • RJ45 sockets, 8P8C
  • Cable installation via LSA strips, color coded as per EIA/TIA 568 A & B
  • Cable fixing through quick latches
  • Mechanical properties:
  • Earthing wire: Not included
