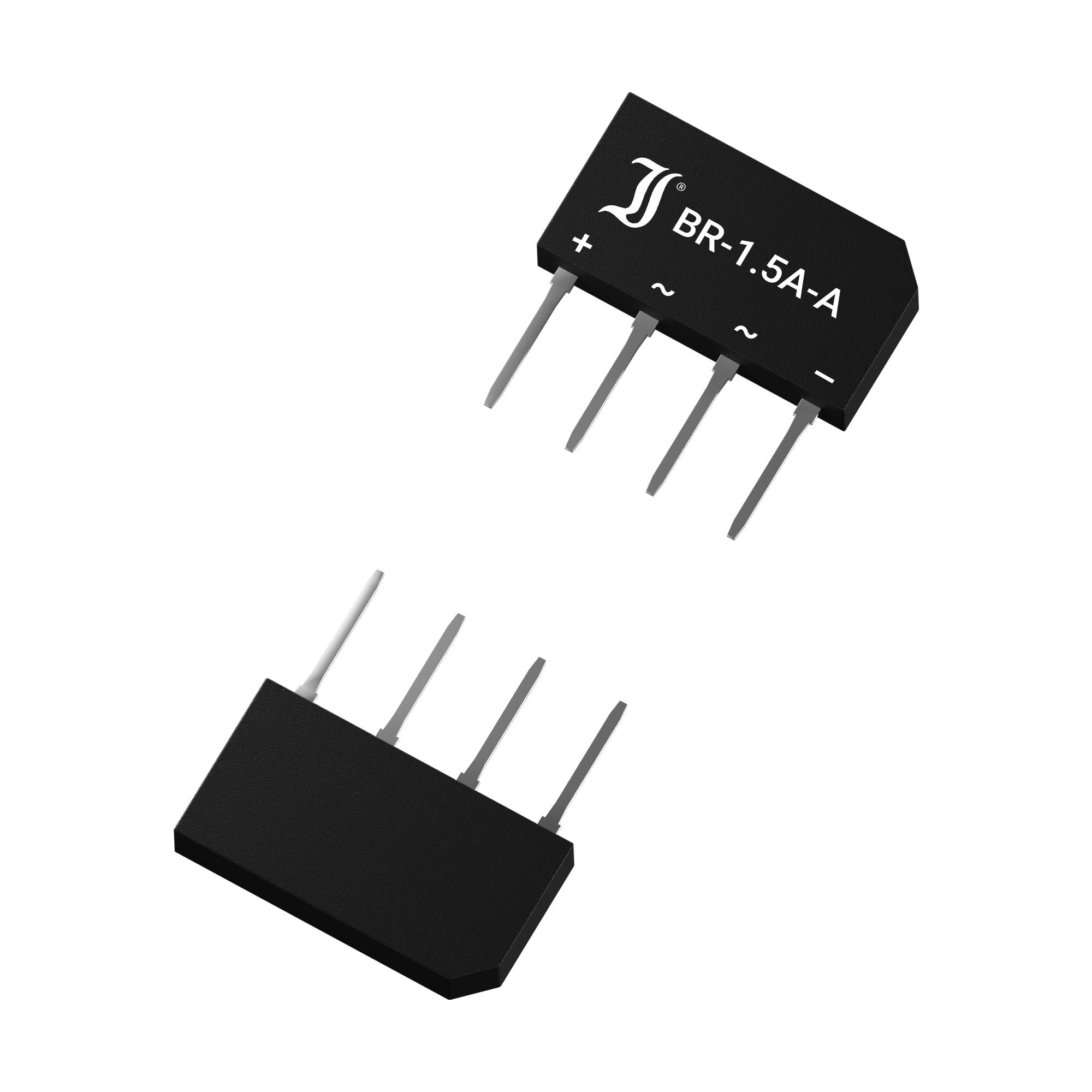

Image similar
Image similar
Diotec B380C1500A Diode bridge GBS_SIL-1.5-2.3 800 V
EAN:
Part number:
Item no:
Product type
Diode bridge
Enclosure
GBS_SIL-1.5-2.3
U(RRM)
800 V
Mounting type
Through-hole mounting
Type
B380C1500A
Datasheet (PDF)
Number
Total (€ 0.42 / piece)
€ 0.42
plus VAT.
14-day return policy included
Technical specifications
- Type SILHousing: GBS_SIL-1.5-2.3Periodic Peak Reverse Voltage - VRRM 800 VContinuous current - IFAV 2.30 AJunction temperature - Tjmax 150 °CReverse delay time - trr: NsSurge current - IFSM 50.00 AForward voltage - VF: VIF AReverse current - IR 5,000 µAVR 800 VLock layer capacity - CJ: PFVR V
- Type
B380C1500A
- Product type
Diode bridge
- Enclosure
GBS_SIL-1.5-2.3
- Manufacturer
Diotec
- Manuf. code
DIO
- U(RRM)
800 V
- I(FSM) 50Hz
50 A
- I(FSM) 60Hz
50.00 A
- Reverse leakage current I(r)
5 µA
- Reverse leakage current I(r) reference
800 V
- Operating temperature (max.)
150 °C
- Mounting type
Through-hole mounting
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2809087 Diotec B380C1500A Diode bridge GBS_SIL-1.5-2.3 800 V
User & Safety Instructions
User & Safety Instructions 2809087 Diotec B380C1500A Diode bridge GBS_SIL-1.5-2.3 800 V
Description
Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
