Image similar

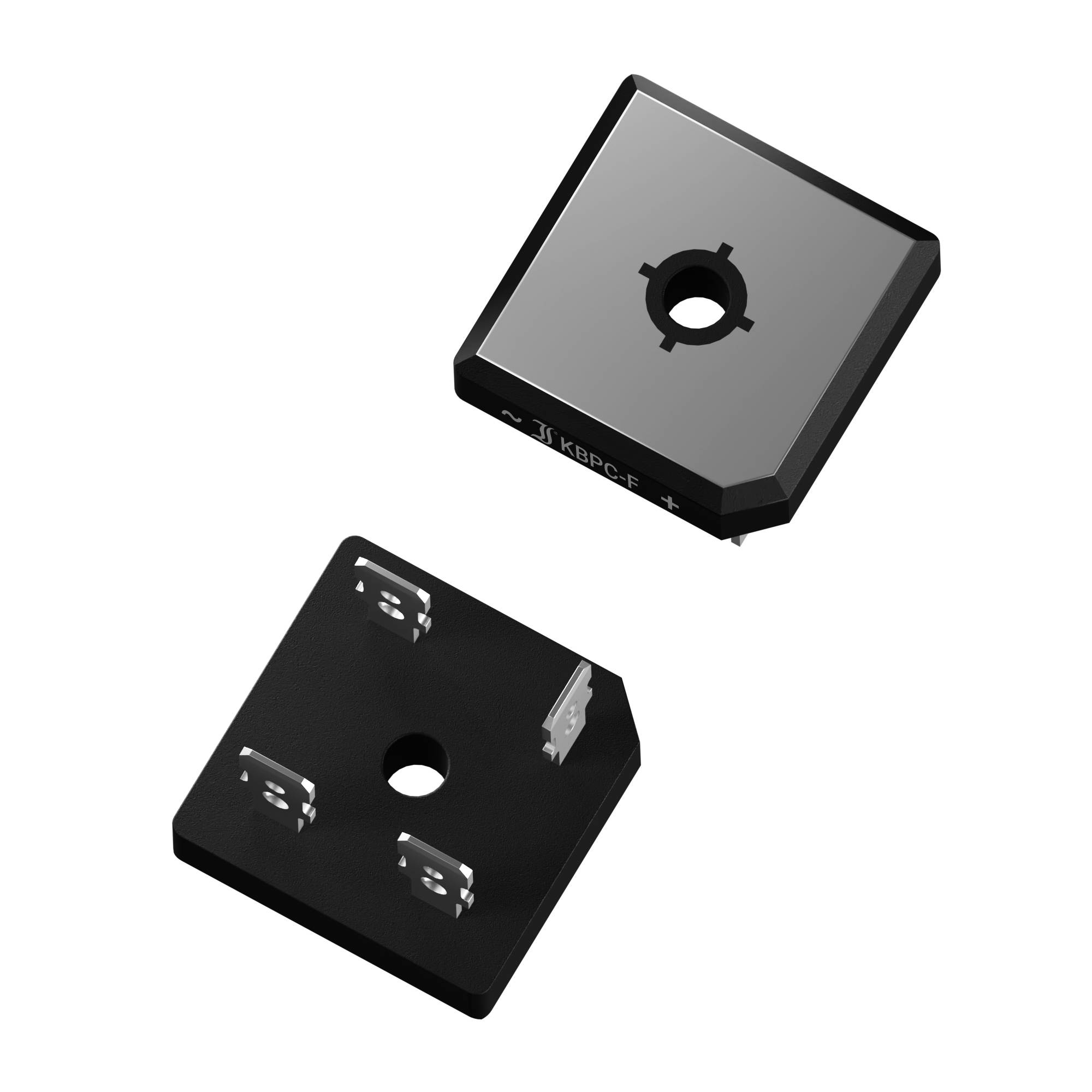

Diotec KBPC5008FP Diode bridge KBPC 800 V 25 A
Product type
Diode bridge
Enclosure
KBPC
U(RRM)
800 V
Forward current I(F)
25 A
Forward voltage U(F)
1.10 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 10
Total (€ 3.70023 / piece)
€ 3.70
incl. VAT
14-day return policy included
Technical specifications
- Type: Fast-onKBPC casingPeriodic Peak Reverse Voltage - VRRM 800 VContinuous current - IFAV 50.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: NsSurge current - IFSM 400.00 AForward voltage - VF 1.10 VIF 25.00 AReverse current - IR 10,000 µAVR 800 VLock layer capacity - CJ: PFVR V
- Type
KBPC5008FP
- Product type
Diode bridge
- Enclosure
KBPC
- Manufacturer
Diotec
- Manuf. code
DIO
- U(RRM)
800 V
- Forward current I(F)
25 A
- Forward voltage U(F)
1.10 V
- Forward voltage reference
25.00 A
- I(FSM) 50Hz
400 A
- Reverse leakage current I(r)
10 µA
- Reverse leakage current I(r) reference
800 V
- Operating temperature (max.)
150 °C
- Mounting type
Fast-on
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2809863 Diotec KBPC5008FP Diode bridge KBPC 800 V 25 A
User & Safety Instructions
User & Safety Instructions 2809863 Diotec KBPC5008FP Diode bridge KBPC 800 V 25 A
Description
Rectifiers from leading manufacturers. Full details free to download from our comprehensive product documents library.
