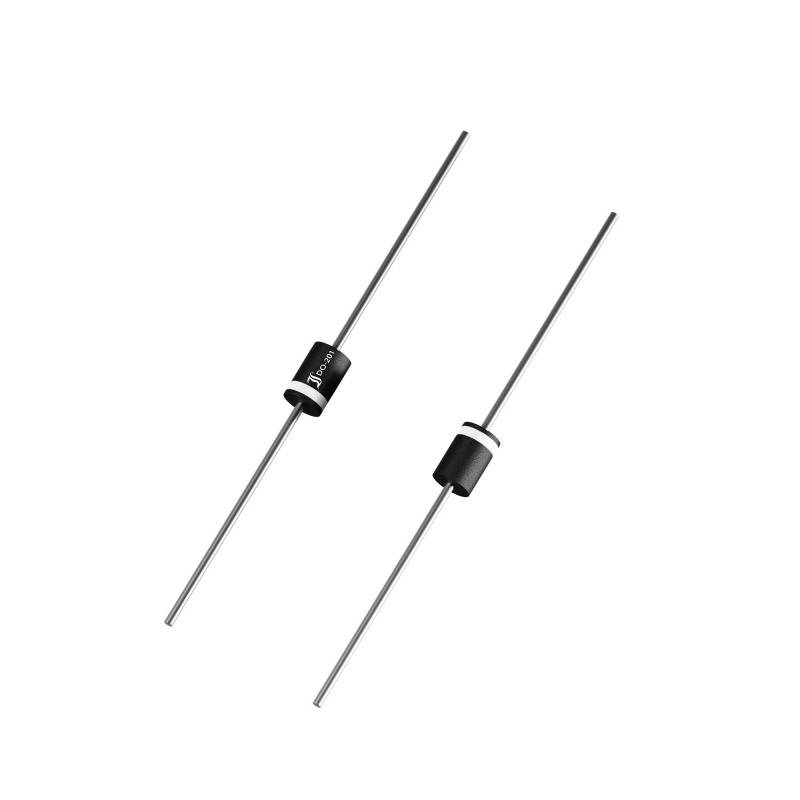

Diotec Rectifier MUR460L DO 201 600 V 4 A
Product type
Rectifier
Enclosure
DO 201
Forward current I(F)
4 A
Reverse voltage U(R)
600 V
Forward voltage U(F)
1.28 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 20
Total (€ 0.17451 / piece)
€ 0.17
incl. VAT
14-day return policy included
Technical specifications
- Type
MUR460L
- Product type
Rectifier
- Enclosure
DO 201
- Manufacturer
Diotec
- Forward current I(F)
4 A
- Reverse voltage U(R)
600 V
- Forward voltage U(F)
1.28 V
- Reverse leakage current I(r)
10 µA
- Operating temperature (max.)
150 °C
- Mounting type
Through-hole mounting
- I(FSM) 50Hz
110 A
- Reverse recovery time T(rr)
60 ns
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2807895 Diotec Rectifier MUR460L DO 201 600 V 4 A
User & Safety Instructions
User & Safety Instructions 2807895 Diotec Rectifier MUR460L DO 201 600 V 4 A
