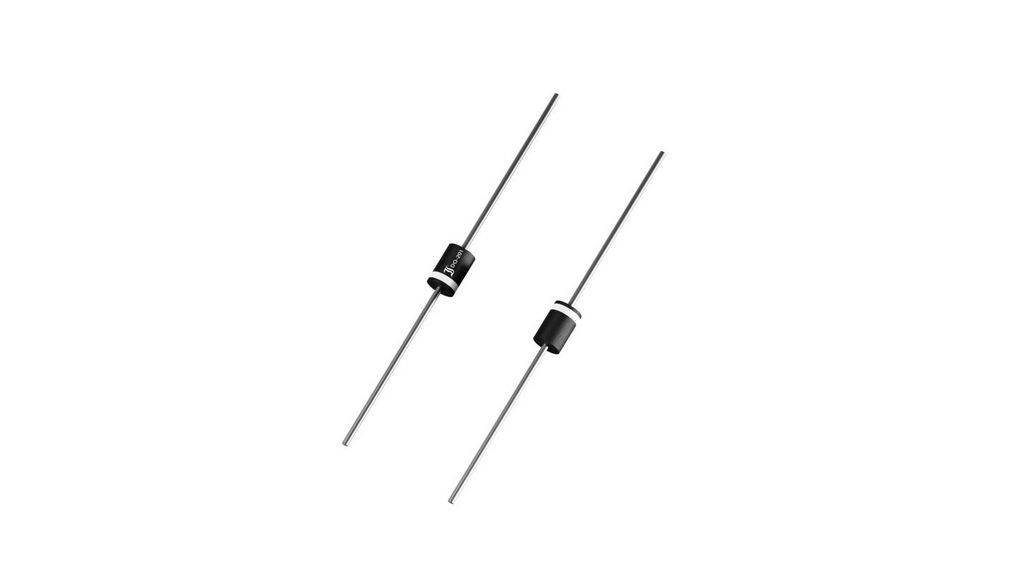

Two electronic diodes with black casings and silver connecting wires on a white background.

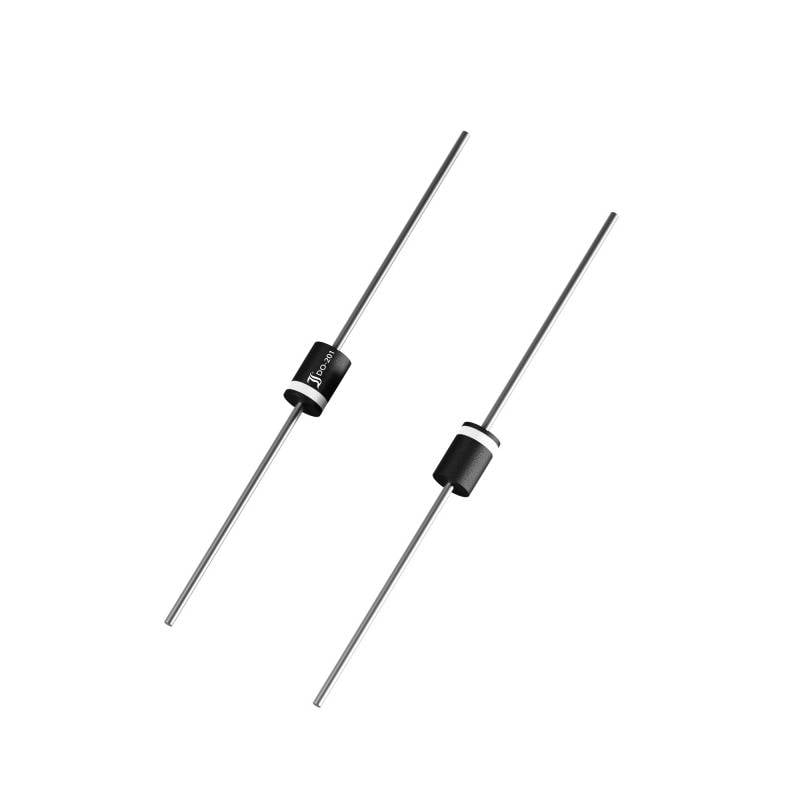

Two electronic diodes with black casings and silver connecting wires on a white background.

Image similar

Diotec

Product type

Rectifier

Enclosure

DO 201

Forward current I(F)

3 A

Reverse voltage U(R)

600 V

Forward voltage U(F)

1.70 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Mon 9 Nov

797 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 20

Total (€ 0.13704 / piece)

€ 0.14

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type AxialDO-201 housingPeriodic Peak Reverse Voltage - VRRM 600 VContinuous current - IFAV 3.00 AJunction temperature - Tjmax 175 °CReverse delay time - trr: 75 nsSurge current - IFSM 100.00 AForward voltage - VF 1.70 VIF 3.00 AReverse current - IR 5,000 µAVR 600 VLock layer capacity - CJ: PFVR V

Type: UF5406

Product type: Rectifier

Enclosure: DO 201

Manufacturer: Diotec

Forward current I(F): 3 A

Reverse voltage U(R): 600 V

Forward voltage U(F): 1.70 V

Reverse leakage current I(r): 5 µA

Operating temperature (max.): 175 °C

Mounting type: Through-hole mounting

I(FSM) 50Hz: 100 A

Reverse recovery time T(rr): 75 ns

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2808845 Diotec Rectifier UF5406 DO 201 600 V 3 A

User & Safety Instructions

User & Safety Instructions 2808845 Diotec Rectifier UF5406 DO 201 600 V 3 A
