Dobot MG400 DT-AC-HDSR-001 Expansion module
EAN:
Part number:
Item no:
Number
Total (€ 2,536.97 / piece)
€ 2,536.97
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Conveyor belt kit for MG400
- High-precision industrial linear guide
Technical specifications
- Payload 20 kg
- Effective stroke: 800 mm
- Repeatability ±0.05 mm
- Length of guide spindle: 20 mm
- Rated output: 200W
- Maximum speed 800 mm / s
- Maximum acceleration: 1600 mm/s²
- Width
230 mm
- Length
1150 mm
- Weight
15 kg
- Height
90 mm
- Compatible with (details)
MG400
- Product type
Expansion module
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2899523 Dobot MG400 DT-AC-HDSR-001 Expansion module
Description

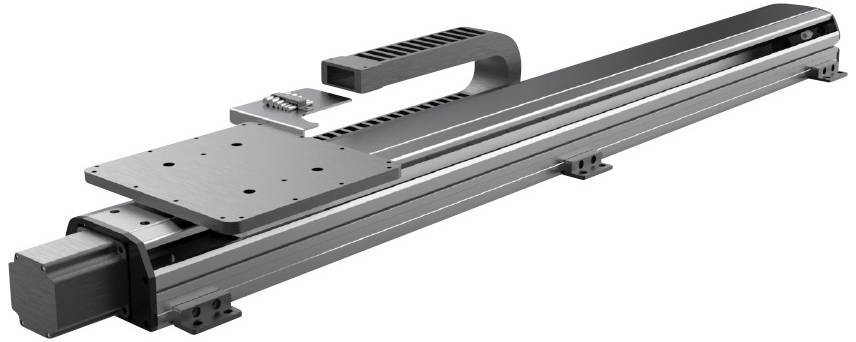

The DOBOT conveyor rail kit allows the MG400 to extend the working space and gives it mobility for tasks such as transport and assembly. The high-precision industrial linear rail ensures smooth and continuous operation of the robot. The MG400 conveyor belt kit includes a linear module, a servo motor and a servo driver.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Linear Module
- Servo-Motor
- Servo drive
- Performance Harness
- Harness control
- Extended harness of the emergency stop device MG400
- Emergency stop terminal of the servo
- DI cable harness
- DO cable harness
- Network cable
- User manual.
