Eberle 191873154502 UTE 1031-RAL9010-G-55 Indoor thermostat Flush mount 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
14-day return policy included
Highlights & Details
EBERLE UTE 1031-RAL9010-G-55 UP-ROOM CONTROLLER
- FLUSH-MOUNTED ROOM CONTROLLER, 5 - 30 C, 230 V AC1 changeover contact, 10 A/5 A.Mounting in 55er flush-mounted socket
Technical specifications
- Product type
Indoor thermostat
- Operation type
electronical
- Max. temperature setting
30 °C
- Temperature settings
5 up to 30 °C
- Display
No
- Remote sensor
No
- Compatible with
Underfloor heating
Heaters
- Mounting type
Flush mount
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Contact load capacity
10 A
- Factory colour
Polar white glossy
- Similar RAL
9010
- Width
55 mm
- Height
55 mm
not cloud-enabled
IP30
- Dim
(W x H x D) 55 x 55 x 16.0000 mm
- Weight
55 g
- Contact type
1 change-over
- Min. temperature setting
5 °C
- Depth
16.0000 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2559298 Eberle 191873154502 UTE 1031-RAL9010-G-55 Indoor thermostat Flush mount 1 pc(s)
Description

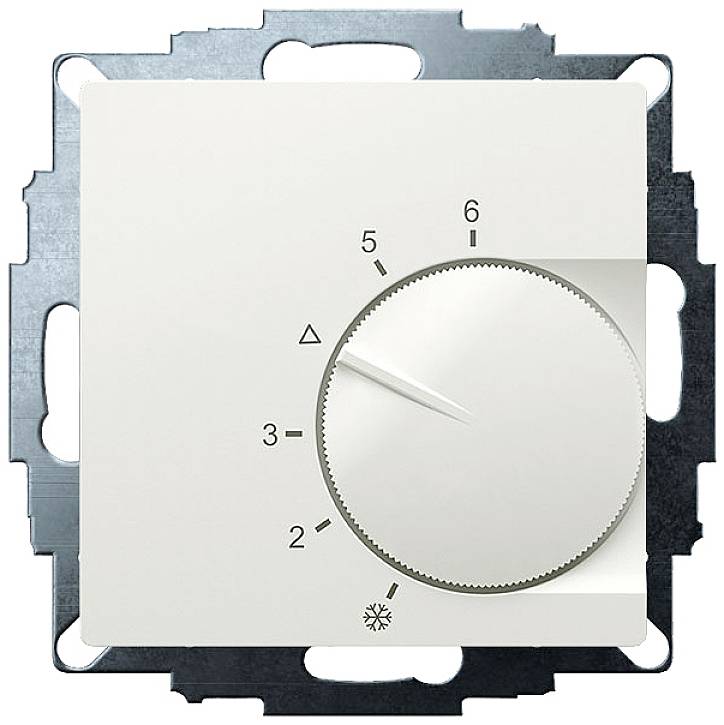

Electromechanical flush-mounted room temperature controller for controlling or monitoring temperatures in living rooms, offices and hotels. Suitable for all common switch programs. Polar white glossy, 55 x 55 cover with button. Suitable for water-guided and electrical heating systems. A very small switching difference is achieved through the thermal feedback. Adjustable range restriction in the adjustment knob as heating cost brake. A captive screw with threaded insert to secure the housing cover and convenient plug-in terminals make it easy to install. Mounting in 55er flush-mounted socket.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Controller subcleaning insert
- Regulator cover
- Setpoint control button
- User manual.
