Name: Eberle 527820455604 UTE 4800-Rw-RAL9016-G-55 Indoor thermostat Flush mount 24h mode, 7 day mode Heating/cooling 1 pc(s)
Brand: Eberle
SKU: 3192699
Availability: BackOrder

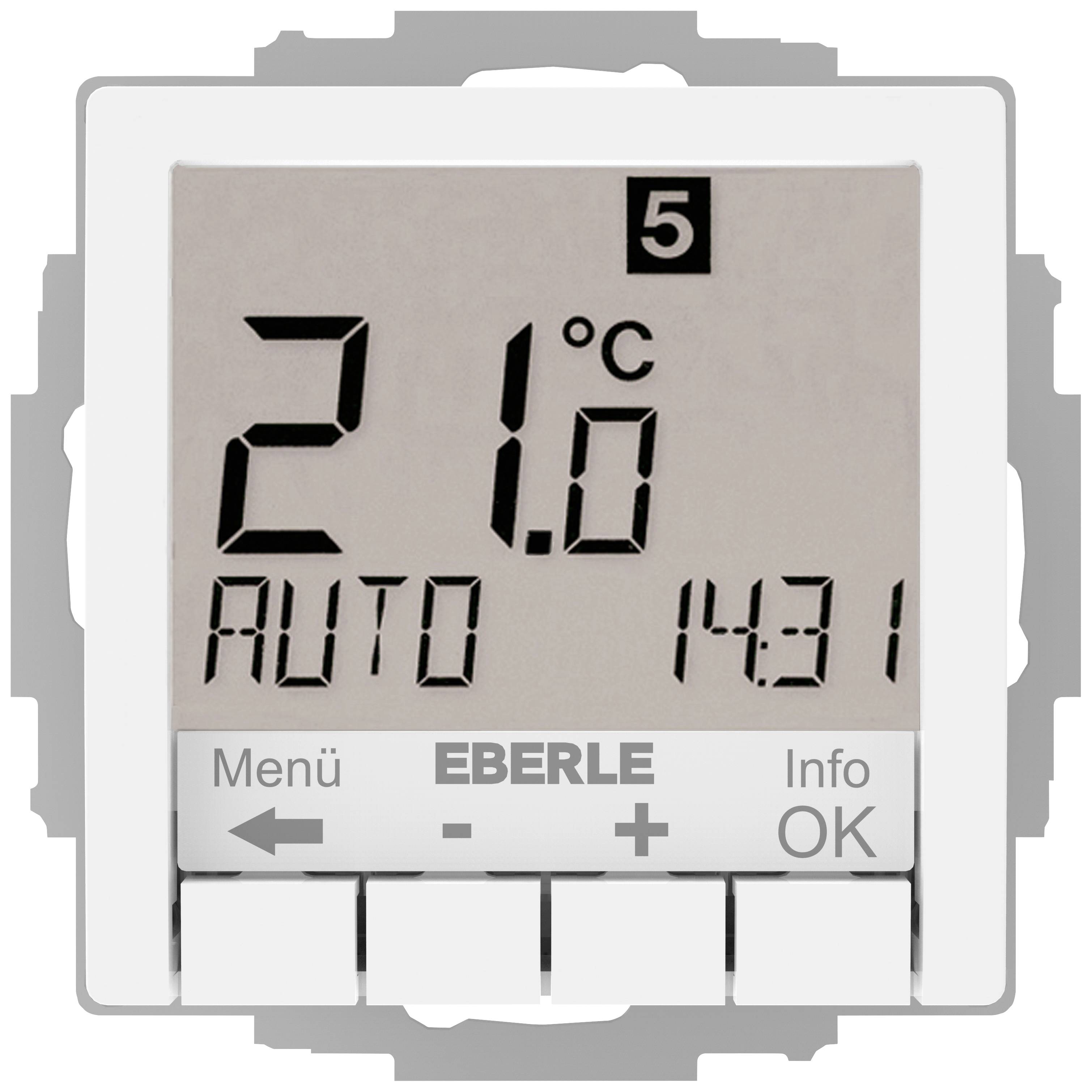

Thermostat display shows 21°C in Automatic mode with time 14:31. Menu and settings buttons located below.

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 17 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 169.99 / piece)

€ 169.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Eberle UTE 4800-RW-RAL9016-G-55 UP thermostat inset

Flexible - adjustable time programs
Energy efficient - optimum-start function
Transparent - power consumption display
Versatile - heating/cooling application
Easy installation - programmable via display menu and with removed control panel
Digital - optimally readable display with background lighting

Technical specifications

Switching current: Heating: 10 mA … 5 (2) A cooling

Product type: Indoor thermostat

Operation type: electronical

Switching cycle: 24h mode
7 day mode

Max. temperature setting: 30 °C

Temperature settings: 5 up to 30 °C

Frost protection: Yes

Display: Yes

Remote sensor: Yes (optional)

Compatible with: Underfloor heating
Heaters

Mounting type: Flush mount

Power supply (LOV): mains-powered

Operating voltage: 230 V

Factory colour: White (glossy)

Similar RAL: 9016

Width: 55 mm

Height: 55 mm

Dim: (W x H) 55 mm x 55 mm

Type: Heating/cooling

Contact type: 1 change-over

Min. temperature setting: 5 °C

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3192699 Eberle 527820455604 UTE 4800-Rw-RAL9016-G-55 Indoor thermostat Flush mount 24h mode, 7 day mode Heating/cooling 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3192699 Eberle 527820455604 UTE 4800-Rw-RAL9016-G-55 Indoor thermostat Flush mount 24h mode, 7 day mode Heating/cooling 1 pc(s)

Description

UTE 4100/4800-RW in conjunction with actuators for floor heating controls the room temperature by means of a converter output (heating/cooling switch) – Ideal in combination with heat pumps.

This text is machine translated.

Features

Nominal voltage AC 230 V
White backlighting
Single-line text display for self-explanatory operation
Pre-set and adjustable lifestyle time programs
Extra day program (e.g. for public holidays)
Block formation of switching times: 7-days, 5/2-days, all days equal
Max. 9 switch times per day
Optimum start (temperature is reached at the set time)
Short-time timer (Party) for changing the temperature on an hourly basis
Restart delay, e.g. for burners
Adaptation to valves open without current (with R-variant)
Valve protection (for R-version)
Automatic summer/winter time changeover
Anti-theft protection
Holiday function with date (from / to)
Frost protection
PWM or 2 point controller
Also programmable with removed control panel
Energy consumption display (switch-on time * costs) for the last 2 days, last week, month or year.
