Eberle 547890053602 UTE 2100-RAL9016-G-50 Indoor thermostat Flush mount Heating 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 57.13 / piece)
€
Highlights & Details
Eberle UTE 2100-RAL9016-G-50 UP-room controller
- In-wall room controller5 - 30 C.AC 230 V.Output contact-free using triacSwitchable 5 actuators each 3W
Technical specifications
- Operation type
electronical
- Max. temperature setting
30 °C
- Temperature settings
5 up to 30 °C
- Display
No
- Remote sensor
No
- Mounting type
Flush mount
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Factory colour
Active white (glossy)
- Similar RAL
9016
- Width
50 mm
- Height
50 mm
IP30
- Frost protection
Yes
- Dim
(W x H) 50 mm x 50 mm
- Contact type
Triac
- Compatible with
Underfloor heating
- Type
Heating
- Min. temperature setting
5 °C
- Weight
60 g
- Product type
Indoor thermostat
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2559373 Eberle 547890053602 UTE 2100-RAL9016-G-50 Indoor thermostat Flush mount Heating 1 pc(s)
Description

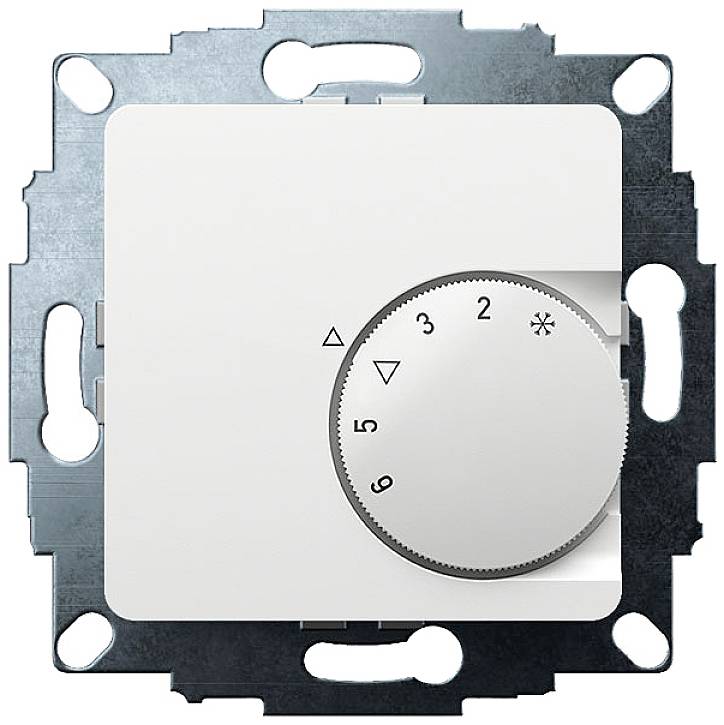

Electronic flush-mounted room temperature controller for controlling or monitoring temperatures in living rooms, offices and hotels. Suitable for all common switch programs. Active white glossy, 50x50 cover with button. Suitable for water-guided heating systems. By using a triac switch completely noiseless, in contrast to relays or bimetallic. Can be switched for actuators closed without current or closed without current, therefore can be used for heating or cooling. Adjustable range restriction in the adjustment knob as heating cost brake. A captive screw with threaded insert to secure the housing cover and convenient plug-in terminals make it easy to install. Mounting in 55er flush-mounted socket.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Controller subcleaning insert
- Regulator cover
- Setpoint control button
- User manual.
