Name: Eberle 557895054500 UTE 3500-RAL9010-G-55 Indoor thermostat Flush mount Heating/cooling 1 pc(s)
Brand: Eberle
SKU: 3192700
Availability: BackOrder

White digital temperature display on a square thermostat, showing '20.5'. Wi-Fi symbol and temperature indicator icon in the top right corner.

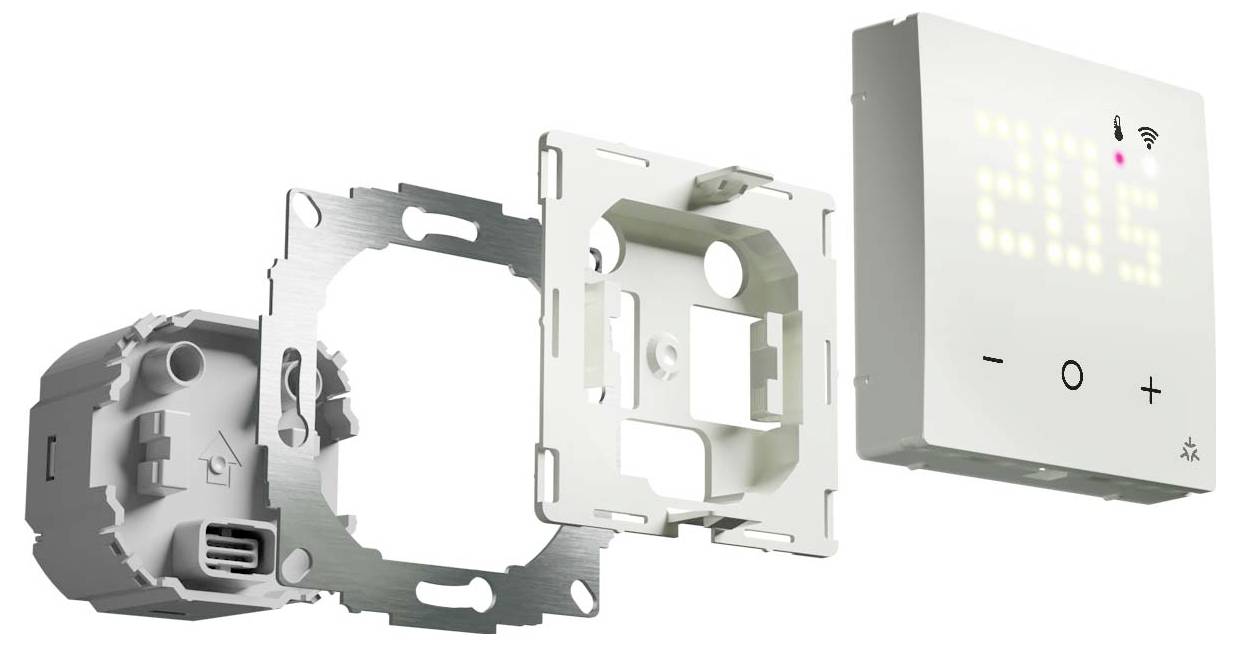

Exploded view of a digital room thermostat: housing, mounting frame and display unit. Display shows '20.5'.

A woman looks at a smart home display showing '20° C' with a green house symbol above it, in a modern room.

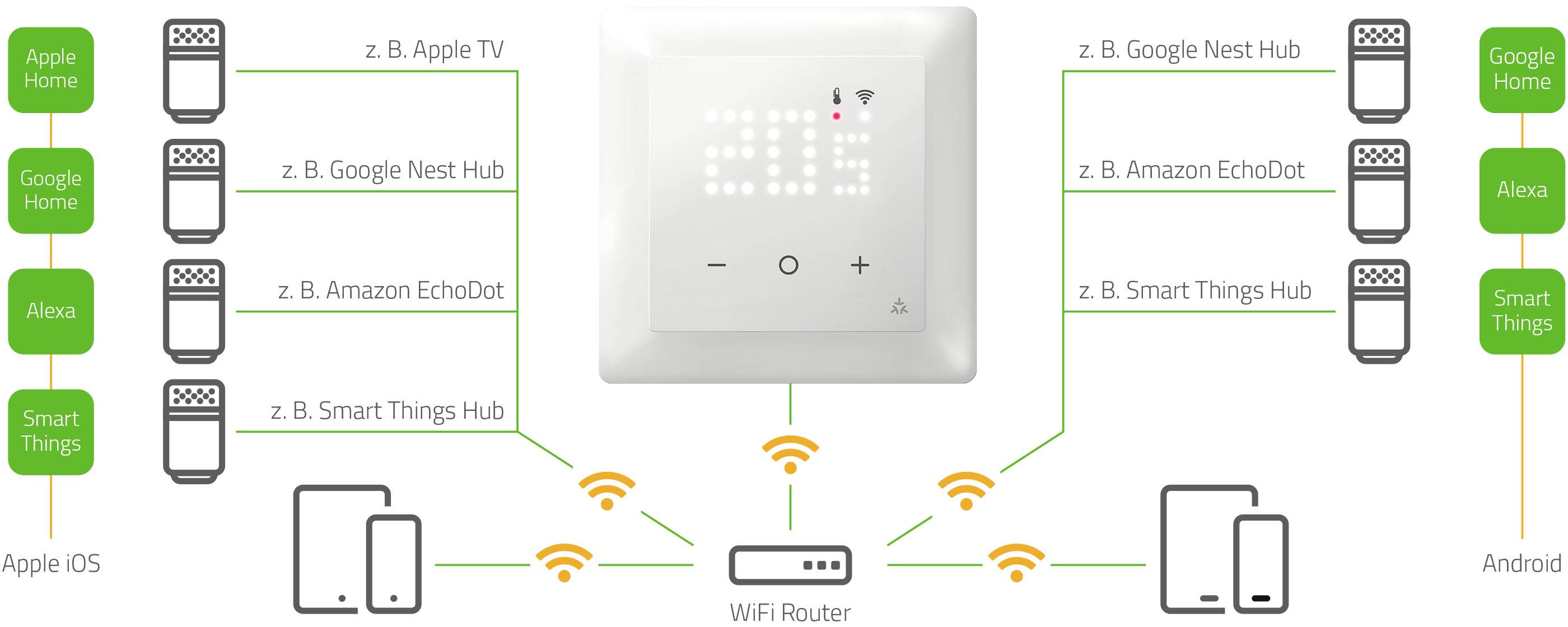

Intelligent thermostat at the centre, controlled via various smart home devices such as Apple TV, Google Nest, Amazon Echo and Smart Things.

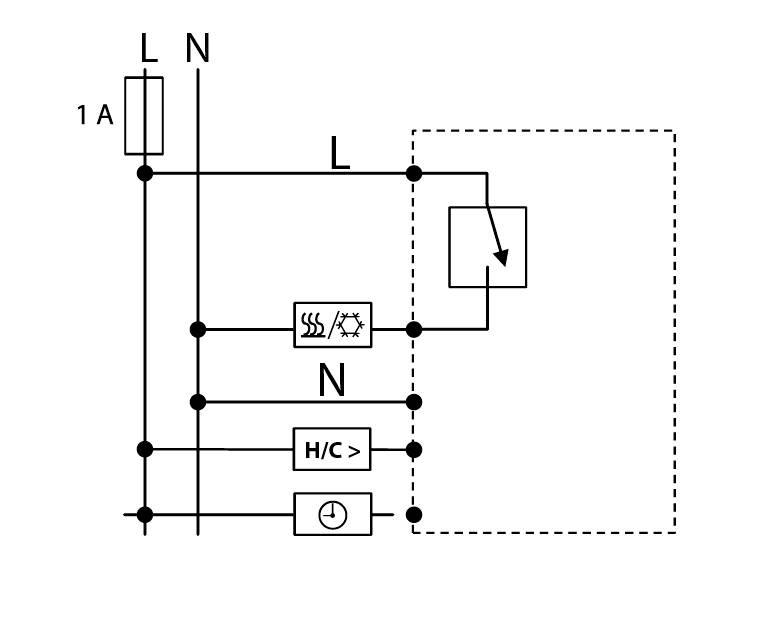

Circuit Diagram: Square box on the left labelled "1 A". Lines connect to right box with a dashed line. Symbols: Heating, Clock, Switch.

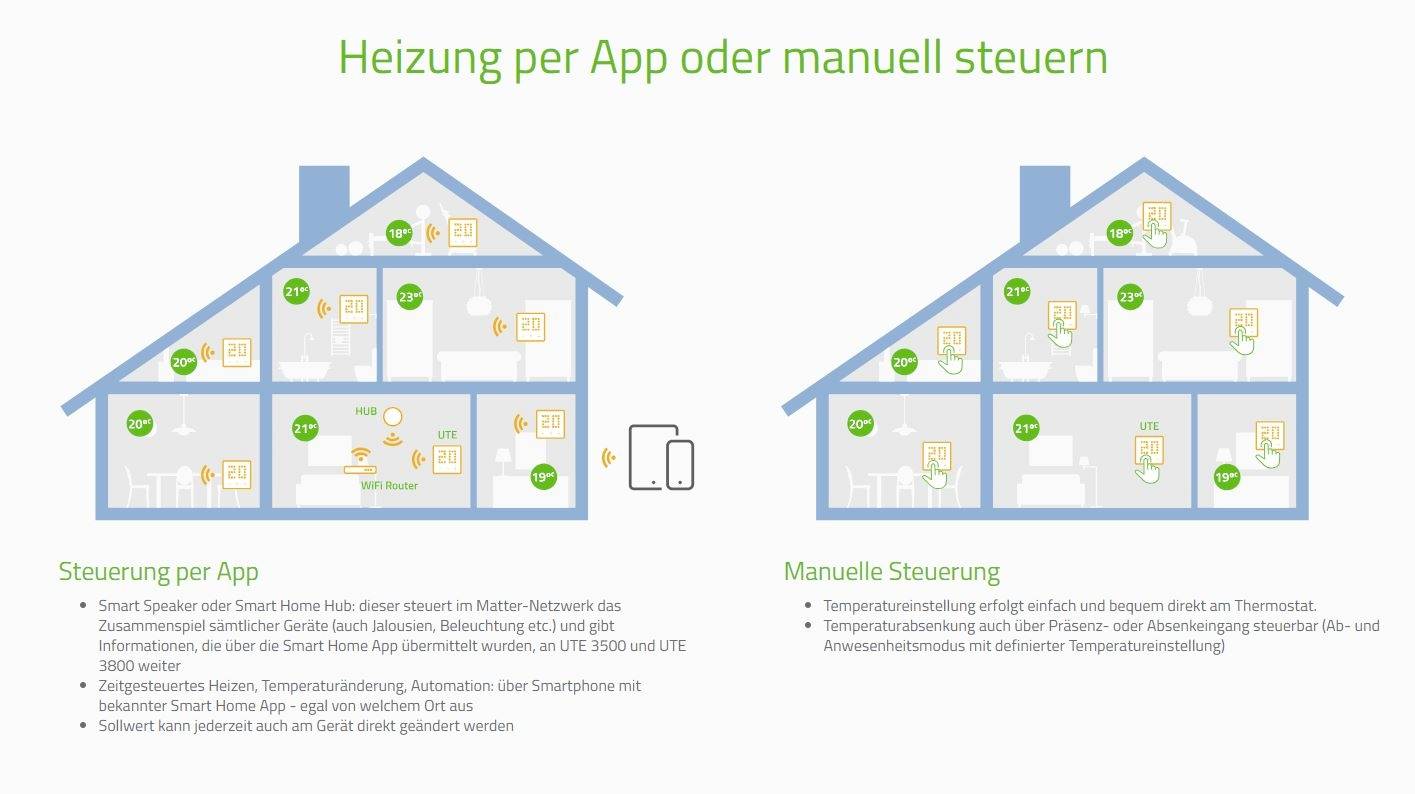

Two house diagrams show heating control: on the left via app with smart home integration, on the right manually via thermostat, with symbols in rooms.

Line diagram of an electronic wall control with dimensions: 71x55 mm from the front, depth 29 mm. Symbols for Wi-Fi and volume control.

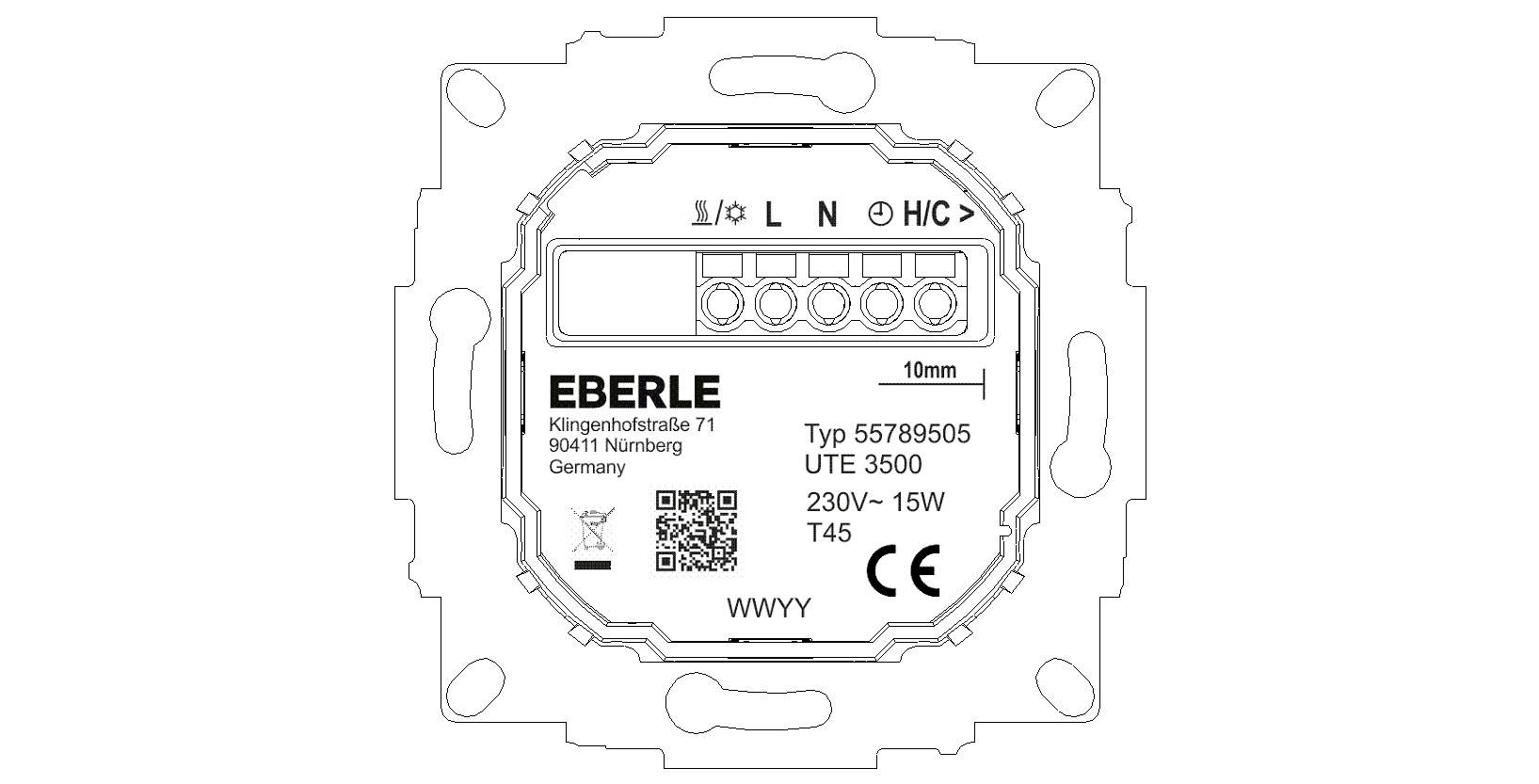

Electric wall-mounted thermostat by Eberle, model UTE 3500, suitable for 230V, 15W. Shows connections and technical details.

1/8

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 119.99 / piece)

€ 119.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Eberle UTE 3500-RAL9010-G-55 UP thermostat insert

Easy control via standard home apps and Smart speaker from Apple, Google, Samsung thanks to Mat
Smart home without additional gateway and specific APP
Installation without WiFi connection
Immediately ready to start after selecting the heating application
Time settings, temperature changes, and Smart home automation via any smartphone app. Wherever you are
Energy saving through absence mode
Ideal combined with heat pumps by automatic heating/cooling function
Suitable for all usual switching programs
LED display and intuitive operation using Touch buttons

Technical specifications

Switching current 15 W = 5 actuators à 3 W

Product type: Indoor thermostat

Operation type: electronical

Max. temperature setting: 30 °C

Temperature settings: 5 up to 30 °C

Display: Yes

Mounting type: Flush mount

Power supply (LOV): mains-powered

Operating voltage: 230 V

Nighttime drop: Yes

Factory colour: White (glossy)

Similar RAL: 9010

Width: 55 mm

Height: 55 mm

: Alexa
Google Home

Dim: (W x H) 55 mm x 55 mm

Type: Heating/cooling

Min. temperature setting: 5 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3192700 Eberle 557895054500 UTE 3500-RAL9010-G-55 Indoor thermostat Flush mount Heating/cooling 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3192700 Eberle 557895054500 UTE 3500-RAL9010-G-55 Indoor thermostat Flush mount Heating/cooling 1 pc(s)

Description

The new flush-mounted thermostat insets UTE 3500 and UTE 3800 by Eberle combine digital thermostat control with the standardized manufacturer-independent Matter WiFi-connection. Can be controlled via the known
Smart home apps from manufacturers such as Apple, Google, Amazon and Samsung offer you maximum flexibility and comfort in the best form. Completely without an additional gateway and specific thermostat app.
