econ connect 28AWG6GR Ribbon cable Contact spacing: 1.27 mm 6 x 0.08 mm² Grey 30.50 m
EAN:
Part number:
Item no:
Product type
Ribbon cable
CS
1.27 mm
No. of leads
6 x
Cross section (each core)
0.08 mm²
Content
30.50 m
Datasheet (PDF)
Quantity (Set(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 0.63
€ 19.32
3
1 M = € 0.60
€ 18.36
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 0.63)
€

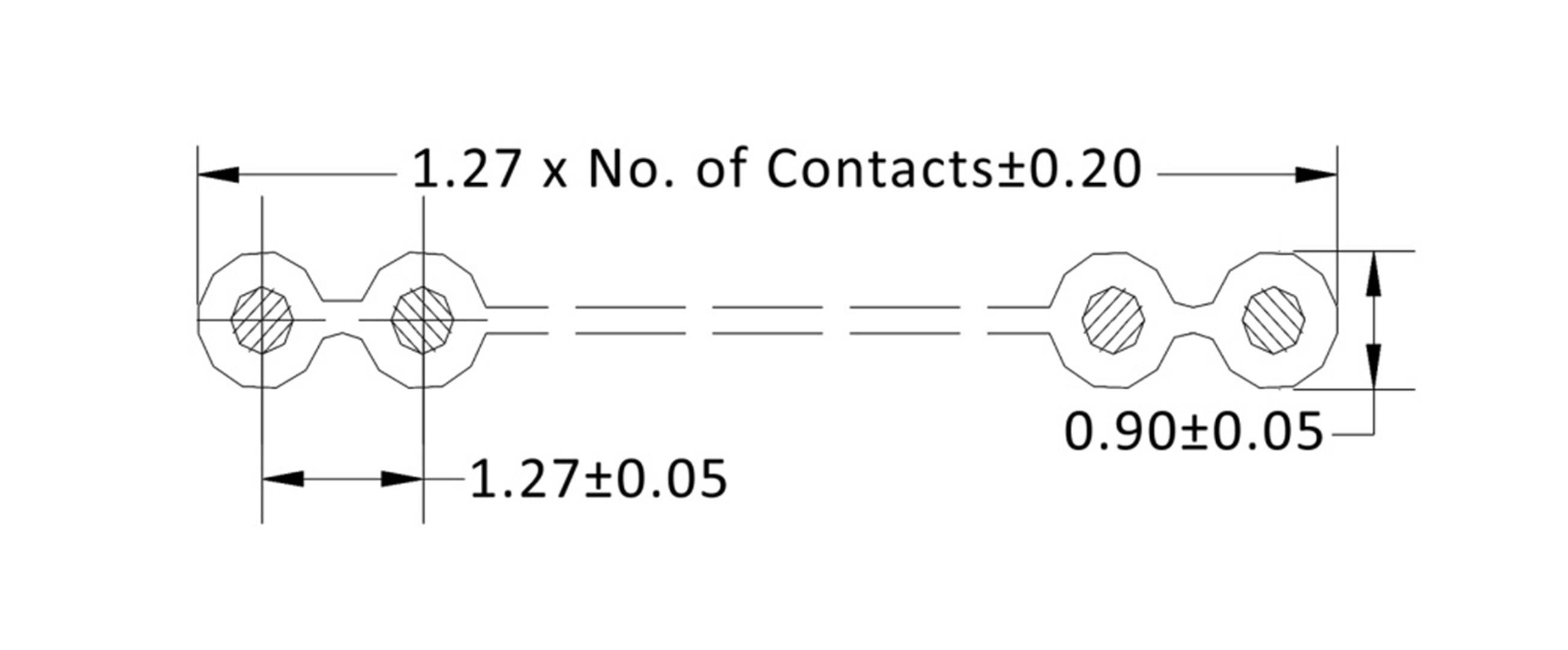

Technical specifications
- Product type
Ribbon cable
- CS
1.27 mm
- No. of leads
6 x
- Cross section (each core)
0.08 mm²
- Cross section
6 x 0.08 mm²
- Height
0.90 mm
- Factory colour
Grey
- Content
30.50 m
- Nominal voltage
300 V
- Packaged
Yes
28
- Sold per metre
No
- Insulation material
Polyvinyl chloride
- Core layout
7 x 0.125 mm
- Max. temperature range (fixed installation)
+105 °C
- Manufacturer part #
28AWG6GR
- Type
28AWG6GR
- Max. length sold by the metre
30.5 m
Documents & Downloads
Datasheet
Datasheet 1656429 econ connect 28AWG6GR Ribbon cable Contact spacing: 1.27 mm 6 x 0.08 mm² Grey 30.50 m
