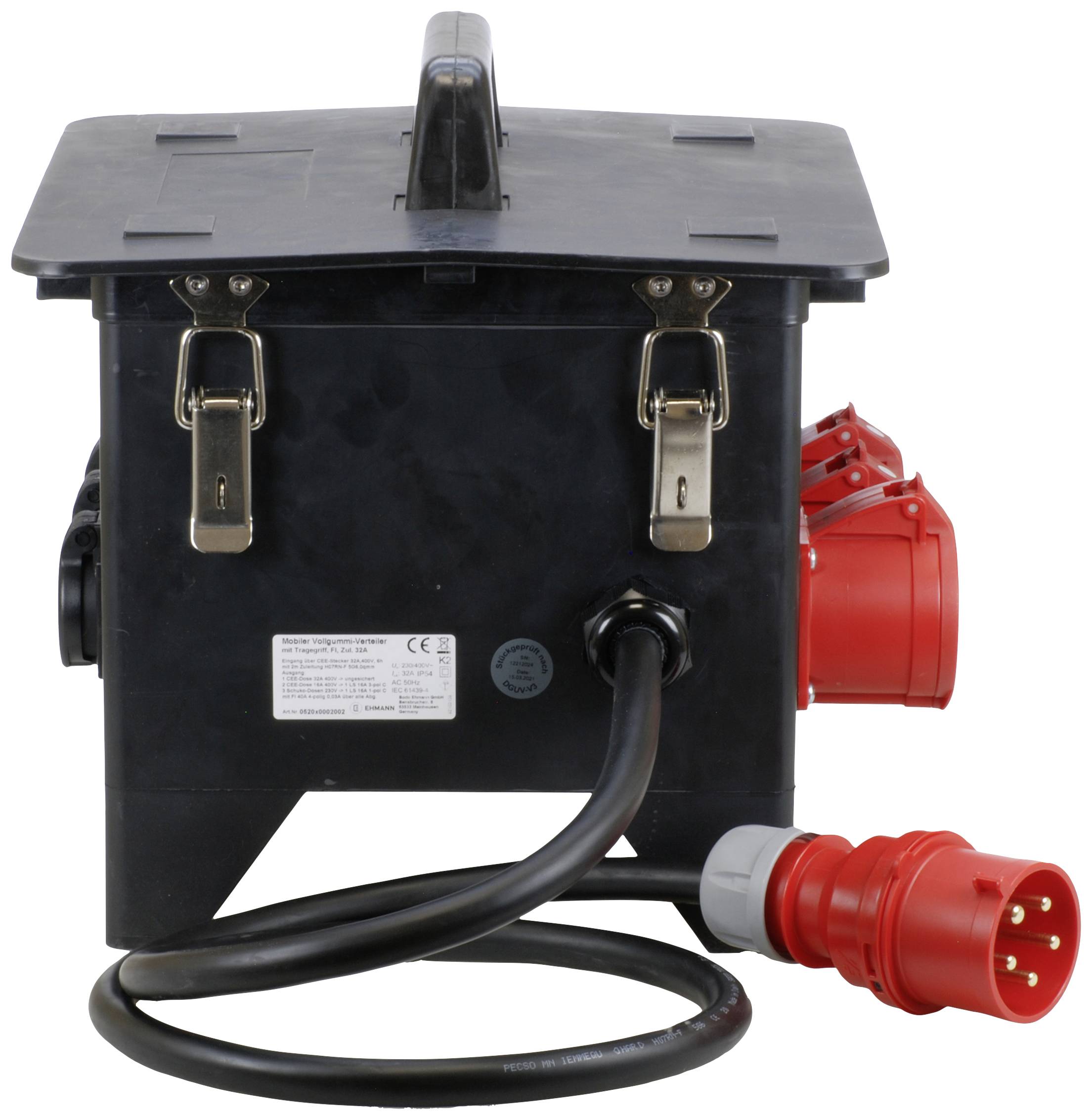

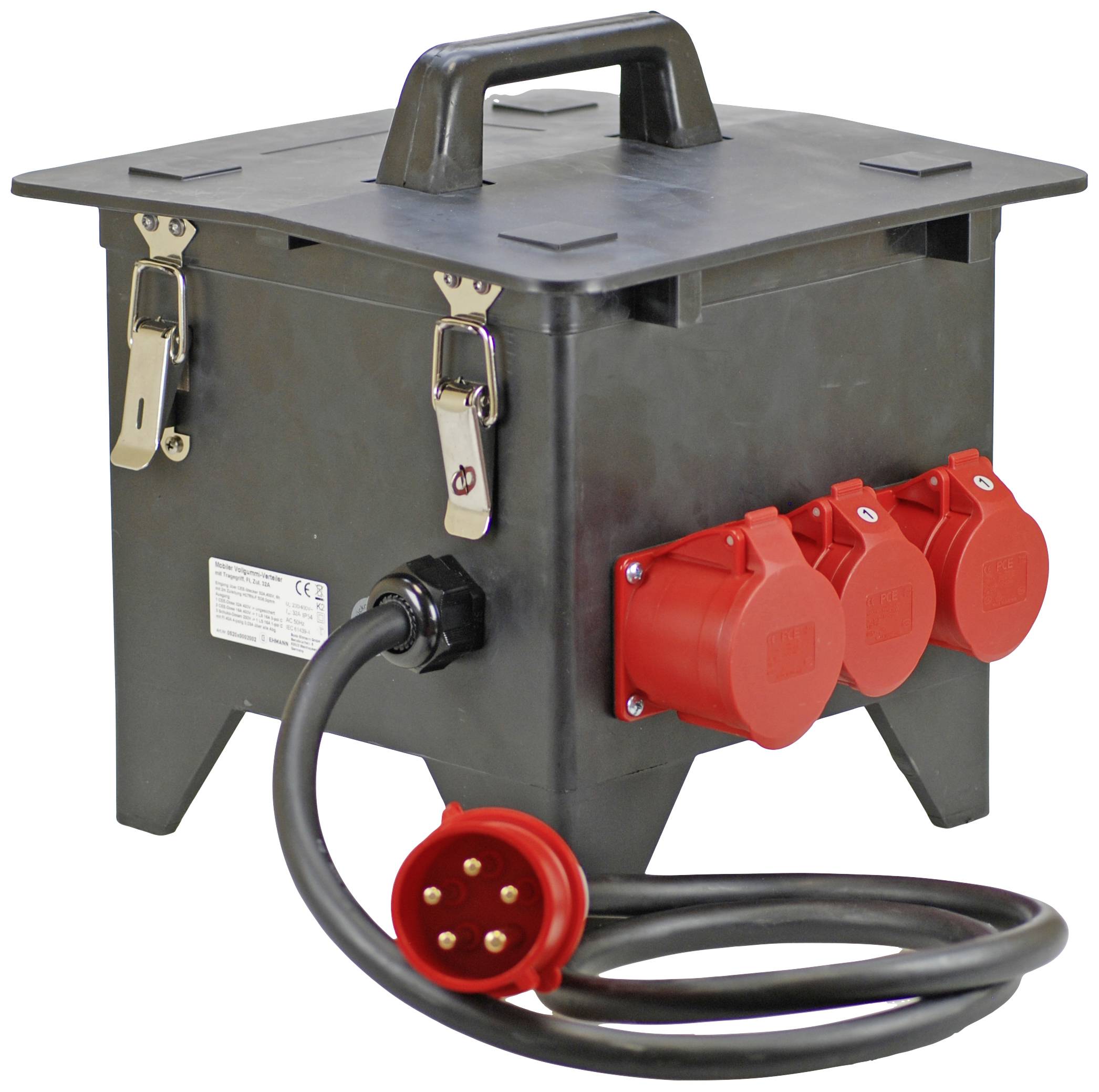

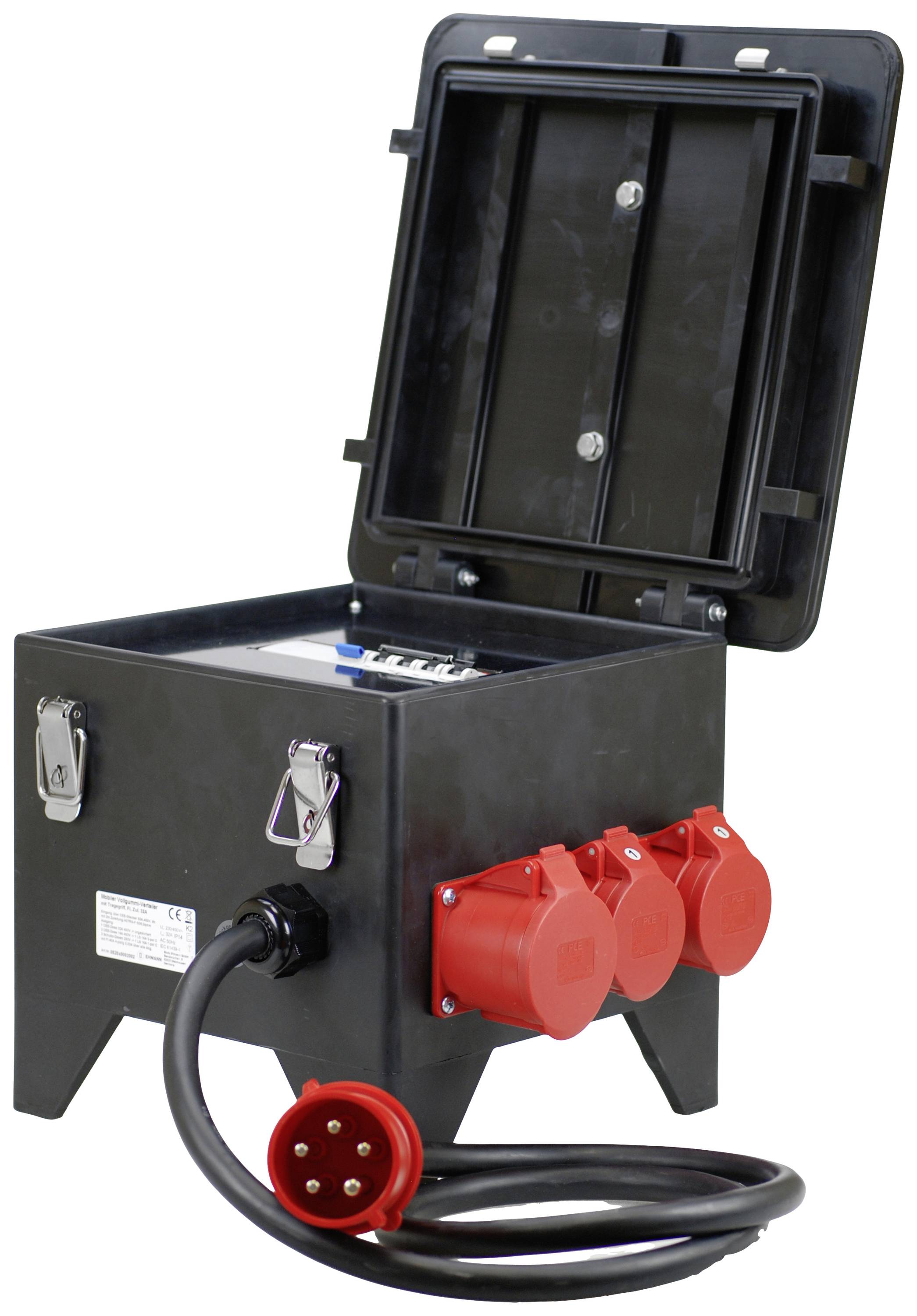

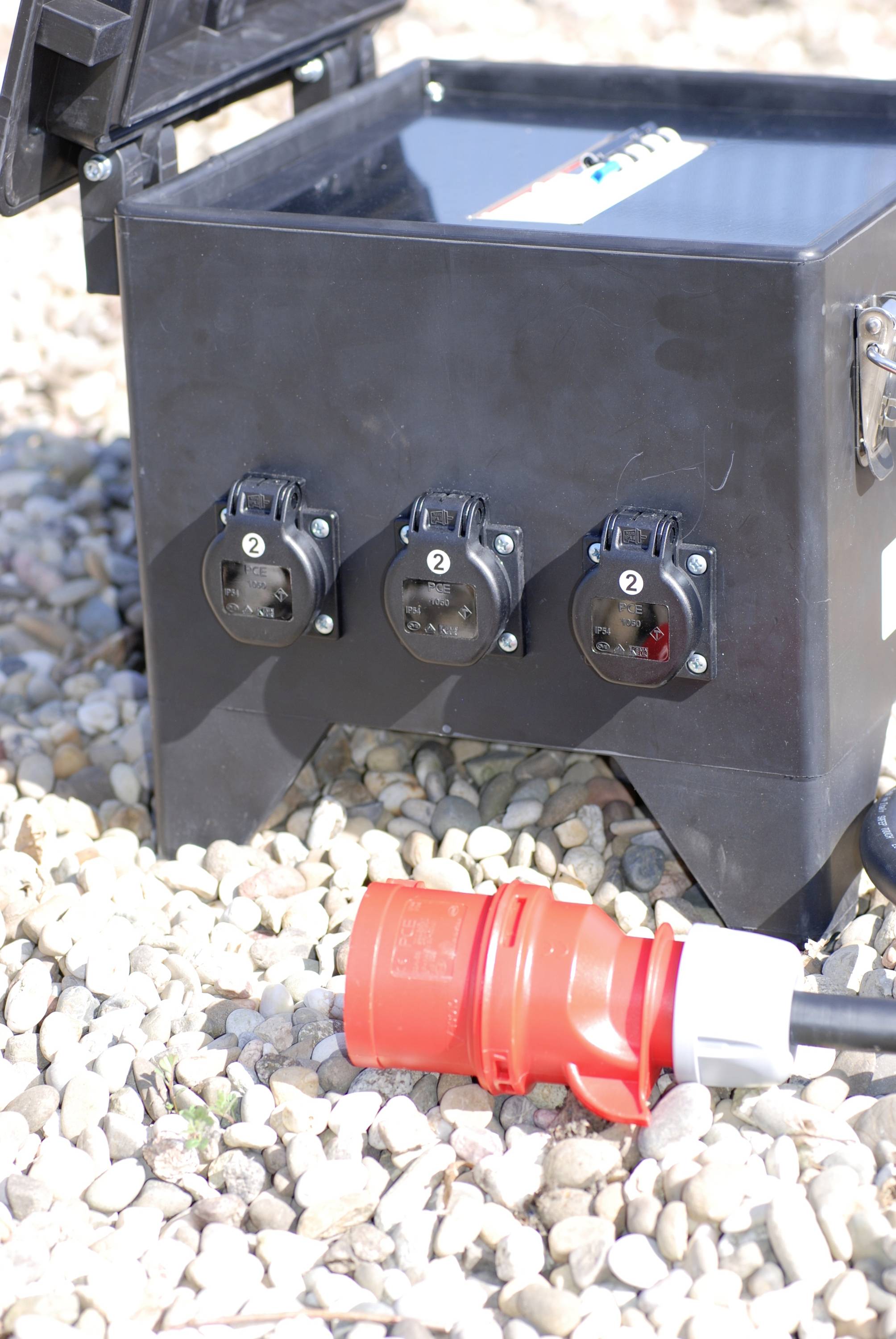

Ehmann CEE power distributor 0520x0002002 400 V 32 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 485.00 / piece)
€ 485.00
incl. VAT
14-day return policy included
Highlights & Details
Mobile solid rubber distributor with CEE supply and carrying handle
- Circuit breakerFI-Safety switchFlap lid made from impact-resistant polyamide 62 m cable with CEE plug
- This text is machine translated.
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
3
- Type A
CEE plug (5-pin, 32 A)
- Type B
CEE socket (5-pin, 32 A)
CEE socket (5-pin, 16 A)
PG socket
- No. of PG sockets
3
- Inputs
1
- Outputs
6
- Nominal input voltage
400 V
- Nominal output voltage
400 V
- Nominal input current
32 A
IP54
- Cable length
2 m
- Cable standard
H07RN-F 5G 6 mm²
- Protection
1x LS 16 A, 3-pole C; 1x LS 16A, 1-pole C; with FI switch type A 40 A, 400 V, 4-pole, 30 mA over all outputs
- Factory colour
Black
- Weight
12.34 kg
- Dim
(L x W x H) 343 x 343 x 354 mm
- Length
343 mm
- Width
343 mm
- Height
354 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 32 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2754764 Ehmann CEE power distributor 0520x0002002 400 V 32 A
User & Safety Instructions
User & Safety Instructions 2754764 Ehmann CEE power distributor 0520x0002002 400 V 32 A
Description
Features
- Modular DIN rails, such as circuit breakers, circuit breakers under fold-out coverSockets with self-closing hinged lids made from impact-resistant polyamide 62 m feed line H07RN-F 5G 6,0QMM with CEE plug 32A, 400V, 5-pin, 6h
Hints
Optionally with lockable cover clamp
