Name: Elektrobock 163 HD13 Thermostitc radiator valve electronical 3 up to 40 °C
Brand: Elektrobock
SKU: 2705394
Availability: SoldOut

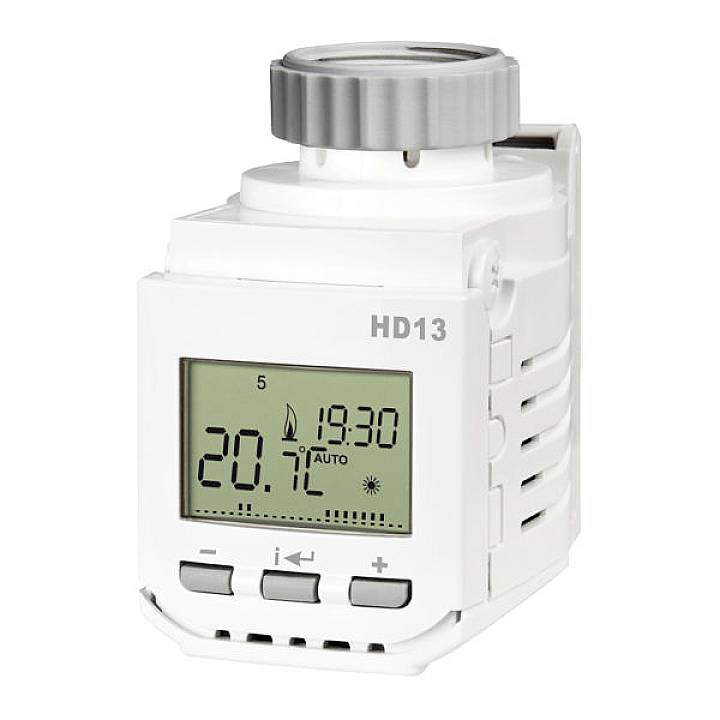

Digital radiator thermostat with display showing temperature of 20.7 degrees Celsius and additional symbols for settings and operating modes.

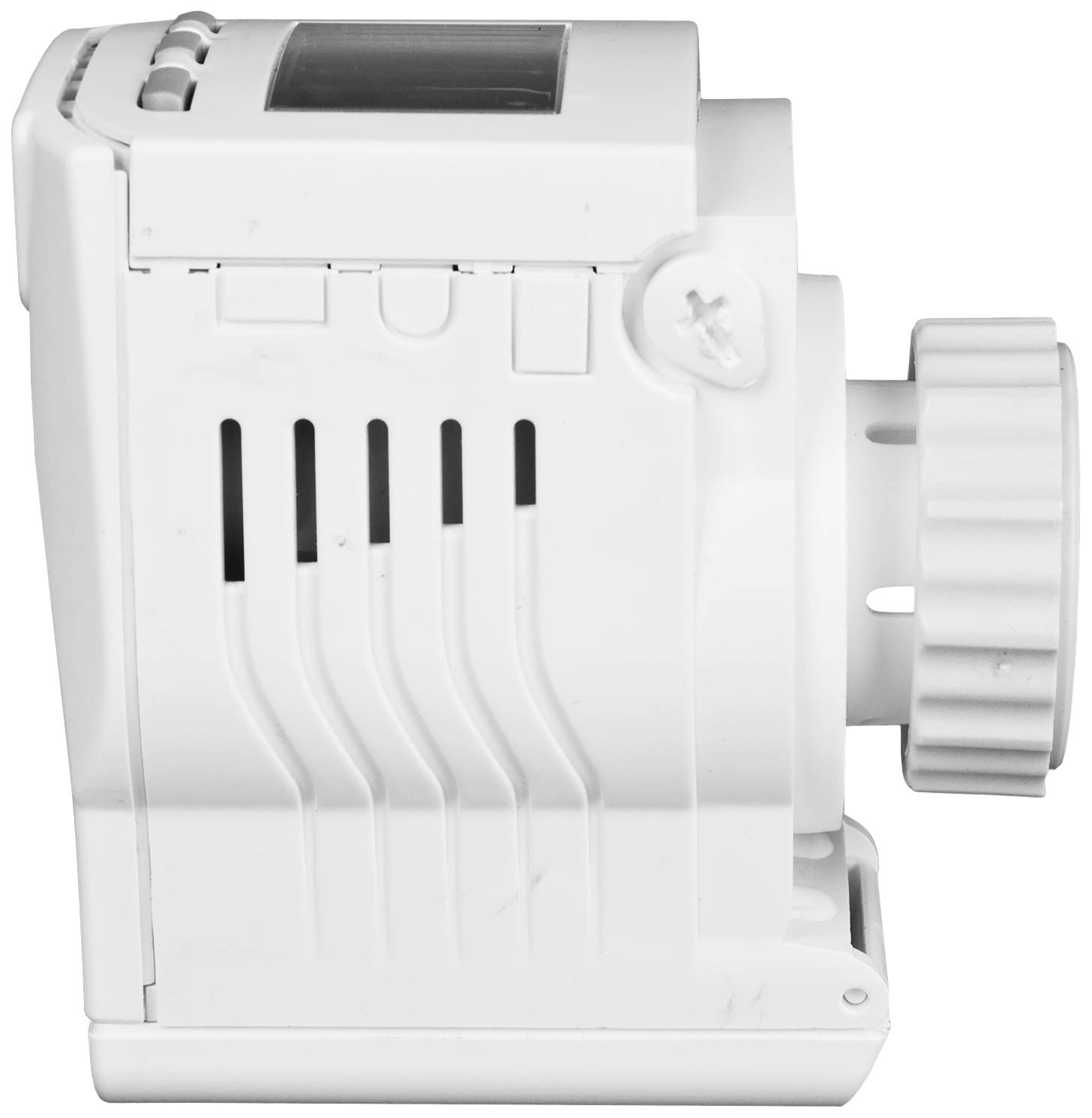

A white heating valve with a digital display and a rotary knob visible from the side, presumably for temperature control.

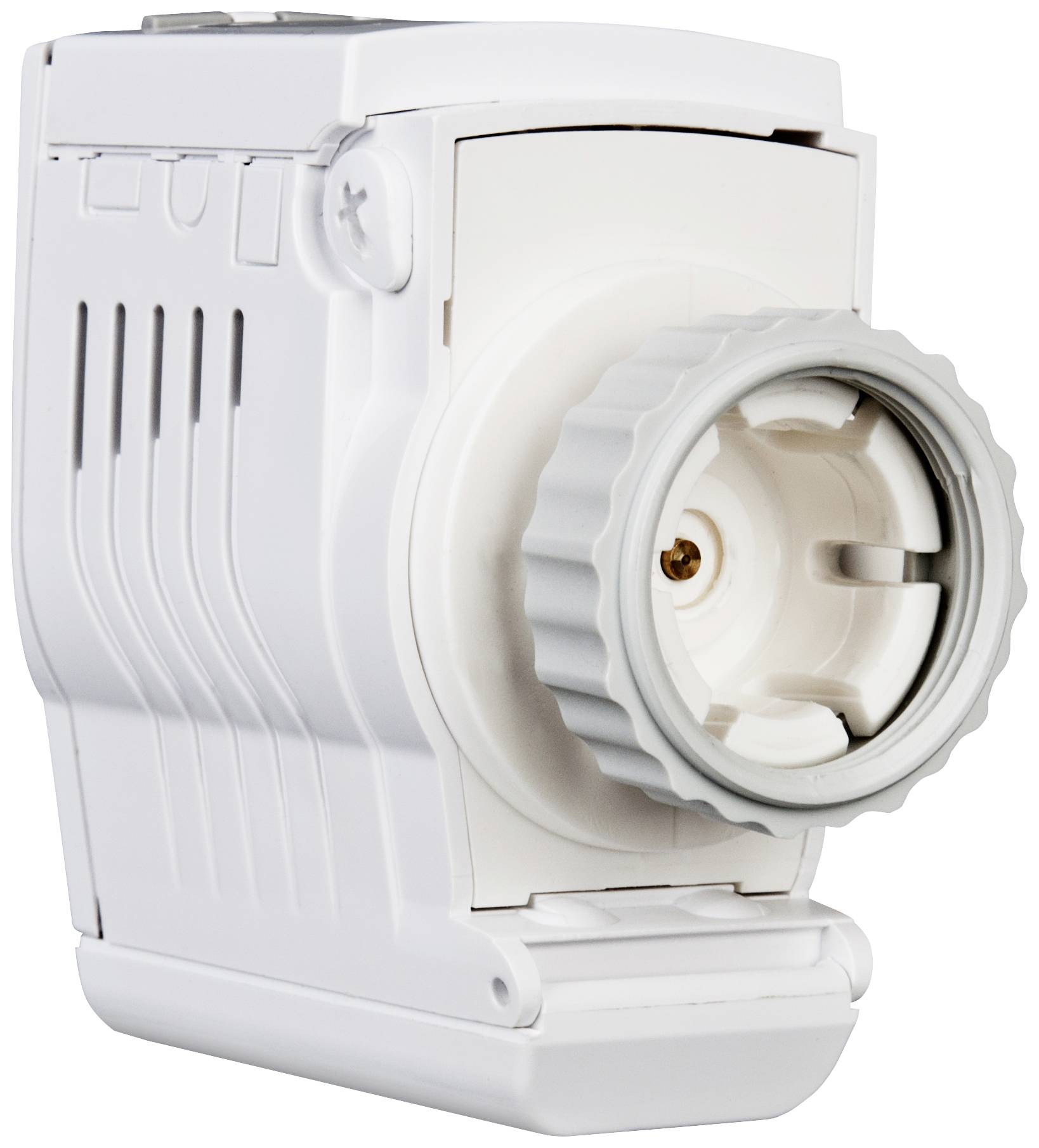

A white mechanical time switch with a grey rotary control, for setting the on and off times of electrical devices.

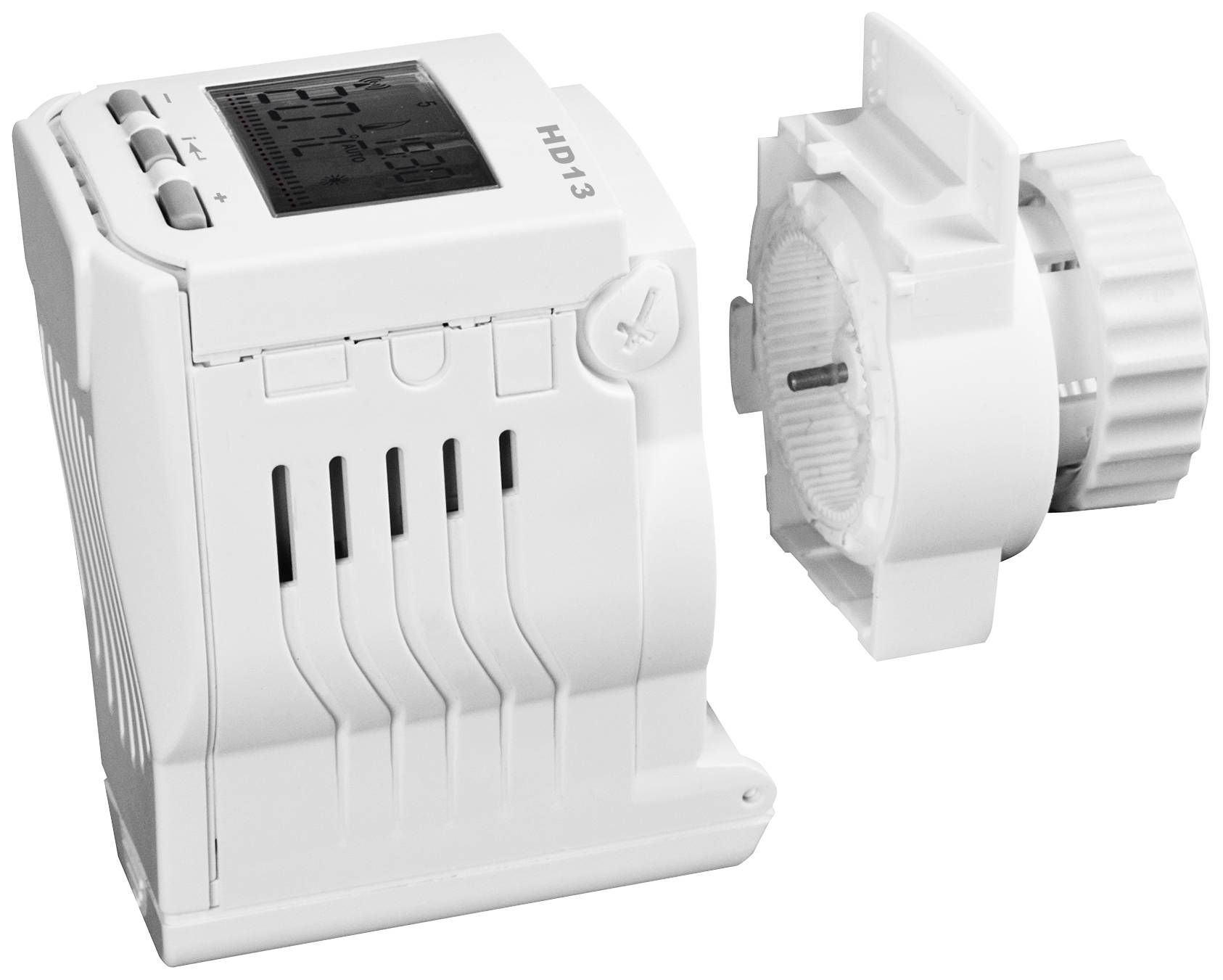

A digital thermostat with removable components. Displays temperature on a screen. Primarily used in heating systems.

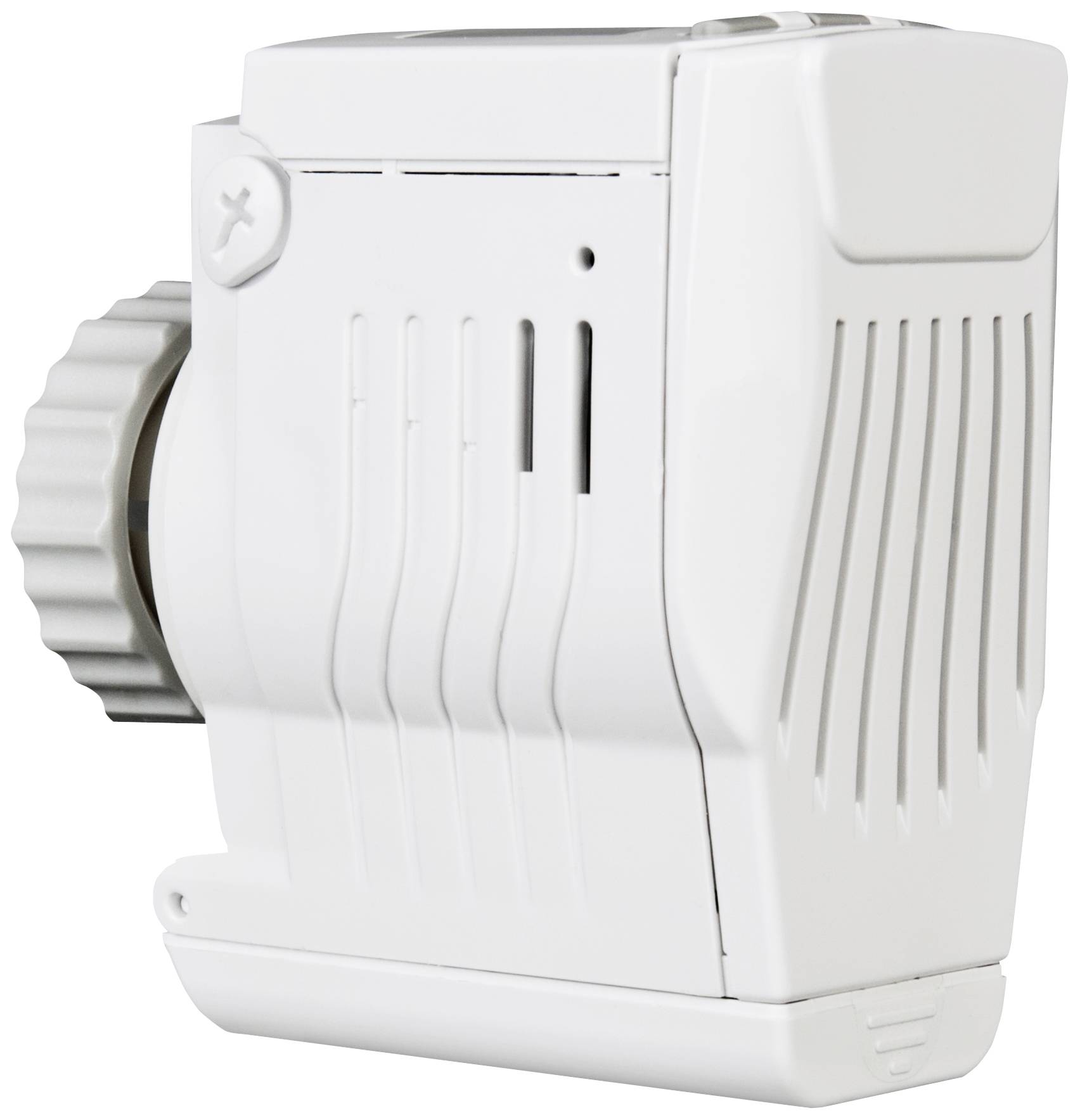

White, rectangular radiator thermostat with a rotary control dial and ventilation slots on the side.

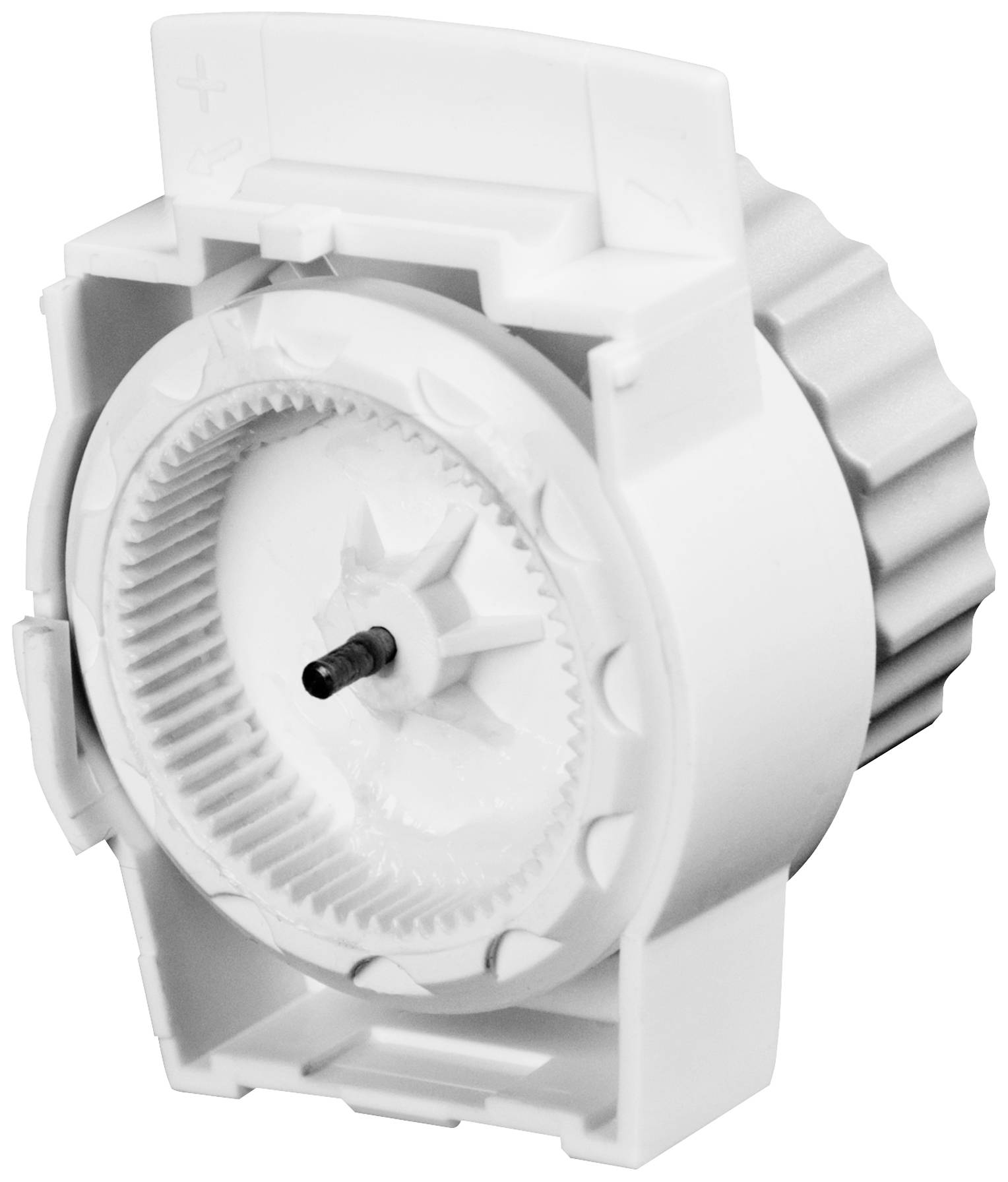

White plastic gear wheel in a protective casing with a protruding metal axle, demonstrating technical mechanics.

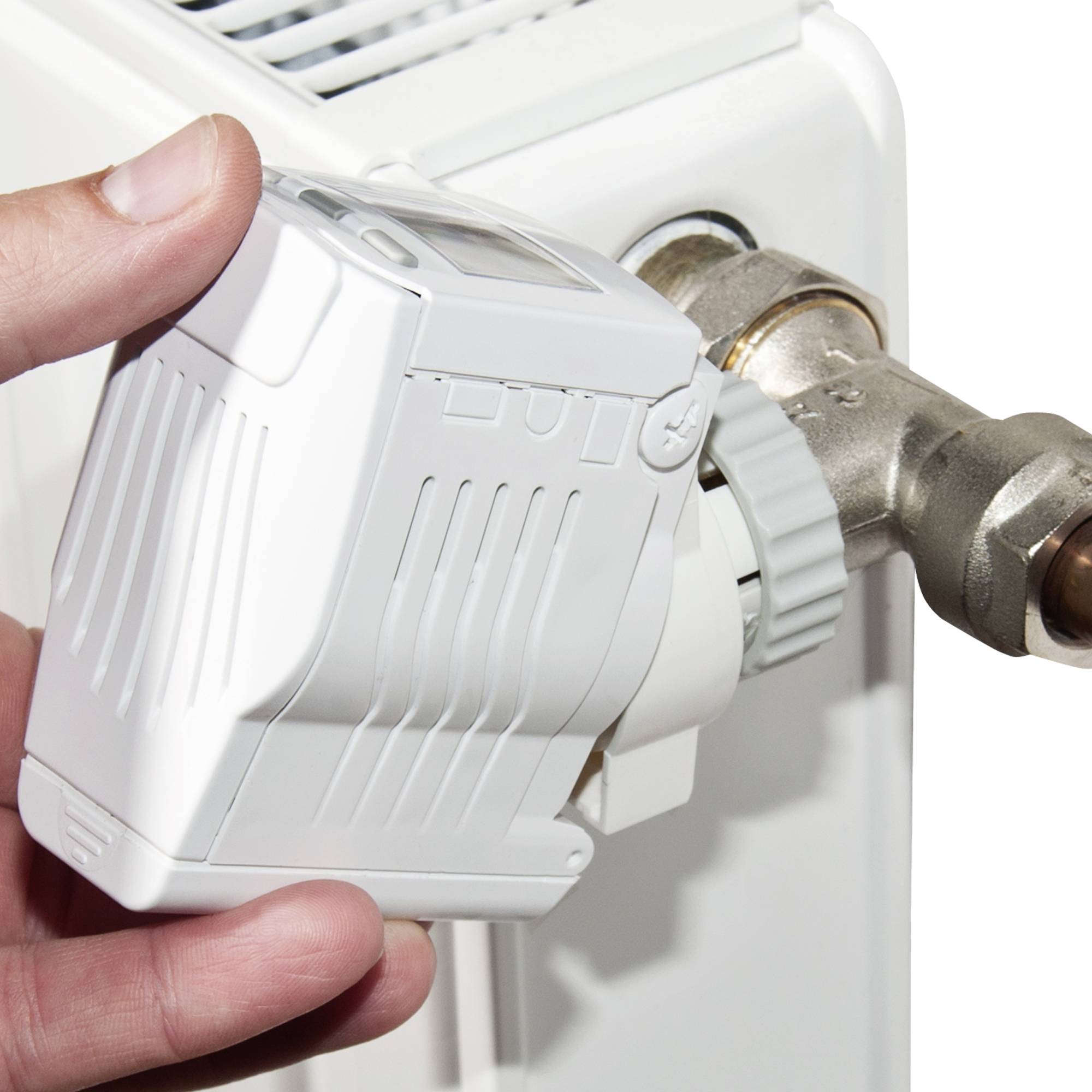

A person adjusts the radiator thermostat. Manual temperature regulation by turning the control dial.

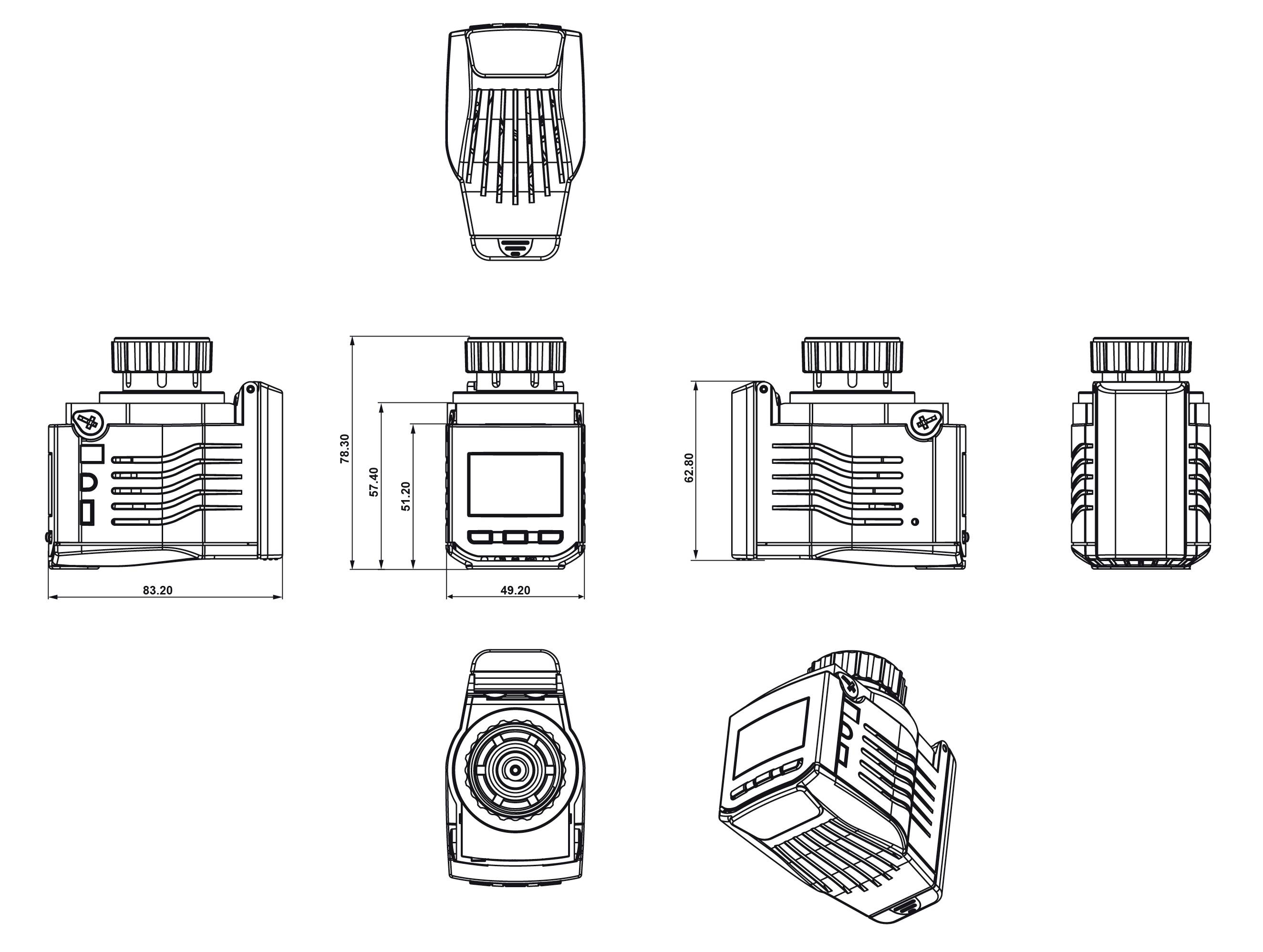

Technical drawing of an electronic device with multiple views and dimensions, showing detailed design and measurements, e.g. 93.20 mm width.

1/8

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 25.99 / piece)

€ 25.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Elektrobock HD13 thermostatic radiator valve

Weekly program (8 time periods and 2 temperature values for each day)Large, clear displayBoost function

Technical specifications

Power supply 2 x AA size AA

Product type: Thermostitc radiator valve

Operation type: electronical

Min. temperature setting: 3 °C

Max. temperature setting: 40 °C

Switching cycle: 7 day mode

No. of daily switching programs: 8

Compatible with: Heaters

Frost protection: Yes

Factory colour: White

Height: 49.2 mm

Depth: 78.3 mm

Width: 83.2 mm

Dim: (W x H x D) 83.2 x 49.2 x 78.3 mm

Connections (home appliances): M30 x 1.5

Content: 1 pc(s)

Temperature settings: 3 up to 40 °C

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2705394 Elektrobock 163 HD13 Thermostitc radiator valve electronical 3 up to 40 °C

Description

The smallest and very quiet head for radiators with new design and a clear display. Enables the setting of a weekly program (8 time periods and 2 temperature values for each day). Use of the continuous control and other functions, which contribute to higher energy saving.

This text is machine translated.

Features

Large, clear display shows also valve position, room temperature and adjustment temperatureAutomatic adjustment according to the valve connectionA different temperature program every day2 temperature levelsInformation about the current heating programDisplays valve opening %Automatic limescale protection for the valveAutomatic valve locking in case of a sudden drop in the room temperature (open window)Frost protectionSimple operation and programmingPossibility of a short-term temperature change or function BOOSTAutomatic time change SUMMER/WINTER TIMEBattery charging status displayTemperature control according to 0.5 °C.

Scope of delivery

Thermostatic Radiator Valve
2 x batteries
User manual.

System requirements

HD13 are intended for mounting standard valves with thread M30x1.5mm.

Description

Features

Large, clear display shows also valve position, room temperature and adjustment temperatureAutomatic adjustment according to the valve connectionA different temperature program every day2 temperature levelsInformation about the current heating programDisplays valve opening %Automatic limescale protection for the valveAutomatic valve locking in case of a sudden drop in the room temperature (open window)Frost protectionSimple operation and programmingPossibility of a short-term temperature change or function BOOSTAutomatic time change SUMMER/WINTER TIMEBattery charging status displayTemperature control according to 0.5 °C.
