Emko ESD-9950-N Bang-bang, P, PI, PD, PID Temperature controller -200 up to 1700 °C (L x W x H) 110 x 96 x 96 mm

'EMKO ESD-9950-N' temperature controller with red LED display showing '125.0'. Control knob located centrally below.

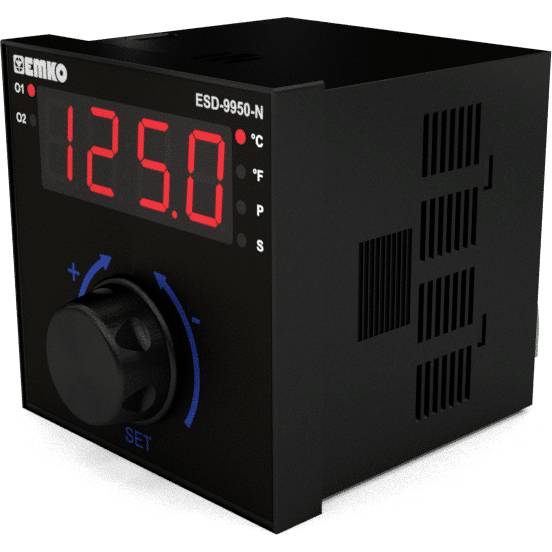

A digital temperature controller with a black casing displays '125.0' degrees Celsius on a red display. There is an adjustment dial with the inscription 'SET' underneath.

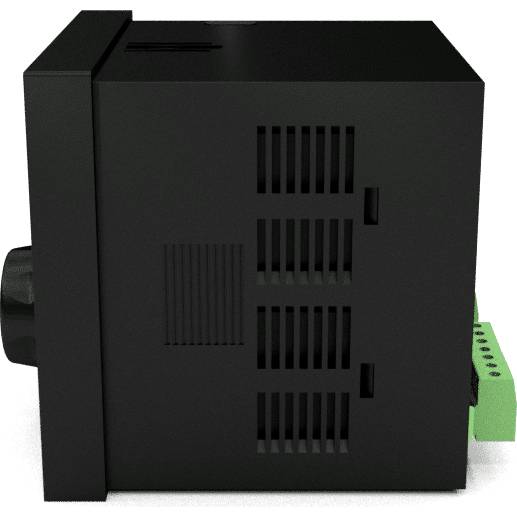

A black, rectangular electronic device with side ventilation slots and green connection terminals on the right side.

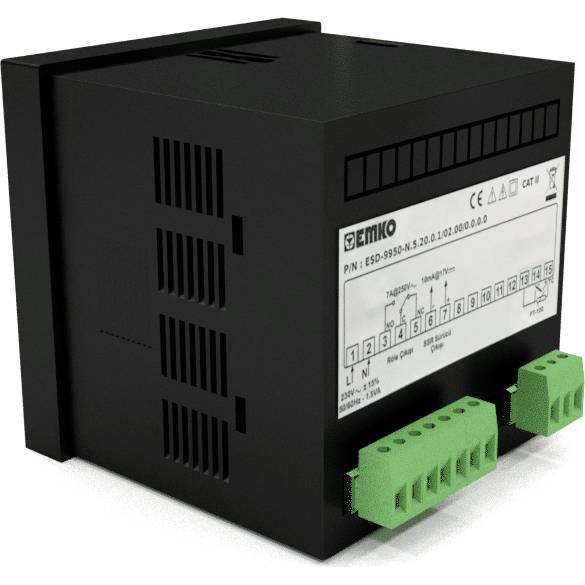

Black electrical control unit by EMKO with terminal connections at the bottom, suitable for industrial applications and panel mounting.
A black electronic device with green connection terminals and various technical specifications on a white label.

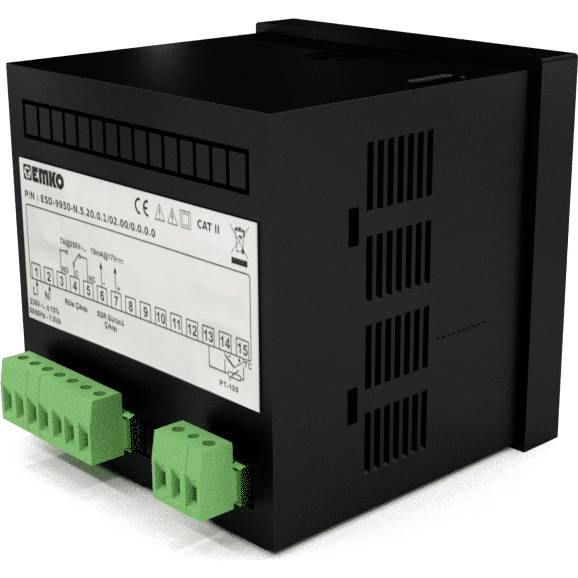

A black electronic device with connection terminals and a label displaying technical specifications.

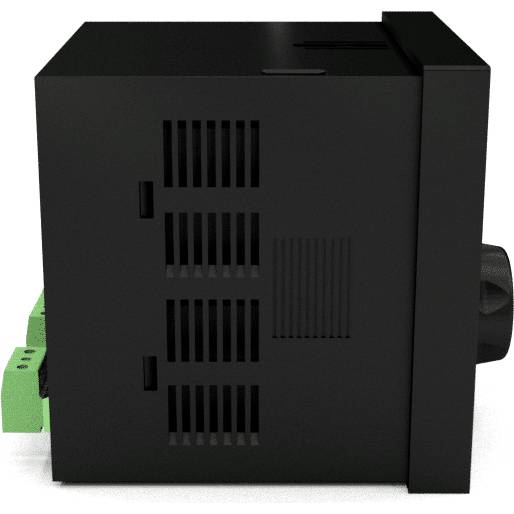

Black electronic device with ventilation slots on the side. Green connectors are visible on the left.

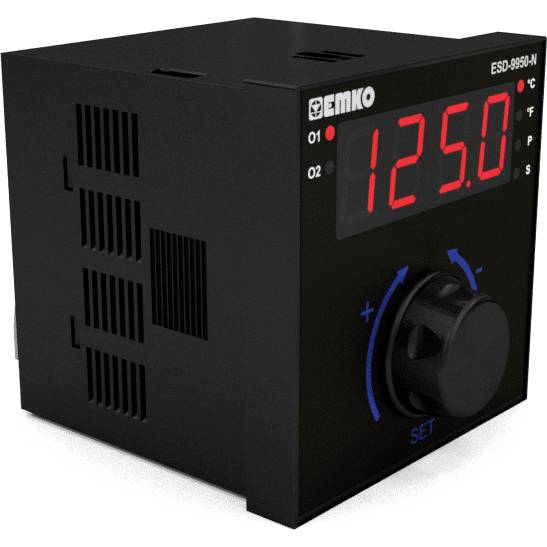

Digital temperature control device with digital display, showing '125.0', rotary knob underneath for adjustment, black casing.
1/8
Product type
Temperature controller
Thermostat type
Bang-bang, P, PI, PD, PID
Operating voltage
230 V
Max. temperature reading
1700 °C
Type
ESD-9950-N
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Fri 6 Nov
7 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 129.99 / piece)
€ 129.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 7 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Themostats

  • Universal sensor input
  • Password protection

Technical specifications

  • Digit height: 16 mm
  • 4-digit LED display
  • Sensor input: Type J, K, R, S, or Pt100 (2- and 3-wire)
  • Accuracy ± 0.25%
Product type

Temperature controller

Type

ESD-9950-N

Thermostat type

Bang-bang, P, PI, PD, PID

Operating voltage

230 V

Reading range

-200 up to 1700 °C

Max. temperature reading

1700 °C

Min. temperature reading

-200 °C

Dim

(L x W x H) 110 x 96 x 96 mm

Factory colour

Black

Height

96 mm

Length

110 mm

Width

96 mm

IP65 (on front)

IP20 (back panel)

Manufacturer part #

100942

Weight

350 g

Documents & Downloads

Datasheet

Datasheet 1717656 Emko ESD-9950-N Bang-bang, P, PI, PD, PID Temperature controller -200 up to 1700 °C (L x W x H) 110 x 96 x 96 mm

User & Safety Instructions

User & Safety Instructions 1717656 Emko ESD-9950-N Bang-bang, P, PI, PD, PID Temperature controller -200 up to 1700 °C (L x W x H) 110 x 96 x 96 mm

Description

EMKO ESD-9950-N. 5.20. 0.1/02. 00/0.0.0.0 is a temperature controller with a dial, which by simple operation and good readability of the temperature display. The dial is used in addition to adjusting the temperature set point can also be used as control center to the settings. By pressing the rotary control is the menu opens and the settings. With the universal sensor input for thermocouples and resistance thermometers can almost all popular types of sensors can be connected. The connected sensor type is simply placed in the settings selected.
