Name: Emko ESM-1510-N Bang-bang Temperature controller PTC -50 up to 150 °C 10 A relay (L x W x H) 61.2 x 35 x 90 mm
Brand: Emko
SKU: 2589104
Availability: InStock

The image shows a digital temperature controller with a red LED display reading '28.6 °C'. Buttons for input and control are visible.

A temperature controller with a digital display shows '28.6°C'. Device identification: ESM-1510N. Control buttons located at the bottom of the device.

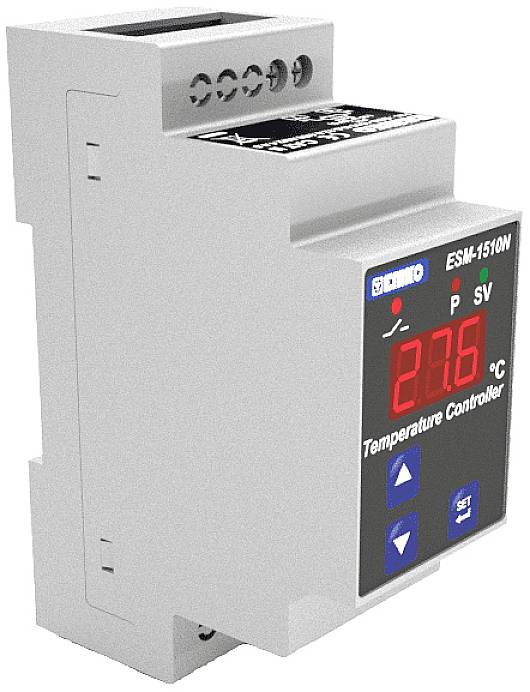

An electronic temperature controller displays '27.6 °C'. Buttons for settings and indication of operating states are visible.

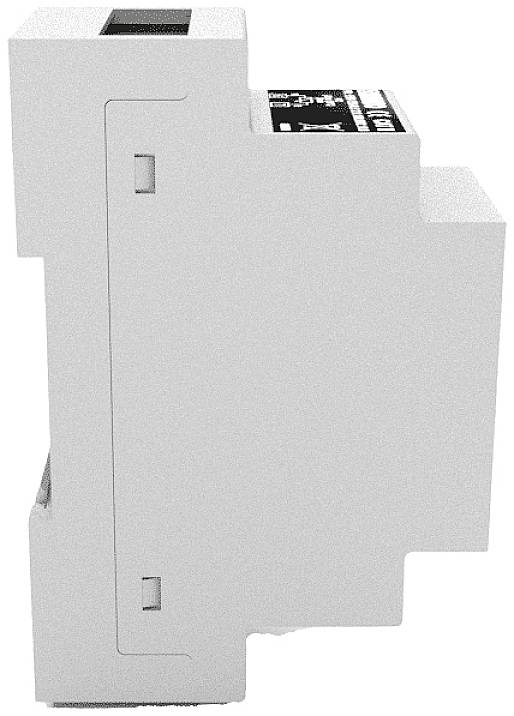

A white electronic device standing vertically. It has connections and labelling on the top surface, likely a relay module.

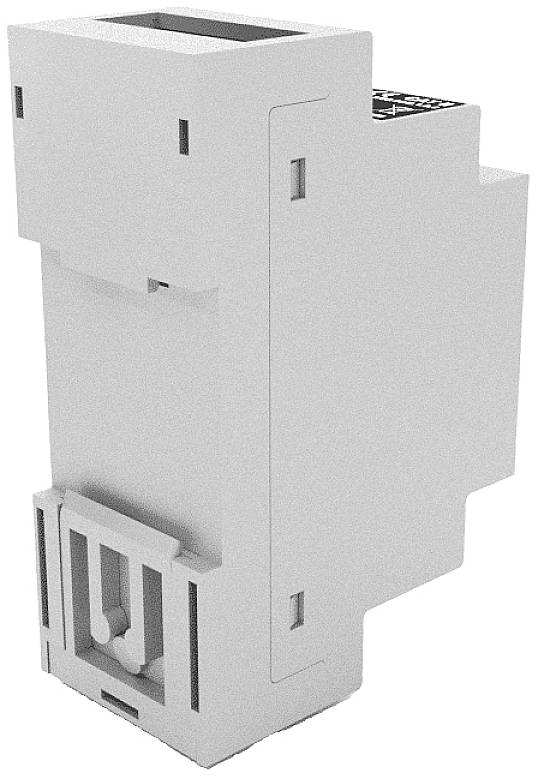

A white electric DIN rail enclosure designed for housing electronic modules, set against a neutral background.

A grey, cuboid coffee machine with a container on top and an opening below for coffee cups.

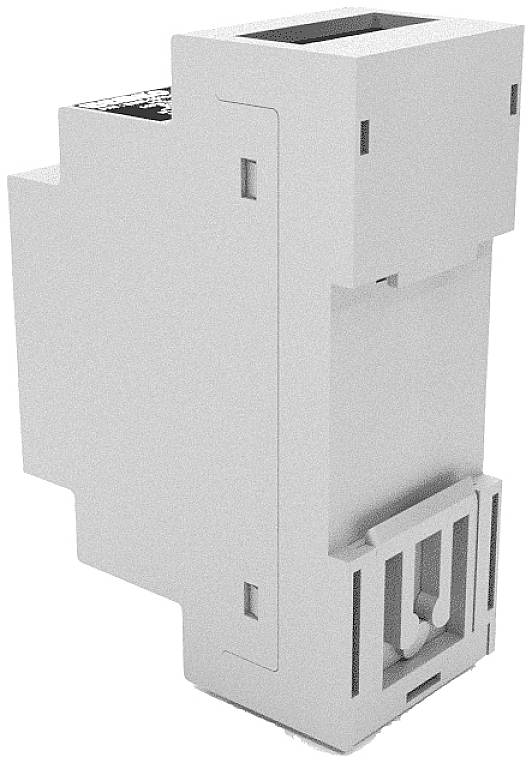

A grey electrical component (enclosure) with a simple, block-like form, suitable for mounting on a DIN rail.

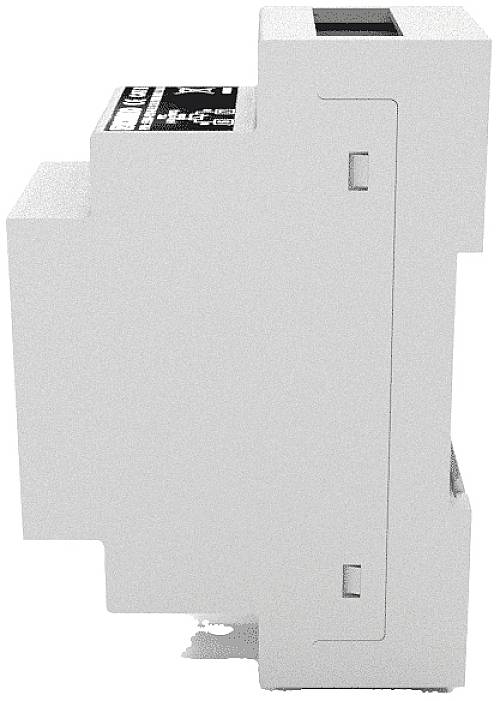

A white electrical switching device with a rectangular shape, viewed from the side, displays switches and technical symbols on its top surface.

1/8

Product type

Temperature controller

Thermostat type

Bang-bang

Operating voltage

24 V DC

24 V AC

Max. temperature reading

150 °C

Outputs (thermostats)

10 A relay

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

9 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 81.99 / piece)

€ 81.99

incl. VAT

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Temperature controller with heating and cooling function for mounting on DIN rail

3-digit display2-point temperature controlHeating or cooling function can be selectedHysteresisAdjustable temperature offset valuesAdjustable minimum and maximum setpointsFunction can be set to on, off or cyclic in the event of a sensor failureCompressor protection through adjustable pause timesPassword protection for program settings

Technical specifications

Product type: Temperature controller

Type: ESM-1510-N

Thermostat type: Bang-bang

Operating voltage: 24 V DC
24 V AC

Reading range: -50 up to 150 °C

Max. temperature reading: 150 °C

Min. temperature reading: -50 °C

Outputs (thermostats): 10 A relay

No. of relay outputs: 1

Dim: (L x W x H) 61.2 x 35 x 90 mm

Factory colour: White

Height: 90 mm

Length: 61.2 mm

Width: 35 mm

: IP20

Sensor type: PTC

Manufacturer part #: ESM-1510-N.2.12.0.1/00.00/2.0.0.0

Mounting type: DIN rail

Sensor type: PTC

Weight: 140 g
